| Re: [kura-dev] Kura and mToolkit |
I just tried it. Installed both features. But I do get an error dialog: "NullPointerException". No details though.On Tue, Oct 11, 2016 at 8:01 AM, Scott Lewis <slewis@xxxxxxxxxxxxx> wrote:Hi Jens,
If you want to try out the Eclipse UI for the remote IBundleManager:
1) Install the ECF SDK for Eclipse feature from ECF 3.13.2 [1]
2) Add the following install site: Name: ECF Kuratest UI URL: http://download.eclipse.org/rt/ecf/kuratest/ui
3) Install both features in this repo: ECF Remote Management API and ECF Remote Management Eclipse Consumer
Once Eclipse is restarted, Window->Show View->Other...->Remote Services->Remote OSGi Bundles
Once the view is open (and assuming the Karaf instance is also running on localhost), click on the green + in the upper right of the Remote OSGi Bundles view, and leave defaults: localhost:3939

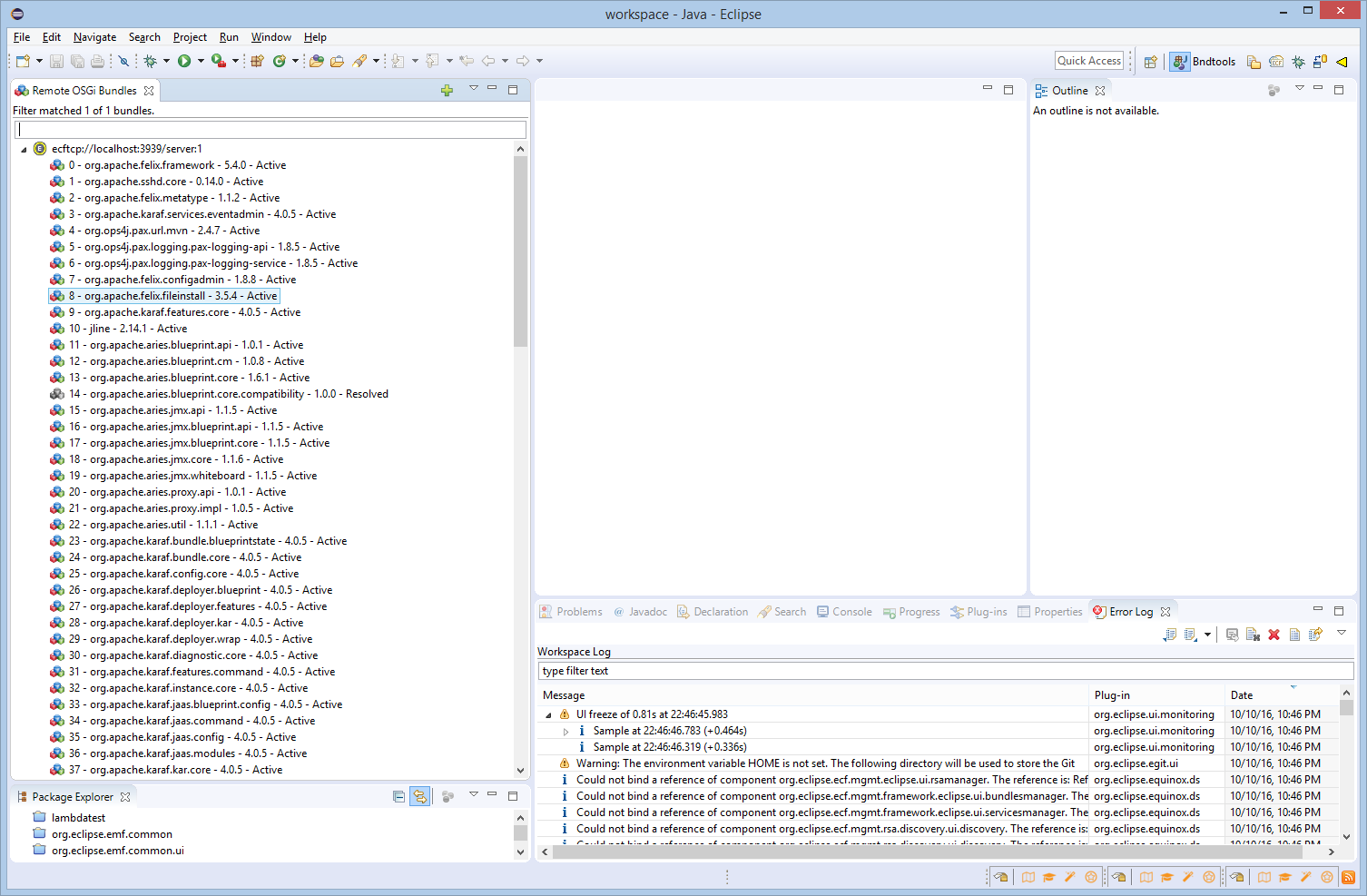

And the Karaf bundles should appear...e.g below.
On 10/10/2016 1:54 AM, Jens Reimann wrote:
That worked like a charm:While the installation of the bundlemgr feature ran a lot of bundles did get restarted though. I am not sure why:
karaf@root()> feature:repo-add http://download.eclipse.org/rt/ecf/kuratest/karaf4-features. xml
Adding feature url http://download.eclipse.org/rt/ecf/kuratest/karaf4-features. xml
karaf@root()> feature:install ecf-kura-karaf-bundlemgr
---
…
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.eclipse. kura.core_1.0.9.201609080833 [94]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.eclipse. kura.core.status_1.0.2. 201610060910 [99]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.eclipse. kura.core.crypto_1.0.5. 201610060910 [97]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.eclipse. kura.core.configuration_1.0.9. 201610060910 [96]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.eclipse. kura.emulator.net_1.0.2. 201610060910 [104]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.eclipse. kura.emulator.gpio_1.0.2. 201610060910 [103]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.eclipse. kura.emulator.clock_1.0.1. 201610060910 [102]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.ops4j.pax. web.pax-web-spi_4.2.6 [113]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.ops4j.pax. web.pax-web-api_4.2.6 [110]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.apache.karaf .webconsole.instance_4.0.5 [62]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.apache.karaf .webconsole.gogo_4.0.5 [60]]
fireBundleChangedEvent event=org.osgi.framework.BundleEvent[source=org.apache.karaf .webconsole.features_4.0.5 [59]]
…
---
On Mon, Oct 10, 2016 at 5:07 AM, Scott Lewis <slewis@xxxxxxxxxxxxx> wrote:--
______________________________Hi Jens,
I've created a Karaf feature for the ECF Bundle Manager here:
http://download.eclipse.org/rt/ecf/kuratest/karaf4-features. xml
You can install this directly on a Karaf4/Java8 instance. Note that it requires the Karaf scr feature to be installed.
When installed, it will export an instance of the IBundleManager remote service [1] and print to the karaf console the OSGI Endpoint Description Extender Format (EDEF) xml metadata for the remote service. This is configurable, and it has defaults/System.out for test purposes.
This feature only creates the IBundleManager, but also available are the managers described here [2], any of which may be easily added. Other remote services can/could easily be created (e.g. remote configuration, remote access to kura services, etc).
All of these remote services can be exported via an MQTT Provider [3], so a separate server is not necessary.
We also have an Eclipse UI/views for using the IBundleManager. Please let me know if you would like to try that and I will create and point you at the p2 repos.
Scott
[1] https://github.com/ECF/OSGIRemoteManagement/blob/master/bund les/org.eclipse.ecf.mgmt.frame work/src/org/eclipse/ecf/mgmt/ framework/IBundleManager.java
[2] https://www.eclipse.org/ecf/NewAndNoteworthy.html
[3] https://github.com/ECF/Mqtt-Provider
On 10/5/2016 11:51 PM, Jens Reimann wrote:
So maybe it is time for another Maven plugin ;-)Sounds great. I think there was one Maven plugin to create a KAR from P2 features. .. Here it is [1].That should work similar to the OSGi DP maven plugin. But it does not create a feature.
On Wed, Oct 5, 2016 at 6:14 PM, <slewis@xxxxxxxxxxxxx> wrote:
Hi Jens,
Yes, it's easy enough to create a Karaf feature for these mgmt bundles.
I'm a little preoccupied until this weekend, but will do then and make it
available to you.
BTW, do you know of any good tooling to create karaf features (e.g. from
p2 feature groups)?
In the mean time, you can install the ECF SDK (does not yet include the
mgmt bundles) into Karaf as per here:
https://wiki.eclipse.org/EIG:Install_into_Apache_Karaf
Note that this includes far more than is needed strictly for the mgmt, but
it was put together for general Karaf usage.
Scott
> Hi Scott,
>
> Is there any way to bundle this as a Karaf feature? I would have a working
> Karaf branch now which we could use for testing. This includes support for
> Java 8. I do know the packaging is a bit different.
>
> Cheers
>
> Jens
>
> On Sun, Sep 25, 2016 at 7:03 PM, Scott Lewis <slewis@xxxxxxxxxxxxx> wrote:
>
>> On 9/4/2016 11:47 PM, Jens Reimann wrote:
>>
>>> That looks cool!
>>>
>>> For [4] I would like to see a table tree instead. Putting states in a
>>> specific column ;-)
>>>
>>> Can you give a list of which bundles are necessary on the server side
>>> in
>>> order to support this?!
>>>
>>
>> I've created such a list as a feature [1] and created a p2 repository
>> based upon this feature [2].
>>
>> Note: The remote management impl depends upon Java8, which currently
>> requires the Kura+equinox v 3.11 branch.
>>
>> The bundle here [3] registers and exports (using RSA) the IBundleManager
>> remote service.
>>
>> Scott
>>
>> [1] https://github.com/ECF/OSGIRemoteManagement/blob/master/
>> releng/org.eclipse.ecf.mgmt.kura.host.feature/feature.xml
>> [2] https://github.com/ECF/OSGIRemoteManagement/tree/master/
>> releng/org.eclipse.ecf.mgmt.kura.host.feature/builds/2016092 5
>> [3] https://github.com/ECF/OSGIRemoteManagement/tree/master/
>> bundles/org.eclipse.ecf.mgmt.kura.host
>>
>>
