Liviu
I actually do this for my arduino eclipse plugin. Arduino
supports arm, avr and arc-32 gnu toolchains (There may be more -it
is not relevant to the plugin-). The plugin runs in windows, Linux
and Mac. It does this with full support of the CDT indexer and
discovery features.

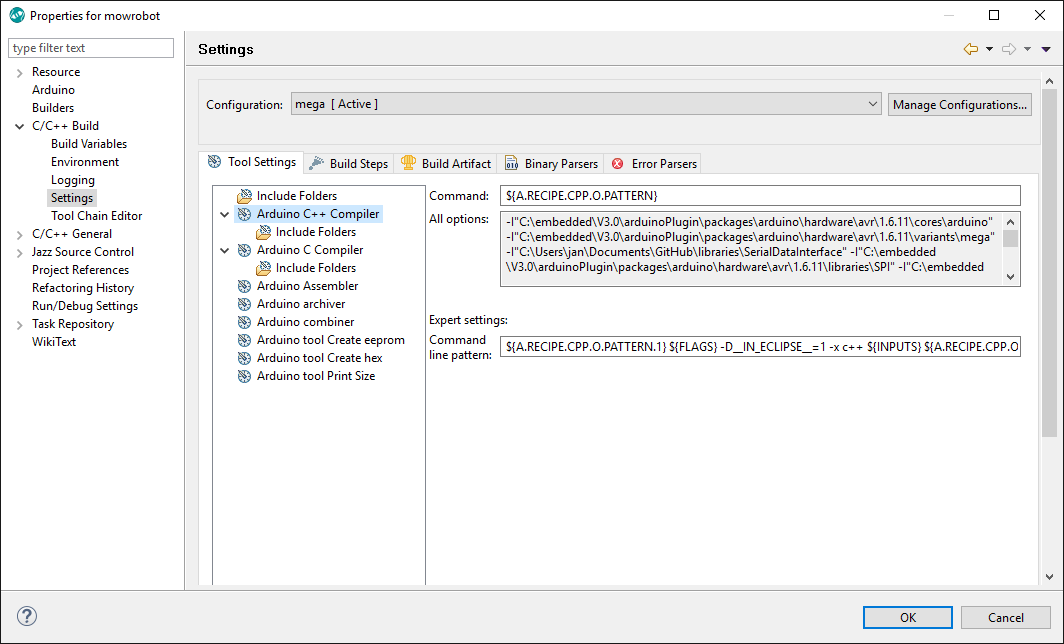

The way I do this is by using environment variables for all the
command lines. Below an example for the C++ compiler.
The way I set the environment variables is fully based on the
Arduino way but that is simply because it is an: "Arduino eclipse
plugin."
Below is part of my plugin.xml that shows all commands are
environment variables and as such can be anything (I sometimes use
echo because the action is not needed).
I have not much experience in moving workspaces from system A to
B (well some between linux and windows) but basically if you reset
all the environment variables (which you do in my plugin by
selecting the board again) all is working fine again. I know some
people use the plugin for bigger projects with version control and
multiple users. It is very unlikely they are all on the same OS.
The only problem I'm aware off that I have not really fixed is
the situation where the environment settings are not yet properly
set (moving stuff around so links no longer work...). In that case
the discovery will cause a null pointer exception. Once the
environment variables are properly set they go away.
Best regards
Jantje
PS in case you wonder how much this is used: about 6390 builds
per day the last month.
<toolChain
archList="all"
id="it.baeyens.arduino.core.toolChain.release"
isAbstract="false"
languageSettingsProviders="it.baeyens.arduino.languageSettingsProvider"
name="%toolChain.name"
osList="all"
targetTool="it.baeyens.arduino.tool.size">
<targetPlatform
archList="all"
binaryParser="org.eclipse.cdt.core.ELF"
id="it.baeyens.arduino.targetplatform"
name="%targetPlatform.name"
osList="all">
</targetPlatform>
<builder
id="it.baeyens.arduino.sketch.builder"
name="%builder.name.0"
superClass="it.baeyens.arduino.gnu.builder">
</builder>
<optionCategory
id="it.baeyens.arduino.core.optionCategory.includePaths"
name="%optionCategory.name">
</optionCategory>
<tool
announcement="%tool.Arduino.CPP.announcement"
command="${A.RECIPE.CPP.O.PATTERN}"
commandLinePattern="${A.RECIPE.CPP.O.PATTERN.1}
${FLAGS} -D__IN_ECLIPSE__=1 -x c++ ${INPUTS}
${A.RECIPE.CPP.O.PATTERN.2} ${OUTPUT} ${A.RECIPE.CPP.O.PATTERN.3}
${JANTJE.WARNING_LEVEL} ${JANTJE.EXTRA.COMPILE}
${JANTJE.EXTRA.CPP.COMPILE}"
errorParsers="org.eclipse.cdt.core.GCCErrorParser"
id="it.baeyens.arduino.tool.sketch.compiler.cpp"
name="%tool.Arduino.CPP2O.name"
natureFilter="both">
<optionCategory
id="it.baeyens.arduino.core.cpp.optionCategory.includePaths"
name="%optionCategory.include.name">
</optionCategory>
<option
browseType="directory"
category="it.baeyens.arduino.core.cpp.optionCategory.includePaths"
command="-I"
id="it.baeyens.arduino.compiler.cpp.sketch.option.incpath"
name="%option.include.path.name"
resourceFilter="project"
valueType="includePath">
</option>
<inputType
buildVariable="CPP_SKETCH_FILES"
dependencyCalculator="it.baeyens.arduino.toolchain.ArduinoDependencyCalculator"
dependencyContentType="org.eclipse.cdt.core.cxxHeader"
id="it.baeyens.arduino.compiler.cpp.sketch.input"
name="%inputType.CPP.name"
primaryInput="true"
sourceContentType="org.eclipse.cdt.core.cxxSource">
</inputType>
<outputType
buildVariable="LINK_OBJ"
id="it.baeyens.arduino.compiler.cpp.sketch.link.output"
name="%outputType.CPP.link.name"
nameProvider="it.baeyens.arduino.toolchain.LinkNameProvider"
outputs="o"
primaryOutput="true">
</outputType>
<outputType
buildVariable="AR_OBJ"
id="it.baeyens.arduino.compiler.cpp.ar.output"
name="%outputType.CPP.AR.name"
nameProvider="it.baeyens.arduino.toolchain.ArchiveNameProvider"
outputs="o"
primaryOutput="true">
</outputType>
</tool>
...
Op 30/05/2016 om 19:57 schreef Doug
Schaefer:
I know this isn't going to be helpful, but it's
issues like these that have driven me to do a new, much simpler
build system. My hope is to make toolchain configuration
automatic and seemless auto discovering as much as it can and
minimizing the setup you need to do, especially if you're using
an external build system like CMake or autoconf, etc.
In the short term, things like dealing with the missing
LLVM plug-in seem to be bugs. Was there anything interesting
in the log like an NPE? There might be some quick fixes we
could do to avoid these issues.
