RE: [wtp-dev] The Big Picture
|
Tim,
Thanks for comitting to organize this effort. We can
certainly collaborate on the architecture tools and I don't have a problem
releasing the source under EPL or sharing otherwise. The one problem is that my
utility performs the analysis and then generates a text file that is consumed by
Graphviz (http://www.graphviz.org). With
the new IP rules now in place, even though I wouldn't be actually
re-distributing Graphviz (which is under a CPL license), it could be argued that
my tool is not usable without Graphviz, so I am in fact re-distributing it. This
basically means, that we would have to run Graphviz through the full IP process
before releasing any of my code to a CVS server maintained by the Eclipse
Foundation. Sigh. I will run these specifics by Janet to get her reading on
this. Doesn't mean we couldn't collaborate in the meantime. We would just need
to find some creative ways to do that.
Regarding the issue of including the test plugins... As we
find cases where test plugins cross component-boundaries, I imagine we would
want to create a cross-wtp test component to hold those tests. Overall, most
test plugin seem to stay within component boundaries, which makes it
easier.
In the meantime, since starting this discussion,
I have been pushing on improving my tool and componentizing the Common Project.
Attached is the current work-in-progress. Don't read too much into this. It is a
work-in-progress, was not reviewed by anyone else, will change significantly,
etc. I just wanted to share what I've been doing with the rest of the team. This
is based on 3.0 M1 with a patch for https://bugs.eclipse.org/bugs/show_bug.cgi?id=202488 that
resolves one of the problematic dependencies.
components.xml - the component definitions that I feed
my utility.
components-and-dependencies.txt - lists the plugins by
component (after the regex patterns in component.xml are resolved);
shows dependencies of each component on other plugins
big.picture.txt - the graph definition that can be fed to
Graphviz

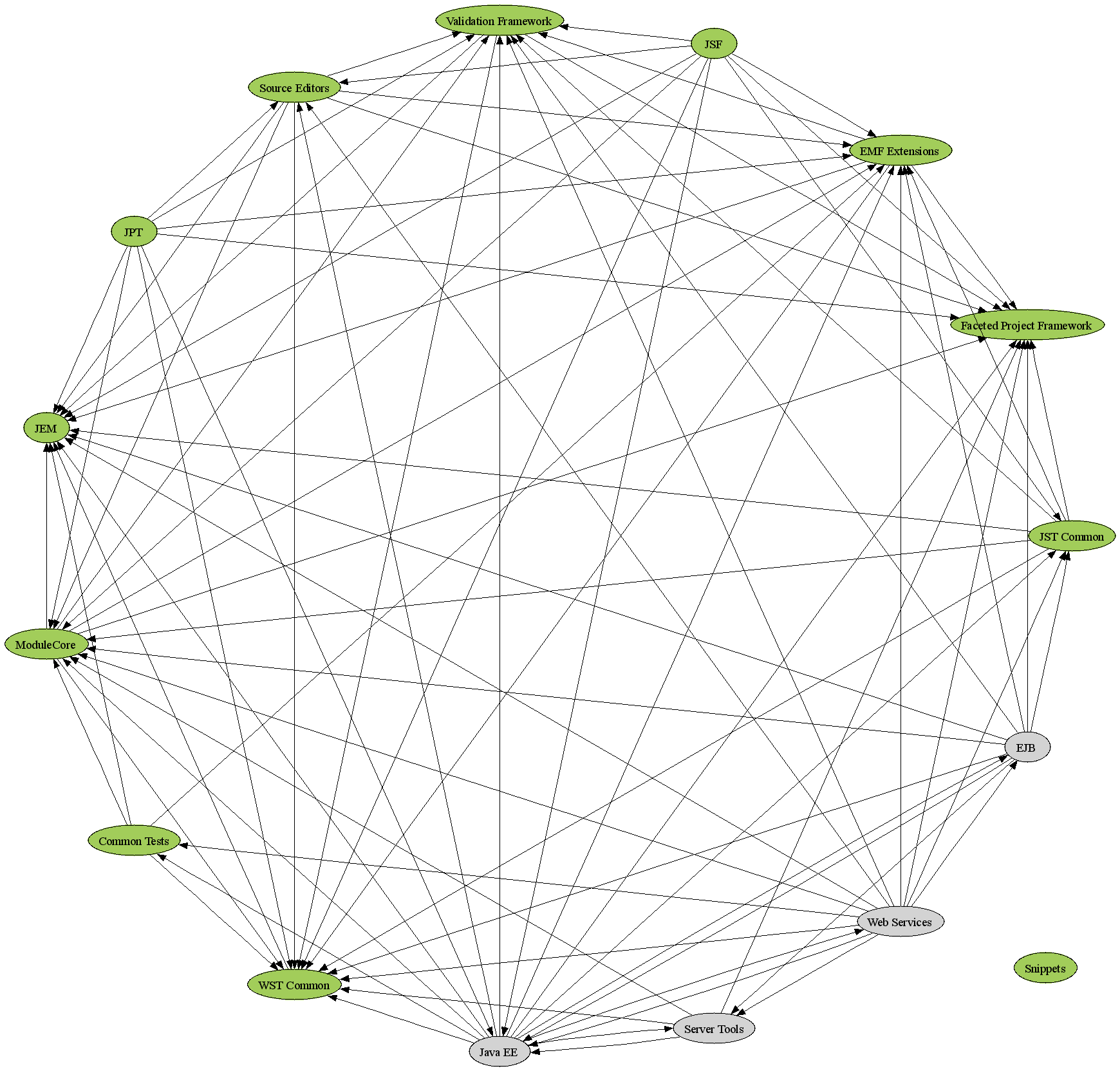

big.picture.png - the rendering of big.picture.txt using
the circular graph layout of Graphviz. This particular layout is real good for
spotting simple cycles (just look for parallel lines). To make spotting cycles
even easier, my tool detects cycles and tags components that are not involved in
cycles as green.
- Konstantin
Hi Konstantin, Thanks for building this tool - the graphs really help to
provide an overview of the dependencies and should generate some good
discussion. I also have a home brew tool that scans for dependencies and
provides information on references, calculates install sizes, etc., so maybe we
can find a way to collaborate. >
I then ran my utility against 3.0 M1 installation
which included WTP SDK and WTP automated tests. We may want to compare without test plugins as well - I
know in some cases teams have built test harnesses that aren't strictly
component specific, e.g. a test that extends WTP like an adopter to test
extension points and interactions across components. We'll need to examine these
dependencies to understand if they are valid, mistakes, or if there is some
restructuring that should occur. All of this should be done in light of the
installable options we want to provide in addition to our current features and
new component definitions. I have to
send my regrets for today's call, but David will be announcing the formation of
an Architecture Working Group. I'll setup a call next week so that we can start
talking about these issues, update our current docs, and decide what work needs
to be done. Thanks,
Tim
deBoer
deboer@xxxxxxxxxx
"Konstantin Komissarchik"
<kosta@xxxxxxx>
Sent by:
wtp-dev-bounces@xxxxxxxxxxx
09/04/2007 09:27 PM
|
Please respond
to
"General discussion of project-wide or architectural issues."
<wtp-dev@xxxxxxxxxxx> |
|
|
To
| "General discussion of project-wide
or architectural issues." <wtp-dev@xxxxxxxxxxx>
|
|
cc
|
|
|
Subject
| RE: [wtp-dev] The Big
Picture |
|
One of my goal was to better understand the new organization
as specified by the project refactoring proposal, so using existing features
would not work for that since they have yet to be updated to reflect this. Part
of this process (at least as far as it applies to common) is to drive the
creation of new features. So... If you look at the component listings in my
e-mail, you will notice that WST and JST parts co-mingle (just like they do in
the project refactoring proposal). Now, if under each of the new projects we
define a WST and a JST component and graph dependencies of those components,
then we would not end up with any cycles (the build works, as you point out). Is
that good enough? Is it ok to have cycles at project-level as long as we can
define components such as no cycles would exists? How would you build such a
structure once the codebase is re-organized based on the project refactoring
proposal? We wouldn't be able to have a project-level build since a top-level
driver would need to know how to weave builds of components of different
projects such that cycles are avoided.
The Java EE <-> Common cycle is due
to jst.common.frameworks depending on wst.web. This seems wrong to me. This
builds right now because by the time jst.common builds, all of wst has been
compiled, but I think jst.common should only be able to see wst.common.
-
Konstantin
From: wtp-dev-bounces@xxxxxxxxxxx
[mailto:wtp-dev-bounces@xxxxxxxxxxx] On Behalf Of David M
Williams
Sent: Tuesday, September 04, 2007 5:57 PM
To:
General discussion of project-wide or architectural issues.
Subject:
Re: [wtp-dev] The Big Picture
I'm not sure I understand, but if you are saying that
Common depends on Java EE, then I think something is amiss.
The way our
build works, it wouldn't compile if that was the case.
Does your analysis also take
into account the WST/JST split?
I think the way to approach this would be more along
the lines of our defined features?
Or, am I simply not understanding?
thanks,
"Konstantin Komissarchik"
<kosta@xxxxxxx>
Sent by:
wtp-dev-bounces@xxxxxxxxxxx
09/04/2007 08:19 PM
|
Please respond
to
"General discussion of project-wide or architectural issues."
<wtp-dev@xxxxxxxxxxx> |
|
|
To
| "General discussion of
project-wide or architectural issues."
<wtp-dev@xxxxxxxxxxx>
|
|
cc
|
|
|
Subject
| [wtp-dev] The Big
Picture |
|
So in my quest to understand
the "Common Project", I've been writing a little utility that can analyze plugin
dependencies and produce a component-to-component dependencies (given component
definitions). Until today, I've been mostly focused on understanding how the
rest of WTP depends on common, but today I decided to let my utility show me the
rest of the picture. Attached is the result.
I knew the dependency lines were
not going to be clean, but I was a bit surprised by the result. There are four
simple circles that can be easily spotted...
Java EE <-> Common
(yikes!)
Java EE
<-> EJB
Java EE
<-> Server Tools
Java EE <-> Web Services
More complicated circles are also
present, but these are harder to spot. One example is Web Services -> EJB
-> Java EE -> Web Services.
It strikes me that we either have a lot of work ahead of
us on refactoring the dependencies or these boxes aren't quite right. Maybe a
bit of both.
Thoughts? Does any of this come as a surprise?
I used information found in
http://www.eclipse.org/webtools/devProcess/wtpProjects/Refactor%20WTP%20Proposal.pdf as the definition of the component boundaries. I then ran my
utility against 3.0 M1 installation which included WTP SDK and WTP automated
tests. Let me know if the component membership as listed is not accurate and
needs to be tweaked. The only two plugins that are not accounted for are
org.eclipse.wst and org.eclipse.jst. Not sure where these would end
up.
Common
Component
org.eclipse.jem
org.eclipse.jem.beaninfo
org.eclipse.jem.proxy
org.eclipse.jem.tests
org.eclipse.jem.ui
org.eclipse.jem.util
org.eclipse.jem.workbench
org.eclipse.jst.common.annotations.controller
org.eclipse.jst.common.annotations.core
org.eclipse.jst.common.annotations.ui
org.eclipse.jst.common.frameworks
org.eclipse.jst.common.project.facet.core
org.eclipse.jst.validation.sample
org.eclipse.jst.validation.test
org.eclipse.wst.command.env
org.eclipse.wst.command.env.core
org.eclipse.wst.command.env.doc.user
org.eclipse.wst.command.env.infopop
org.eclipse.wst.command.env.ui
org.eclipse.wst.common.core
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.environment
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.infopop
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.project.facet.core.tests
org.eclipse.wst.common.project.facet.ui
org.eclipse.wst.common.project.facet.ui.tests
org.eclipse.wst.common.snippets
org.eclipse.wst.common.snippets.tests
org.eclipse.wst.common.tests
org.eclipse.wst.common.tests.collector
org.eclipse.wst.common.tests.ui
org.eclipse.wst.common.ui
org.eclipse.wst.common.ui.properties
org.eclipse.wst.common.uriresolver
org.eclipse.wst.internet.cache
org.eclipse.wst.internet.cache.tests
org.eclipse.wst.validation
org.eclipse.wst.validation.infopop
org.eclipse.wst.validation.ui
Server
Component
org.eclipse.jst.server.core
org.eclipse.jst.server.core.tests
org.eclipse.jst.server.generic.core
org.eclipse.jst.server.generic.jboss
org.eclipse.jst.server.generic.jonas
org.eclipse.jst.server.generic.oc4j
org.eclipse.jst.server.generic.tests
org.eclipse.jst.server.generic.ui
org.eclipse.jst.server.installable
org.eclipse.jst.server.preview.adapter
org.eclipse.jst.server.tomcat.core
org.eclipse.jst.server.tomcat.core.tests
org.eclipse.jst.server.tomcat.ui
org.eclipse.jst.server.tomcat.ui.tests
org.eclipse.jst.server.ui
org.eclipse.jst.server.ui.doc.user
org.eclipse.jst.server.ui.infopop
org.eclipse.jst.server.ui.tests
org.eclipse.jst.server.websphere.core
org.eclipse.wst.internet.monitor.core
org.eclipse.wst.internet.monitor.ui
org.eclipse.wst.internet.monitor.ui.tests
org.eclipse.wst.server.core
org.eclipse.wst.server.core.tests
org.eclipse.wst.server.http.core
org.eclipse.wst.server.http.core.tests
org.eclipse.wst.server.http.ui
org.eclipse.wst.server.preview
org.eclipse.wst.server.preview.adapter
org.eclipse.wst.server.ui
org.eclipse.wst.server.ui.doc.user
org.eclipse.wst.server.ui.infopop
org.eclipse.wst.server.ui.tests
Source Editors
Component
org.eclipse.jst.jsp.core
org.eclipse.jst.jsp.core.tests
org.eclipse.jst.jsp.tests.encoding
org.eclipse.jst.jsp.ui
org.eclipse.jst.jsp.ui.infopop
org.eclipse.jst.jsp.ui.tests
org.eclipse.jst.standard.schemas
org.eclipse.wst.css.core
org.eclipse.wst.css.core.tests
org.eclipse.wst.css.tests.encoding
org.eclipse.wst.css.ui
org.eclipse.wst.css.ui.tests
org.eclipse.wst.dtd.core
org.eclipse.wst.dtd.ui
org.eclipse.wst.dtd.ui.infopop
org.eclipse.wst.dtd.ui.tests
org.eclipse.wst.dtdeditor.doc.user
org.eclipse.wst.html.core
org.eclipse.wst.html.core.tests
org.eclipse.wst.html.tests.encoding
org.eclipse.wst.html.ui
org.eclipse.wst.html.ui.infopop
org.eclipse.wst.html.ui.tests
org.eclipse.wst._javascript_.core
org.eclipse.wst._javascript_.ui
org.eclipse.wst._javascript_.ui.infopop
org.eclipse.wst.sse.core
org.eclipse.wst.sse.core.tests
org.eclipse.wst.sse.doc.user
org.eclipse.wst.sse.ui
org.eclipse.wst.sse.ui.infopop
org.eclipse.wst.sse.ui.tests
org.eclipse.wst.standard.schemas
org.eclipse.wst.xml.core
org.eclipse.wst.xml.core.tests
org.eclipse.wst.xml.tests.encoding
org.eclipse.wst.xml.ui
org.eclipse.wst.xml.ui.infopop
org.eclipse.wst.xml.ui.tests
org.eclipse.wst.xml.validation.tests
org.eclipse.wst.xmleditor.doc.user
org.eclipse.wst.xsd.core
org.eclipse.wst.xsd.ui
org.eclipse.wst.xsd.validation.tests
org.eclipse.wst.xsdeditor.doc.user
Web Services
Component
org.eclipse.jst.ws
org.eclipse.jst.ws.axis.consumption.core
org.eclipse.jst.ws.axis.consumption.core.tests
org.eclipse.jst.ws.axis.consumption.ui
org.eclipse.jst.ws.axis.creation.ui
org.eclipse.jst.ws.axis.infopop
org.eclipse.jst.ws.axis.ui.doc.user
org.eclipse.jst.ws.axis2.consumption.core
org.eclipse.jst.ws.axis2.consumption.ui
org.eclipse.jst.ws.axis2.core
org.eclipse.jst.ws.axis2.creation.core
org.eclipse.jst.ws.axis2.creation.ui
org.eclipse.jst.ws.axis2.ui
org.eclipse.jst.ws.consumption
org.eclipse.jst.ws.consumption.infopop
org.eclipse.jst.ws.consumption.ui
org.eclipse.jst.ws.consumption.ui.doc.user
org.eclipse.jst.ws.creation.ejb.ui
org.eclipse.jst.ws.creation.ui
org.eclipse.jst.ws.doc.user
org.eclipse.jst.ws.infopop
org.eclipse.jst.ws.tests
org.eclipse.jst.ws.uddiregistry
org.eclipse.jst.ws.ui
org.eclipse.wst.ws
org.eclipse.wst.ws.explorer
org.eclipse.wst.ws.infopop
org.eclipse.wst.ws.parser
org.eclipse.wst.ws.tests
org.eclipse.wst.ws.ui
org.eclipse.wst.wsdl
org.eclipse.wst.wsdl.tests
org.eclipse.wst.wsdl.tests.ui
org.eclipse.wst.wsdl.ui
org.eclipse.wst.wsdl.ui.doc.user
org.eclipse.wst.wsdl.validation
org.eclipse.wst.wsdl.validation.tests
org.eclipse.wst.wsi
org.eclipse.wst.wsi.tests
org.eclipse.wst.wsi.ui
org.eclipse.wst.wsi.ui.doc.user
Java EE Tools
Component
org.eclipse.jst.doc.isv
org.eclipse.jst.j2ee
org.eclipse.jst.j2ee.core
org.eclipse.jst.j2ee.core.tests
org.eclipse.jst.j2ee.doc.user
org.eclipse.jst.j2ee.infopop
org.eclipse.jst.j2ee.jca
org.eclipse.jst.j2ee.jca.ui
org.eclipse.jst.j2ee.navigator.ui
org.eclipse.jst.j2ee.tests
org.eclipse.jst.j2ee.ui
org.eclipse.jst.j2ee.web
org.eclipse.jst.j2ee.webservice
org.eclipse.jst.j2ee.webservice.ui
org.eclipse.jst.j2ee.xdoclet.runtime
org.eclipse.jst.jee
org.eclipse.jst.jee.ui
org.eclipse.jst.jee.web
org.eclipse.jst.servlet.tests
org.eclipse.jst.servlet.ui
org.eclipse.jst.servlet.ui.infopop
org.eclipse.wst.doc.isv
org.eclipse.wst.doc.user
org.eclipse.wst.web
org.eclipse.wst.web.ui
org.eclipse.wst.web.ui.infopop
org.eclipse.wst.webtools.doc.user
EJB Tools
Component
org.eclipse.jst.ejb.doc.user
org.eclipse.jst.ejb.ui
org.eclipse.jst.j2ee.ejb
org.eclipse.jst.j2ee.ejb.annotation.model
org.eclipse.jst.j2ee.ejb.annotations.emitter
org.eclipse.jst.j2ee.ejb.annotations.ui
org.eclipse.jst.j2ee.ejb.annotations.xdoclet
org.eclipse.jst.jee.ejb
JSF Component
org.eclipse.jst.jsf.common
org.eclipse.jst.jsf.common.ui
org.eclipse.jst.jsf.contentassist.tests
org.eclipse.jst.jsf.context.symbol.tests
org.eclipse.jst.jsf.core
org.eclipse.jst.jsf.core.tests
org.eclipse.jst.jsf.designtime.tests
org.eclipse.jst.jsf.doc.dev
org.eclipse.jst.jsf.doc.user
org.eclipse.jst.jsf.facesconfig
org.eclipse.jst.jsf.facesconfig.ui
org.eclipse.jst.jsf.metadata.tests
org.eclipse.jst.jsf.metadataprocessingtests2
org.eclipse.jst.jsf.standard.tagsupport
org.eclipse.jst.jsf.test.util
org.eclipse.jst.jsf.ui
org.eclipse.jst.jsf.ui.tests
org.eclipse.jst.pagedesigner
org.eclipse.jst.pagedesigner.jsf.ui
org.eclipse.jst.pagedesigner.jsp.core
JPT Component
org.eclipse.jpt
org.eclipse.jpt.core
org.eclipse.jpt.core.tests
org.eclipse.jpt.core.tests.extension.resource
org.eclipse.jpt.db
org.eclipse.jpt.db.ui
org.eclipse.jpt.doc.user
org.eclipse.jpt.gen
org.eclipse.jpt.ui
org.eclipse.jpt.utility
org.eclipse.jpt.utility.tests
Notice: This email message, together with any
attachments, may contain information of BEA Systems, Inc., its subsidiaries and
affiliated entities, that may be confidential, proprietary, copyrighted and/or
legally privileged, and is intended solely for the use of the individual or
entity named in this message. If you are not the intended recipient, and have
received this message in error, please immediately return this by email and then
delete it._______________________________________________
wtp-dev mailing
list
wtp-dev@xxxxxxxxxxx
https://dev.eclipse.org/mailman/listinfo/wtp-dev
Notice: This email message, together with any attachments,
may contain information of BEA Systems, Inc., its subsidiaries and affiliated
entities, that may be confidential, proprietary, copyrighted and/or legally
privileged, and is intended solely for the use of the individual or entity named
in this message. If you are not the intended recipient, and have received this
message in error, please immediately return this by email and then delete
it._______________________________________________
wtp-dev mailing
list
wtp-dev@xxxxxxxxxxx
https://dev.eclipse.org/mailman/listinfo/wtp-dev
Notice: This email message, together with any attachments, may contain information of BEA Systems, Inc., its subsidiaries and affiliated entities, that may be confidential, proprietary, copyrighted and/or legally privileged, and is intended solely for the use of the individual or entity named in this message. If you are not the intended recipient, and have received this message in error, please immediately return this by email and then delete it.
<components>
<component name="WST Common">
<includes>org.eclipse.wst.common.*</includes>
<includes>org.eclipse.wst.internet.cache.*</includes>
<excludes>org.eclipse.wst.common.snippets.*</excludes>
<excludes>org.eclipse.wst.common.project.facet.*</excludes>
<excludes>org.eclipse.wst.common.emf.*</excludes>
<excludes>org.eclipse.wst.common.emfworkbench.integration.*</excludes>
<excludes>org.eclipse.wst.common.modulecore.*</excludes>
<excludes>org.eclipse.wst.common.tests.*</excludes>
</component>
<component name="JST Common">
<includes>org.eclipse.jst.common.*</includes>
<excludes>org.eclipse.jst.common.project.facet.*</excludes>
<excludes>org.eclipse.jst.common.annotations.*</excludes>
</component>
<component name="ModuleCore">
<includes>org.eclipse.wst.common.modulecore.*</includes>
</component>
<component name="Validation Framework">
<includes>org.eclipse.wst.validation.*</includes>
</component>
<component name="Faceted Project Framework">
<includes>org.eclipse.wst.common.project.facet.*</includes>
<includes>org.eclipse.jst.common.project.facet.*</includes>
</component>
<component name="JEM">
<includes>org.eclipse.jem.*</includes>
</component>
<component name="Snippets">
<includes>org.eclipse.wst.common.snippets.*</includes>
</component>
<component name="EMF Extensions">
<includes>org.eclipse.wst.common.emf.*</includes>
<includes>org.eclipse.wst.common.emfworkbench.integration.*</includes>
</component>
<component name="Common Tests">
<includes>org.eclipse.wst.common.tests.*</includes>
</component>
<component name="Server Tools">
<includes>org.eclipse.wst.server.*</includes>
<includes>org.eclipse.wst.internet.monitor.*</includes>
<includes>org.eclipse.jst.server.*</includes>
</component>
<component name="Source Editors">
<includes>org.eclipse.wst.dtd.*</includes>
<includes>org.eclipse.wst.sse.*</includes>
<includes>org.eclipse.wst.standard.schemas</includes>
<includes>org.eclipse.wst.xml.*</includes>
<includes>org.eclipse.wst.xsd.*</includes>
<includes>org.eclipse.wst.dtdeditor.doc.user</includes>
<includes>org.eclipse.wst.xmleditor.doc.user</includes>
<includes>org.eclipse.wst.xsdeditor.doc.user</includes>
<includes>org.eclipse.wst.css.*</includes>
<includes>org.eclipse.wst.html.*</includes>
<includes>org.eclipse.wst.css.*</includes>
<includes>org.eclipse.wst.javascript.*</includes>
<includes>org.eclipse.jst.jsp.*</includes>
<includes>org.eclipse.jst.standard.schemas</includes>
</component>
<component name="Web Services">
<includes>org.eclipse.wst.ws.*</includes>
<includes>org.eclipse.wst.wsdl.*</includes>
<includes>org.eclipse.wst.wsi.*</includes>
<includes>org.eclipse.jst.ws.*</includes>
<!-- KK: Proposing to move from Common -->
<includes>org.eclipse.wst.command.env.*</includes>
</component>
<component name="Java EE">
<includes>org.eclipse.jst.j2ee.*</includes>
<includes>org.eclipse.jst.jee.*</includes>
<includes>org.eclipse.jst.servlet.*</includes>
<includes>org.eclipse.wst.web.*</includes>
<includes>org.eclipse.jst.doc.isv</includes>
<includes>org.eclipse.wst.doc.isv</includes>
<includes>org.eclipse.wst.doc.user</includes>
<includes>org.eclipse.wst.webtools.doc.user</includes>
<!-- KK: Proposing to move from Common. -->
<includes>org.eclipse.jst.validation.*</includes>
<includes>org.eclipse.jst.common.annotations.*</includes>
<excludes>org.eclipse.jst.j2ee.ejb.*</excludes>
<excludes>org.eclipse.jst.jee.ejb.*</excludes>
<excludes>org.eclipse.jst.j2ee.xdoclet.runtime</excludes>
</component>
<component name="EJB">
<includes>org.eclipse.jst.j2ee.ejb.*</includes>
<includes>org.eclipse.jst.jee.ejb.*</includes>
<includes>org.eclipse.jst.ejb.*</includes>
<includes>org.eclipse.jst.j2ee.xdoclet.runtime</includes>
</component>
<component name="JSF">
<includes>org.eclipse.jst.jsf.*</includes>
<includes>org.eclipse.jst.pagedesigner.*</includes>
</component>
<component name="JPT">
<includes>org.eclipse.jpt.*</includes>
</component>
</components>WST Common
org.eclipse.wst.common.core
org.eclipse.wst.common.environment
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.infopop
org.eclipse.wst.common.ui
org.eclipse.wst.common.ui.properties
org.eclipse.wst.common.uriresolver
org.eclipse.wst.internet.cache
org.eclipse.wst.internet.cache.tests
WST Common Dependencies
org.eclipse.core.commands
org.eclipse.core.expressions
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.core.runtime.compatibility
org.eclipse.emf.ecore
org.eclipse.jem.util
org.eclipse.jface.text
org.eclipse.osgi.util
org.eclipse.search
org.eclipse.ui
org.eclipse.ui.forms
org.eclipse.ui.ide
org.eclipse.ui.views
org.eclipse.ui.workbench.texteditor
org.junit
JST Common
org.eclipse.jst.common.frameworks
JST Common Dependencies
org.eclipse.core.commands
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.emf.ecore
org.eclipse.emf.ecore.xmi
org.eclipse.jdt.core
org.eclipse.jdt.launching
org.eclipse.jem.util
org.eclipse.jem.workbench
org.eclipse.jst.common.project.facet.core
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.validation
ModuleCore
org.eclipse.wst.common.modulecore
ModuleCore Dependencies
org.eclipse.core.commands
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.emf.ecore
org.eclipse.emf.ecore.xmi
org.eclipse.emf.edit
org.eclipse.jem.util
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.environment
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.uriresolver
org.eclipse.wst.validation
Validation Framework
org.eclipse.wst.validation
org.eclipse.wst.validation.infopop
org.eclipse.wst.validation.ui
Validation Framework Dependencies
org.eclipse.core.expressions
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.jem.util
org.eclipse.swt
org.eclipse.ui
org.eclipse.ui.forms
org.eclipse.ui.ide
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.project.facet.core
Faceted Project Framework
org.eclipse.jst.common.project.facet.core
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.project.facet.core.tests
org.eclipse.wst.common.project.facet.ui
org.eclipse.wst.common.project.facet.ui.tests
Faceted Project Framework Dependencies
org.eclipse.core.expressions
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.draw2d
org.eclipse.jdt.core
org.eclipse.ui
org.eclipse.ui.forms
org.eclipse.ui.ide
org.junit
JEM
org.eclipse.jem
org.eclipse.jem.beaninfo
org.eclipse.jem.proxy
org.eclipse.jem.tests
org.eclipse.jem.ui
org.eclipse.jem.util
org.eclipse.jem.workbench
JEM Dependencies
org.eclipse.ui.editors
com.ibm.etools.emf.event
com.ibm.icu
org.eclipse.ant.core
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.debug.core
org.eclipse.debug.ui
org.eclipse.emf.ecore
org.eclipse.emf.ecore.change
org.eclipse.emf.ecore.xmi
org.eclipse.jdt.core
org.eclipse.jdt.debug.ui
org.eclipse.jdt.launching
org.eclipse.jdt.ui
org.eclipse.pde.core
org.eclipse.perfmsr.core
org.eclipse.ui
org.eclipse.ui.ide
org.junit
Snippets
org.eclipse.wst.common.snippets
org.eclipse.wst.common.snippets.tests
Snippets Dependencies
com.ibm.icu
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.gef
org.eclipse.jface.text
org.eclipse.text
org.eclipse.ui
org.eclipse.ui.ide
org.eclipse.ui.workbench.texteditor
org.junit
EMF Extensions
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
EMF Extensions Dependencies
org.eclipse.core.expressions
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.emf.ecore.xmi
org.eclipse.emf.edit
org.eclipse.jem.util
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.validation
Common Tests
org.eclipse.wst.common.tests
org.eclipse.wst.common.tests.collector
org.eclipse.wst.common.tests.ui
Common Tests Dependencies
org.eclipse.core.commands
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.core.runtime.compatibility
org.eclipse.emf.common
org.eclipse.emf.ecore
org.eclipse.jem.util
org.eclipse.ui
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.environment
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.modulecore
org.junit
Server Tools
org.eclipse.jst.server.core
org.eclipse.jst.server.core.tests
org.eclipse.jst.server.generic.core
org.eclipse.jst.server.generic.jboss
org.eclipse.jst.server.generic.jonas
org.eclipse.jst.server.generic.oc4j
org.eclipse.jst.server.generic.tests
org.eclipse.jst.server.generic.ui
org.eclipse.jst.server.installable
org.eclipse.jst.server.preview.adapter
org.eclipse.jst.server.tomcat.core
org.eclipse.jst.server.tomcat.core.tests
org.eclipse.jst.server.tomcat.ui
org.eclipse.jst.server.tomcat.ui.tests
org.eclipse.jst.server.ui
org.eclipse.jst.server.ui.doc.user
org.eclipse.jst.server.ui.infopop
org.eclipse.jst.server.ui.tests
org.eclipse.jst.server.websphere.core
org.eclipse.wst.internet.monitor.core
org.eclipse.wst.internet.monitor.ui
org.eclipse.wst.internet.monitor.ui.tests
org.eclipse.wst.server.core
org.eclipse.wst.server.core.tests
org.eclipse.wst.server.http.core
org.eclipse.wst.server.http.core.tests
org.eclipse.wst.server.http.ui
org.eclipse.wst.server.preview
org.eclipse.wst.server.preview.adapter
org.eclipse.wst.server.ui
org.eclipse.wst.server.ui.doc.user
org.eclipse.wst.server.ui.infopop
org.eclipse.wst.server.ui.tests
Server Tools Dependencies
org.apache.ant
org.apache.commons.logging
org.eclipse.ant.ui
org.eclipse.core.commands
org.eclipse.core.expressions
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.core.variables
org.eclipse.debug.core
org.eclipse.debug.ui
org.eclipse.emf.common
org.eclipse.emf.ecore
org.eclipse.emf.ecore.xmi
org.eclipse.jdt.core
org.eclipse.jdt.debug.ui
org.eclipse.jdt.junit
org.eclipse.jdt.launching
org.eclipse.jdt.ui
org.eclipse.jface.text
org.eclipse.jst.common.project.facet.core
org.eclipse.jst.j2ee
org.eclipse.jst.j2ee.core
org.eclipse.jst.j2ee.web
org.eclipse.ui
org.eclipse.ui.browser
org.eclipse.ui.externaltools
org.eclipse.ui.forms
org.eclipse.ui.ide
org.eclipse.ui.workbench.texteditor
org.eclipse.update.core
org.eclipse.wst.common.core
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.project.facet.ui
org.junit
org.mortbay.jetty
Source Editors
org.eclipse.jst.jsp.core
org.eclipse.jst.jsp.core.tests
org.eclipse.jst.jsp.tests.encoding
org.eclipse.jst.jsp.ui
org.eclipse.jst.jsp.ui.infopop
org.eclipse.jst.jsp.ui.tests
org.eclipse.jst.standard.schemas
org.eclipse.wst.css.core
org.eclipse.wst.css.core.tests
org.eclipse.wst.css.tests.encoding
org.eclipse.wst.css.ui
org.eclipse.wst.css.ui.tests
org.eclipse.wst.dtd.core
org.eclipse.wst.dtd.ui
org.eclipse.wst.dtd.ui.infopop
org.eclipse.wst.dtd.ui.tests
org.eclipse.wst.dtdeditor.doc.user
org.eclipse.wst.html.core
org.eclipse.wst.html.core.tests
org.eclipse.wst.html.tests.encoding
org.eclipse.wst.html.ui
org.eclipse.wst.html.ui.infopop
org.eclipse.wst.html.ui.tests
org.eclipse.wst.javascript.core
org.eclipse.wst.javascript.ui
org.eclipse.wst.javascript.ui.infopop
org.eclipse.wst.sse.core
org.eclipse.wst.sse.core.tests
org.eclipse.wst.sse.doc.user
org.eclipse.wst.sse.ui
org.eclipse.wst.sse.ui.infopop
org.eclipse.wst.sse.ui.tests
org.eclipse.wst.standard.schemas
org.eclipse.wst.xml.core
org.eclipse.wst.xml.core.tests
org.eclipse.wst.xml.tests.encoding
org.eclipse.wst.xml.ui
org.eclipse.wst.xml.ui.infopop
org.eclipse.wst.xml.ui.tests
org.eclipse.wst.xml.validation.tests
org.eclipse.wst.xmleditor.doc.user
org.eclipse.wst.xsd.core
org.eclipse.wst.xsd.ui
org.eclipse.wst.xsd.validation.tests
org.eclipse.wst.xsdeditor.doc.user
Source Editors Dependencies
org.eclipse.wst.xml.core
com.ibm.icu
javax.servlet.jsp
org.apache.xerces
org.eclipse.core.filebuffers
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.debug.core
org.eclipse.debug.ui
org.eclipse.emf.common
org.eclipse.emf.ecore
org.eclipse.emf.ecore.edit
org.eclipse.emf.ecore.xmi
org.eclipse.emf.edit.ui
org.eclipse.gef
org.eclipse.jdt.core
org.eclipse.jdt.debug
org.eclipse.jdt.ui
org.eclipse.jem.util
org.eclipse.jface.text
org.eclipse.ltk.core.refactoring
org.eclipse.ltk.ui.refactoring
org.eclipse.search
org.eclipse.text
org.eclipse.ui
org.eclipse.ui.editors
org.eclipse.ui.ide
org.eclipse.ui.views
org.eclipse.ui.views.properties.tabbed
org.eclipse.ui.workbench
org.eclipse.ui.workbench.texteditor
org.eclipse.wst.common.core
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.ui
org.eclipse.wst.common.uriresolver
org.eclipse.wst.validation
org.eclipse.xsd
org.eclipse.xsd.edit
org.junit
Web Services
org.eclipse.jst.ws
org.eclipse.jst.ws.axis.consumption.core
org.eclipse.jst.ws.axis.consumption.core.tests
org.eclipse.jst.ws.axis.consumption.ui
org.eclipse.jst.ws.axis.creation.ui
org.eclipse.jst.ws.axis.infopop
org.eclipse.jst.ws.axis.ui.doc.user
org.eclipse.jst.ws.axis2.consumption.core
org.eclipse.jst.ws.axis2.consumption.ui
org.eclipse.jst.ws.axis2.core
org.eclipse.jst.ws.axis2.creation.core
org.eclipse.jst.ws.axis2.creation.ui
org.eclipse.jst.ws.axis2.ui
org.eclipse.jst.ws.consumption
org.eclipse.jst.ws.consumption.infopop
org.eclipse.jst.ws.consumption.ui
org.eclipse.jst.ws.consumption.ui.doc.user
org.eclipse.jst.ws.creation.ejb.ui
org.eclipse.jst.ws.creation.ui
org.eclipse.jst.ws.doc.user
org.eclipse.jst.ws.infopop
org.eclipse.jst.ws.tests
org.eclipse.jst.ws.uddiregistry
org.eclipse.jst.ws.ui
org.eclipse.wst.command.env
org.eclipse.wst.command.env.core
org.eclipse.wst.command.env.doc.user
org.eclipse.wst.command.env.infopop
org.eclipse.wst.command.env.ui
org.eclipse.wst.ws
org.eclipse.wst.ws.explorer
org.eclipse.wst.ws.infopop
org.eclipse.wst.ws.parser
org.eclipse.wst.ws.tests
org.eclipse.wst.ws.ui
org.eclipse.wst.wsdl
org.eclipse.wst.wsdl.tests
org.eclipse.wst.wsdl.tests.ui
org.eclipse.wst.wsdl.ui
org.eclipse.wst.wsdl.ui.doc.user
org.eclipse.wst.wsdl.validation
org.eclipse.wst.wsdl.validation.tests
org.eclipse.wst.wsi
org.eclipse.wst.wsi.tests
org.eclipse.wst.wsi.ui
org.eclipse.wst.wsi.ui.doc.user
Web Services Dependencies
org.eclipse.wst.ws.parser
com.ibm.icu
javax.wsdl
org.apache.ant
org.apache.axis
org.apache.wsil4j
org.apache.xerces
org.eclipse.ant.core
org.eclipse.core.commands
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.core.runtime.compatibility
org.eclipse.debug.core
org.eclipse.emf.codegen
org.eclipse.emf.common
org.eclipse.emf.ecore
org.eclipse.emf.ecore.xmi
org.eclipse.emf.edit
org.eclipse.emf.edit.ui
org.eclipse.gef
org.eclipse.help.appserver
org.eclipse.jdt.core
org.eclipse.jdt.debug.ui
org.eclipse.jdt.launching
org.eclipse.jdt.ui
org.eclipse.jem
org.eclipse.jem.util
org.eclipse.jem.workbench
org.eclipse.jface
org.eclipse.jface.text
org.eclipse.jst.common.frameworks
org.eclipse.jst.j2ee
org.eclipse.jst.j2ee.core
org.eclipse.jst.j2ee.ejb
org.eclipse.jst.j2ee.web
org.eclipse.jst.j2ee.webservice
org.eclipse.jst.j2ee.webservice.ui
org.eclipse.jst.server.core
org.eclipse.jst.server.tomcat.core
org.eclipse.ltk.core.refactoring
org.eclipse.ltk.ui.refactoring
org.eclipse.osgi
org.eclipse.search
org.eclipse.ui
org.eclipse.ui.editors
org.eclipse.ui.forms
org.eclipse.ui.ide
org.eclipse.ui.views
org.eclipse.ui.views.properties.tabbed
org.eclipse.ui.workbench.texteditor
org.eclipse.wst.common.core
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.environment
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.project.facet.ui
org.eclipse.wst.common.tests
org.eclipse.wst.common.ui
org.eclipse.wst.common.uriresolver
org.eclipse.wst.internet.monitor.core
org.eclipse.wst.internet.monitor.ui
org.eclipse.wst.server.core
org.eclipse.wst.server.ui
org.eclipse.wst.sse.core
org.eclipse.wst.sse.ui
org.eclipse.wst.validation
org.eclipse.wst.xml.core
org.eclipse.wst.xml.ui
org.eclipse.wst.xsd.ui
org.eclipse.xsd
org.junit
org.uddi4j
Java EE
org.eclipse.jst.common.annotations.controller
org.eclipse.jst.common.annotations.core
org.eclipse.jst.common.annotations.ui
org.eclipse.jst.doc.isv
org.eclipse.jst.j2ee
org.eclipse.jst.j2ee.core
org.eclipse.jst.j2ee.core.tests
org.eclipse.jst.j2ee.doc.user
org.eclipse.jst.j2ee.infopop
org.eclipse.jst.j2ee.jca
org.eclipse.jst.j2ee.jca.ui
org.eclipse.jst.j2ee.navigator.ui
org.eclipse.jst.j2ee.tests
org.eclipse.jst.j2ee.ui
org.eclipse.jst.j2ee.web
org.eclipse.jst.j2ee.webservice
org.eclipse.jst.j2ee.webservice.ui
org.eclipse.jst.jee
org.eclipse.jst.jee.ui
org.eclipse.jst.jee.web
org.eclipse.jst.servlet.tests
org.eclipse.jst.servlet.ui
org.eclipse.jst.servlet.ui.infopop
org.eclipse.jst.validation.sample
org.eclipse.jst.validation.test
org.eclipse.wst.doc.isv
org.eclipse.wst.doc.user
org.eclipse.wst.web
org.eclipse.wst.web.ui
org.eclipse.wst.web.ui.infopop
org.eclipse.wst.webtools.doc.user
Java EE Dependencies
com.ibm.icu
javax.wsdl
org.eclipse.core.commands
org.eclipse.core.expressions
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.core.runtime.compatibility
org.eclipse.debug.ui
org.eclipse.emf.codegen
org.eclipse.emf.common
org.eclipse.emf.ecore
org.eclipse.emf.ecore.edit
org.eclipse.emf.ecore.xmi
org.eclipse.emf.edit
org.eclipse.emf.edit.ui
org.eclipse.help
org.eclipse.jdt.core
org.eclipse.jdt.launching
org.eclipse.jdt.ui
org.eclipse.jem
org.eclipse.jem.util
org.eclipse.jem.workbench
org.eclipse.jface
org.eclipse.jface.text
org.eclipse.jst.common.frameworks
org.eclipse.jst.common.project.facet.core
org.eclipse.jst.ejb.ui
org.eclipse.jst.j2ee.ejb
org.eclipse.jst.j2ee.ejb.annotation.model
org.eclipse.jst.server.core
org.eclipse.ltk.core.refactoring
org.eclipse.swt
org.eclipse.ui
org.eclipse.ui.editors
org.eclipse.ui.forms
org.eclipse.ui.ide
org.eclipse.ui.navigator
org.eclipse.ui.navigator.resources
org.eclipse.ui.views
org.eclipse.ui.workbench
org.eclipse.ui.workbench.texteditor
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.environment
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.project.facet.ui
org.eclipse.wst.common.tests
org.eclipse.wst.common.uriresolver
org.eclipse.wst.server.core
org.eclipse.wst.server.ui
org.eclipse.wst.sse.core
org.eclipse.wst.validation
org.eclipse.wst.ws.parser
org.eclipse.wst.wsdl
org.eclipse.wst.xml.core
org.junit
EJB
org.eclipse.jst.ejb.doc.user
org.eclipse.jst.ejb.ui
org.eclipse.jst.j2ee.ejb
org.eclipse.jst.j2ee.ejb.annotation.model
org.eclipse.jst.j2ee.ejb.annotations.emitter
org.eclipse.jst.j2ee.ejb.annotations.ui
org.eclipse.jst.j2ee.ejb.annotations.xdoclet
org.eclipse.jst.j2ee.xdoclet.runtime
org.eclipse.jst.jee.ejb
EJB Dependencies
org.eclipse.ant.core
org.eclipse.ant.ui
org.eclipse.core.commands
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.datatools.connectivity
org.eclipse.datatools.connectivity.ui.dse
org.eclipse.debug.core
org.eclipse.debug.ui
org.eclipse.emf.codegen
org.eclipse.emf.common
org.eclipse.emf.ecore
org.eclipse.emf.ecore.edit
org.eclipse.emf.ecore.xmi
org.eclipse.emf.edit.ui
org.eclipse.jdt
org.eclipse.jdt.core
org.eclipse.jdt.debug.ui
org.eclipse.jdt.launching
org.eclipse.jdt.ui
org.eclipse.jem
org.eclipse.jem.util
org.eclipse.jem.workbench
org.eclipse.jface.text
org.eclipse.jst.common.annotations.controller
org.eclipse.jst.common.frameworks
org.eclipse.jst.common.project.facet.core
org.eclipse.jst.j2ee
org.eclipse.jst.j2ee.core
org.eclipse.jst.j2ee.ui
org.eclipse.jst.j2ee.web
org.eclipse.jst.jee
org.eclipse.jst.server.core
org.eclipse.text
org.eclipse.ui
org.eclipse.ui.ide
org.eclipse.ui.navigator.resources
org.eclipse.ui.workbench
org.eclipse.wst.common.core
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.environment
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.project.facet.ui
org.eclipse.wst.server.core
org.eclipse.wst.validation
org.eclipse.wst.validation.ui
org.eclipse.wst.web
org.eclipse.wst.web.ui
JSF
org.eclipse.jst.jsf.common
org.eclipse.jst.jsf.common.ui
org.eclipse.jst.jsf.contentassist.tests
org.eclipse.jst.jsf.context.symbol.tests
org.eclipse.jst.jsf.core
org.eclipse.jst.jsf.core.tests
org.eclipse.jst.jsf.designtime.tests
org.eclipse.jst.jsf.doc.dev
org.eclipse.jst.jsf.doc.user
org.eclipse.jst.jsf.facesconfig
org.eclipse.jst.jsf.facesconfig.ui
org.eclipse.jst.jsf.metadata.tests
org.eclipse.jst.jsf.metadataprocessingtests2
org.eclipse.jst.jsf.standard.tagsupport
org.eclipse.jst.jsf.test.util
org.eclipse.jst.jsf.ui
org.eclipse.jst.jsf.ui.tests
org.eclipse.jst.pagedesigner
org.eclipse.jst.pagedesigner.jsf.ui
org.eclipse.jst.pagedesigner.jsp.core
JSF Dependencies
javax.servlet
javax.servlet.jsp
org.apache.commons.el
org.eclipse.core.commands
org.eclipse.core.net
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.core.runtime.compatibility
org.eclipse.debug.ui
org.eclipse.draw2d
org.eclipse.emf
org.eclipse.emf.common
org.eclipse.emf.ecore
org.eclipse.emf.ecore.xmi
org.eclipse.emf.edit
org.eclipse.emf.edit.ui
org.eclipse.gef
org.eclipse.help
org.eclipse.jdt.core
org.eclipse.jdt.ui
org.eclipse.jem.util
org.eclipse.jface
org.eclipse.jface.text
org.eclipse.jst.common.frameworks
org.eclipse.jst.j2ee
org.eclipse.jst.j2ee.core
org.eclipse.jst.j2ee.web
org.eclipse.jst.jsp.core
org.eclipse.jst.jsp.ui
org.eclipse.swt
org.eclipse.ui
org.eclipse.ui.cheatsheets
org.eclipse.ui.editors
org.eclipse.ui.forms
org.eclipse.ui.ide
org.eclipse.ui.workbench.texteditor
org.eclipse.wst.common.core
org.eclipse.wst.common.emf
org.eclipse.wst.common.emfworkbench.integration
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.project.facet.ui
org.eclipse.wst.common.ui
org.eclipse.wst.common.ui.properties
org.eclipse.wst.common.uriresolver
org.eclipse.wst.css.core
org.eclipse.wst.html.core
org.eclipse.wst.html.ui
org.eclipse.wst.internet.cache
org.eclipse.wst.sse.core
org.eclipse.wst.sse.ui
org.eclipse.wst.validation
org.eclipse.wst.web
org.eclipse.wst.xml.core
org.eclipse.wst.xml.ui
org.junit
JPT
org.eclipse.jpt
org.eclipse.jpt.core
org.eclipse.jpt.core.tests
org.eclipse.jpt.core.tests.extension.resource
org.eclipse.jpt.db
org.eclipse.jpt.db.ui
org.eclipse.jpt.doc.user
org.eclipse.jpt.gen
org.eclipse.jpt.ui
org.eclipse.jpt.utility
org.eclipse.jpt.utility.tests
JPT Dependencies
org.eclipse.core.commands
org.eclipse.core.expressions
org.eclipse.core.filebuffers
org.eclipse.core.resources
org.eclipse.core.runtime
org.eclipse.datatools.connectivity.ui
org.eclipse.datatools.sqltools.editor.core
org.eclipse.draw2d
org.eclipse.emf.ecore
org.eclipse.emf.ecore.xmi
org.eclipse.emf.edit.ui
org.eclipse.jdt.core
org.eclipse.jdt.ui
org.eclipse.jem
org.eclipse.jem.util
org.eclipse.jem.workbench
org.eclipse.jface
org.eclipse.jface.text
org.eclipse.jst.j2ee
org.eclipse.jst.j2ee.core
org.eclipse.jst.j2ee.ui
org.eclipse.text
org.eclipse.ui
org.eclipse.ui.ide
org.eclipse.ui.views.properties.tabbed
org.eclipse.ui.workbench.texteditor
org.eclipse.wst.common.emf
org.eclipse.wst.common.frameworks
org.eclipse.wst.common.frameworks.ui
org.eclipse.wst.common.modulecore
org.eclipse.wst.common.project.facet.core
org.eclipse.wst.common.project.facet.ui
org.eclipse.wst.sse.core
org.eclipse.wst.sse.ui
org.eclipse.wst.validation
org.eclipse.wst.web.ui
org.eclipse.wst.xml.core
org.eclipse.xsd
org.junit
digraph finite_state_machine
{
node [style = filled];
"WST Common" [fillcolor = darkolivegreen3];
"WST Common" -> "JEM";
"JST Common" [fillcolor = darkolivegreen3];
"JST Common" -> "ModuleCore";
"JST Common" -> "WST Common";
"JST Common" -> "JEM";
"JST Common" -> "Faceted Project Framework";
"JST Common" -> "Validation Framework";
"JST Common" -> "EMF Extensions";
"ModuleCore" [fillcolor = darkolivegreen3];
"ModuleCore" -> "WST Common";
"ModuleCore" -> "JEM";
"ModuleCore" -> "Faceted Project Framework";
"ModuleCore" -> "Validation Framework";
"ModuleCore" -> "EMF Extensions";
"Validation Framework" [fillcolor = darkolivegreen3];
"Validation Framework" -> "WST Common";
"Validation Framework" -> "JEM";
"Validation Framework" -> "Faceted Project Framework";
"Faceted Project Framework" [fillcolor = darkolivegreen3];
"JEM" [fillcolor = darkolivegreen3];
"Snippets" [fillcolor = darkolivegreen3];
"EMF Extensions" [fillcolor = darkolivegreen3];
"EMF Extensions" -> "WST Common";
"EMF Extensions" -> "JEM";
"EMF Extensions" -> "Faceted Project Framework";
"EMF Extensions" -> "Validation Framework";
"Common Tests" [fillcolor = darkolivegreen3];
"Common Tests" -> "ModuleCore";
"Common Tests" -> "WST Common";
"Common Tests" -> "JEM";
"Common Tests" -> "EMF Extensions";
"Server Tools";
"Server Tools" -> "ModuleCore";
"Server Tools" -> "WST Common";
"Server Tools" -> "Java EE";
"Server Tools" -> "Faceted Project Framework";
"Source Editors" [fillcolor = darkolivegreen3];
"Source Editors" -> "ModuleCore";
"Source Editors" -> "WST Common";
"Source Editors" -> "JEM";
"Source Editors" -> "Faceted Project Framework";
"Source Editors" -> "Validation Framework";
"Source Editors" -> "EMF Extensions";
"Web Services";
"Web Services" -> "ModuleCore";
"Web Services" -> "WST Common";
"Web Services" -> "JST Common";
"Web Services" -> "JEM";
"Web Services" -> "Java EE";
"Web Services" -> "Server Tools";
"Web Services" -> "Faceted Project Framework";
"Web Services" -> "Source Editors";
"Web Services" -> "EJB";
"Web Services" -> "Common Tests";
"Web Services" -> "EMF Extensions";
"Web Services" -> "Validation Framework";
"Java EE";
"Java EE" -> "ModuleCore";
"Java EE" -> "WST Common";
"Java EE" -> "JST Common";
"Java EE" -> "JEM";
"Java EE" -> "Server Tools";
"Java EE" -> "Source Editors";
"Java EE" -> "Faceted Project Framework";
"Java EE" -> "Common Tests";
"Java EE" -> "EJB";
"Java EE" -> "Web Services";
"Java EE" -> "EMF Extensions";
"Java EE" -> "Validation Framework";
"EJB";
"EJB" -> "ModuleCore";
"EJB" -> "WST Common";
"EJB" -> "JST Common";
"EJB" -> "JEM";
"EJB" -> "Java EE";
"EJB" -> "Server Tools";
"EJB" -> "Faceted Project Framework";
"EJB" -> "EMF Extensions";
"EJB" -> "Validation Framework";
"JSF" [fillcolor = darkolivegreen3];
"JSF" -> "ModuleCore";
"JSF" -> "WST Common";
"JSF" -> "JST Common";
"JSF" -> "JEM";
"JSF" -> "Java EE";
"JSF" -> "Faceted Project Framework";
"JSF" -> "Source Editors";
"JSF" -> "EMF Extensions";
"JSF" -> "Validation Framework";
"JPT" [fillcolor = darkolivegreen3];
"JPT" -> "ModuleCore";
"JPT" -> "WST Common";
"JPT" -> "JEM";
"JPT" -> "Java EE";
"JPT" -> "Faceted Project Framework";
"JPT" -> "Source Editors";
"JPT" -> "EMF Extensions";
"JPT" -> "Validation Framework";
}
Attachment:
Description: big.picture.png
