[mdt-papyrus.dev] [Java reverse]: Oxygen.1 & Papyrue Designer: does not

[Francis ANDRE <francis.andre.kampbell@xxxxxxxxx>]

Hi

By following strictly the steps described here http://wiki.eclipse.org/Java_reverse_engineering#Installation_instructions, I do not get a valid Class Diagram within a new created Model

1. You can install it by using the Papyrus Software Designer update-site (for Oxygen): http://download.eclipse.org/modeling/mdt/papyrus/components/designer          DONE
2. Then select "Papyrus Java profile, library and code generation (Incubation)" feature. You need JDT installed (which comes with most Eclipse packages).                                   DONE

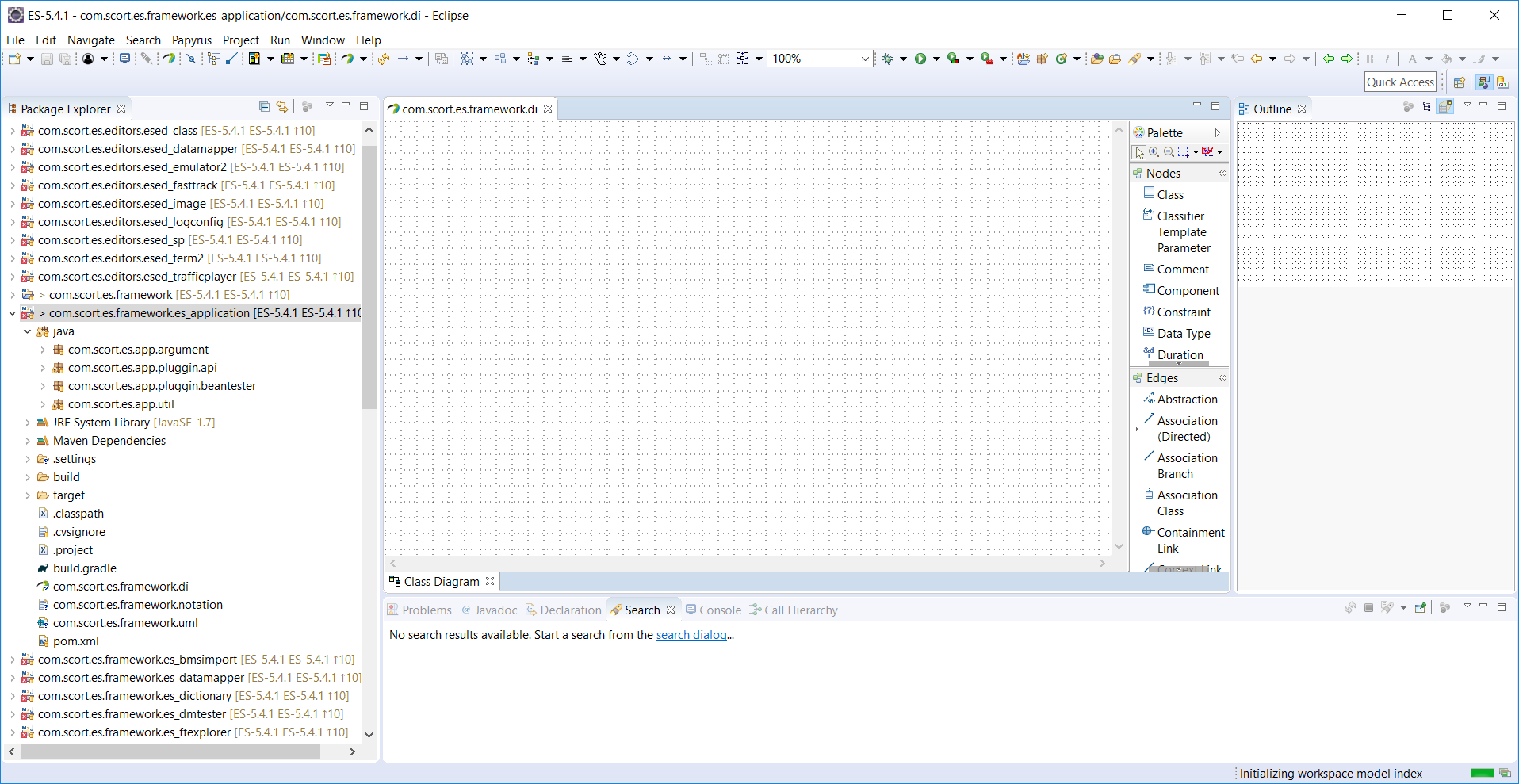

3. Then Drag & Drop a package into the Class Diagram as displayed below

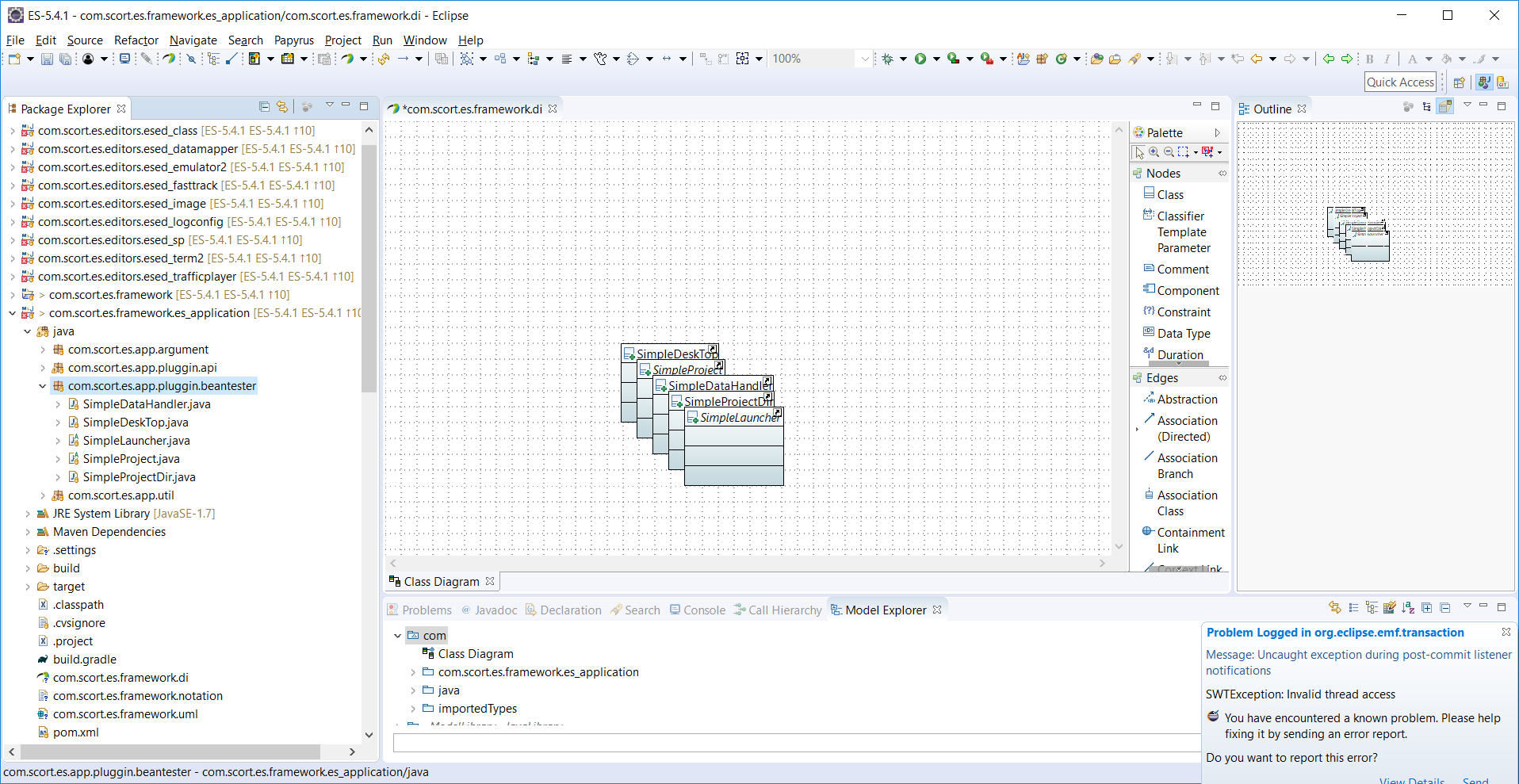

The resulting class are empty and no association are displayed.
What I am missing for getting a working Java reversed model?
TIA for any suggestion.

Eclipse Java EE IDE for Web Developers.

Version: Oxygen.1a Release (4.7.1a)
Build id: 20171005-1200

  Papyrus Java profile, library and code generation (Incubation)    1.0.5    org.eclipse.papyrus.designer.languages.java.feature.feature.group    Eclipse Modeling Project
