Re: [henshin-user] delete node problem
|
I'm sorry I think I'm just very bad at explaining and wasn't precise enough. I've been running a few other examples already and I run it through a Java class as you said but the transformation wizard still accepts them as there is a match so it just doesn't
change anything after it runs. I didn't include it because the output doesn't matter for me it's just finding a match that matters so the transformation wizard is enough. And the java class doesn't find a match either because if it was there then 'apply transformation'
would work instead of giving an error, it just wouldn't change anything as it only makes changes in the behavior file.
So my problem is that the rule is correct but for some reason running it from the behavior file doesn't find a match (neither in editor nor the Java class) but it should because it exists and the connections ( :Behavior -> :MetamodelGD -> :PackageGD) are correct
because as I said the 'Third' rule works. So my problem is why doesn't it find a match for the 'First' rule -> deleting :EReference node when running it on the behavior file while it finds it when running on the ecore/gcs files (through both transformation
wizard and java).

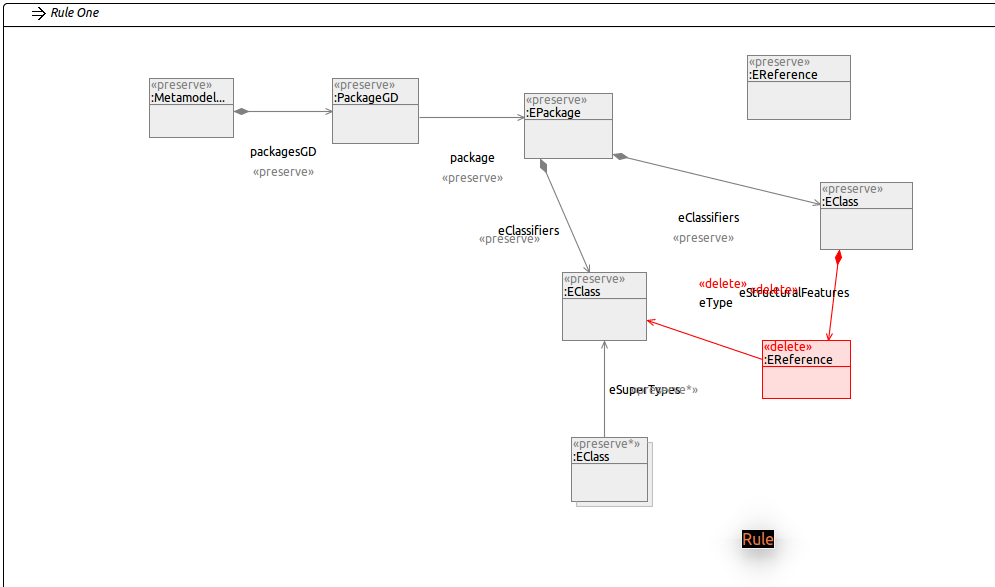

I've enclosed a screenshot which shows a rule that runs on server2.gcs(which references server2.ecore) file and finds a match. But after adding :Behavior node at the front and running it on server3.behavior it doesn't find it anymore -> which is my problem
from the beginning as it should find that match as it does the same it just references it through the behavior file so I don't understand why it doesn't.
Thank you,
Kinga
From: henshin-user-bounces@xxxxxxxxxxx <henshin-user-bounces@xxxxxxxxxxx> on behalf of Daniel Strüber <strueber@xxxxxxxxxxxxxxxxxxxxxxxxx>
Sent: 23 June 2017 12:09:24
To: Henshin Project user discussions
Subject: Re: [henshin-user] delete node problem
Hi Kinga,
Am 23.06.2017 um 12:39 schrieb Bojarczuk, Kinga:
Sorry bad-wording by the code I just meant running the transformation just by 'apply transformation' on the files. I just want it to find a match.
Ah, I see. Then the actual issue is as follows: The transformation wizard (which is executed by "apply transformation") currently does not account for references between models. In other works, it only supports "self-contained" models which do not depend on
other models. This could be considered a bug, so I will create a corresponding entry in our BugZilla.
In the meantime, you can run the transformation programmatically by using the API (see [1] for an example). There, dealing with references between models is simple: Just add all involved models to the same input EGraph.
[1]
http://git.eclipse.org/c/henshin/org.eclipse.emft.henshin.git/tree/plugins/org.eclipse.emf.henshin.examples/src/org/eclipse/emf/henshin/examples/bank/BankExample.java
I cannot anyhow specify that containment edge between EReference and EPackage in the Henshin editor, it doesnt let me connect them. And if that was the problem then why does it find a match in the ecore file but not in the behavior file?
Indeed, I now notice that my earlier interpretation was wrong: EReferences are contained in EClasses (and not in than EPackages). So the rule as it is should be correct.
Because my main problem is that it works/finds a match when run on the server2.ecore file but when adding a 'top layer' to run it on server3.behavior :Behavior -> :MetamodelGD - > :PackageGD it doesn't find a match anymore but these only provide the reference
to the ecore file so it doesn't make any sense.
Best regards,
Daniel
Hello Kina,
Am 23.06.2017 um 12:06 schrieb Bojarczuk, Kinga:
Hello,
I'm working on this project on e-motions files so basically there's a .behavior file which is linked to .gcs which is linked to .ecore file and together they represent a graph transformation system. So what I'm trying to do is to delete EReference from .ecore
file between the object that has some subclasses and another object. (First rule in my henshin file) This should find a match as it exists in a server2.ecore file however for some reason it doesn't.
To understand why the rule cannot be applied, it's crucial to know that Henshin aims to ensure that output models of a transformation are well-formed: in particular, it aims to ensure that rule applications never leave behind "dangling edges". In your example
rule, since you do not specify the deletion of the containment edge between the :EPackage and the :EReference, this edge would be left behind as dangling, so Henshin won't apply the rule.
To make the rule applicable, it should be sufficient to specify the deletion of the aforementioned containment edge. (Another option is to the set the "checkDangling" attribute in the rule to "false", however, in this case, you may lose well-formedness guarantees.)
When I run the code straight on the server2.ecore (by starting with EPackage in my rule) file or server2.gcs (by starting with MetamodelGD in my rule) file it works and finds a match but when running on server3.behavior file something suddenly prevents it
from finding a match which is really weird as .behavior file just provides a reference to the other files so since it works when run straight on them it should work on the the behavior file as well.
I can't find the code you mention in these statements. The zip file only contains the models and Henshin files.
Best regards,
Daniel
The Second rule shows the solution that we thought might work as Links in .behavior file are linked to EReferences so we thought this might prevent deleting EReferences but it doesn't work either.
The Third rule shows something that works but is a rather 'unclean solution' as it only deletes all the edges and doesn't actually delete the node.
So any idea why running my rule on .behavior file suddenly prevents it from finding a match? It seems really weird so I'd appreciate some help. I've included a zip file with my project.
Thank you,
Kinga
