Sravan,
I see! I really only want my text to be bigger, without the
icons looking ugly so the option helps with that. But I can
certainly imagine with an UHD display, I might want 200% scaling,
which Windows doesn't support (and effectively makes my UHD
built-in monitor's high resolution useless). But in that case,
the icons probably won't look choppy and messy...

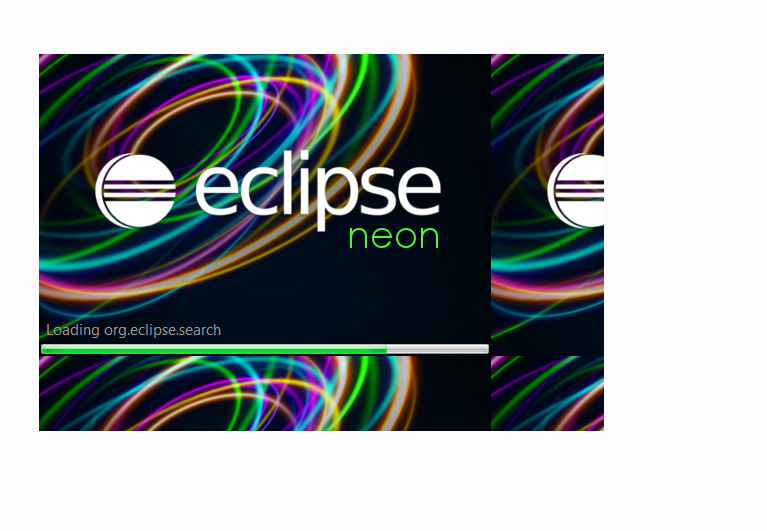

In any case, I think this relates to the splash screen issue as
well. If I add that option to the eclipse.ini, the splash screen
looks good for a while, but then it looks like this:

So there's still something not quite right going on with the
splash screen related to this auto scaling.

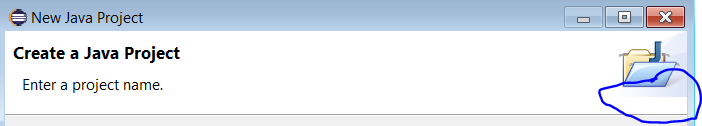

I know from previous experience that the font scaling also causes
other ugliness, e.g., the wizard icons are attached to the upper
right rather than the lower right, so the banner doesn't look so
nice:

Regards,
Ed
On 06.05.2016 14:14, Sravan K
Lakkimsetti wrote:
Hi Ed,
The image Scale up is related to hidpi support introduced in
Eclipse M6. In M6 we supported 100% 150% and 200%. In M7 we
started supporting scaling level in multiples of 25%. From the
screen shot I guess you have the scaling set to 125%. So the UI
is scaled to 125%. there are two ways to stop scaling

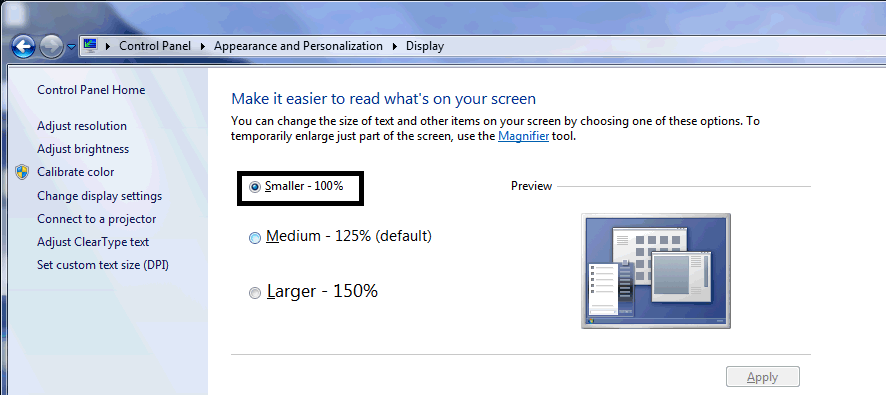

- Set the display settings to 100% as shown below
- Disable scaling using the flag -Dswt.enable.autoScale=false you can add this to eclipse.ini as well.
Thanks and Regards,
Sravan
Sravan Kumar Lakkimsetti
IBM India Pvt Ltd,
Embassy Golf Links Business Park, D Block,
Off Indiranagar-Kormangla Inner Ring Road,
Bangalore - 560071, India
Phone: 91-80-41776858
cross-project-issues-dev-request---06-05-2016
05:15:40 PM---Send cross-project-issues-dev mailing list
submissions to cross-project-issues-dev@xxxxxxxxxxx
From: cross-project-issues-dev-request@xxxxxxxxxxx
To: cross-project-issues-dev@xxxxxxxxxxx
Date: 06-05-16
05:15 PM
Subject: cross-project-issues-dev
Digest, Vol 124, Issue 5
Sent by: cross-project-issues-dev-bounces@xxxxxxxxxxx
Send cross-project-issues-dev mailing list submissions to
cross-project-issues-dev@xxxxxxxxxxx
To subscribe or unsubscribe via the World Wide Web, visit
https://dev.eclipse.org/mailman/listinfo/cross-project-issues-dev
or, via email, send a message with subject or body 'help' to
cross-project-issues-dev-request@xxxxxxxxxxx
You can reach the person managing the list at
cross-project-issues-dev-owner@xxxxxxxxxxx
When replying, please edit your Subject line so it is more
specific
than "Re: Contents of cross-project-issues-dev digest..."
Today's Topics:
1. Eclipse Neon Looks Strange and Misbehaves (Ed Merks)
----------------------------------------------------------------------
Message: 1
Date: Fri, 6 May 2016 13:45:03 +0200
From: Ed Merks <ed.merks@xxxxxxxxx>
To: Cross project issues
<cross-project-issues-dev@xxxxxxxxxxx>
Subject: [cross-project-issues-dev] Eclipse Neon Looks Strange
and
Misbehaves
Message-ID:
<9457fed5-8336-2fba-879d-5250bc3d8532@xxxxxxxxx>
Content-Type: text/plain; charset="utf-8"; Format="flowed"
Hi,
When I install the Eclipse Eierlegende Wollmilchsau for Neon M7,
there
are some units with strange licenses present
Once the installation launches, the splash screen starts out
nice, but
at some point it becomes pixelated like this:
After that, the state it comes up in isn't lovely. Several
technologies
feel the immediate need to prompt the user, and even to open a
console.
Ignoring those problems, the IDE does not look pretty.
Notice that all the toolbar buttons are all bigger than they
were in
Mars. I.e., they're not showing in their native resolution but
are
scaled up. It looks sloppy in my opinion. How can I get back
the look
I had before? Note that this problem occurs for all packages.
The error log is quite full of problems:
One exception of them occurs for all packages. Why is this file
expected to exist at this location?
java.io.FileNotFoundException:
D:\sandbox\USER-HOME\jee-latest\eclipse\introData.xml (The
system cannot
find the file specified)
at java.io.FileInputStream.open0(Native Method)
at java.io.FileInputStream.open(FileInputStream.java:195)
at
java.io.FileInputStream.<init>(FileInputStream.java:138)
at
java.io.FileInputStream.<init>(FileInputStream.java:93)
at
sun.net.www.protocol.file.FileURLConnection.connect(FileURLConnection.java:90)
at
sun.net.www.protocol.file.FileURLConnection.getInputStream(FileURLConnection.java:188)
at
com.sun.org.apache.xerces.internal.impl.XMLEntityManager.setupCurrentEntity(XMLEntityManager.java:623)
at
com.sun.org.apache.xerces.internal.impl.XMLVersionDetector.determineDocVersion(XMLVersionDetector.java:189)
at
com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:812)
at
com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:777)
at
com.sun.org.apache.xerces.internal.parsers.XMLParser.parse(XMLParser.java:141)
at
com.sun.org.apache.xerces.internal.parsers.DOMParser.parse(DOMParser.java:243)
at
com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderImpl.parse(DocumentBuilderImpl.java:339)
at
javax.xml.parsers.DocumentBuilder.parse(DocumentBuilder.java:177)
at
org.eclipse.ui.internal.intro.universal.IntroData.parse(IntroData.java:159)
at
org.eclipse.ui.internal.intro.universal.IntroData.initialize(IntroData.java:63)
at
org.eclipse.ui.internal.intro.universal.IntroData.<init>(IntroData.java:47)
at
org.eclipse.ui.internal.intro.universal.UniversalIntroConfigurer.loadData(UniversalIntroConfigurer.java:533)
at
org.eclipse.ui.internal.intro.universal.UniversalIntroConfigurer.<init>(UniversalIntroConfigurer.java:55)
We can't really expect David to police all these things. If
you
contribute something to the train, please make sure you properly
test
the impact of what you contribute in combination with all the
other
things being contributed. The all-in-one product makes that
very easy...
Regards,
Ed
