Re: [cross-project-issues-dev] Eclipse Neon Looks Strange and Misbehaves (Ed Merks)

Hi Ed,

The image Scale up is related to hidpi support introduced in Eclipse M6. In M6 we supported 100% 150% and 200%. In M7 we started supporting scaling level in multiples of 25%. From the screen shot I guess you have the scaling set to 125%. So the UI is scaled to 125%. there are two ways to stop scaling

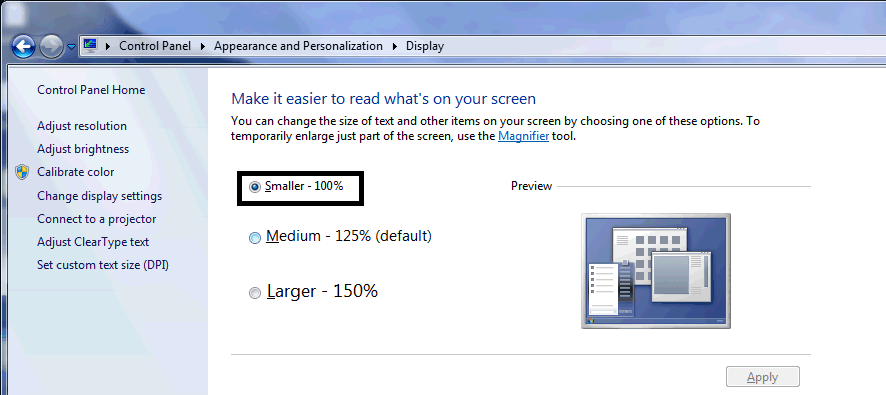

  • Set the display settings to 100% as shown below
  • Disable scaling using the flag -Dswt.enable.autoScale=false you can add this to eclipse.ini as well.


Thanks and Regards,
Sravan

Sravan Kumar Lakkimsetti
IBM India Pvt Ltd,
Embassy Golf Links Business Park, D Block,
Off Indiranagar-Kormangla Inner Ring Road,
Bangalore - 560071, India
Phone: 91-80-41776858

Inactive hide details for cross-project-issues-dev-request---06-05-2016 05:15:40 PM---Send cross-project-issues-dev mailing liscross-project-issues-dev-request---06-05-2016 05:15:40 PM---Send cross-project-issues-dev mailing list submissions to cross-project-issues-dev@xxxxxxxxxxx

From: cross-project-issues-dev-request@xxxxxxxxxxx
To: cross-project-issues-dev@xxxxxxxxxxx
Date: 06-05-16 05:15 PM
Subject: cross-project-issues-dev Digest, Vol 124, Issue 5
Sent by: cross-project-issues-dev-bounces@xxxxxxxxxxx




Send cross-project-issues-dev mailing list submissions to
cross-project-issues-dev@xxxxxxxxxxx

To subscribe or unsubscribe via the World Wide Web, visit
https://dev.eclipse.org/mailman/listinfo/cross-project-issues-dev
or, via email, send a message with subject or body 'help' to
cross-project-issues-dev-request@xxxxxxxxxxx

You can reach the person managing the list at
cross-project-issues-dev-owner@xxxxxxxxxxx

When replying, please edit your Subject line so it is more specific
than "Re: Contents of cross-project-issues-dev digest..."


Today's Topics:

  1. Eclipse Neon Looks Strange and Misbehaves (Ed Merks)


----------------------------------------------------------------------

Message: 1
Date: Fri, 6 May 2016 13:45:03 +0200
From: Ed Merks <ed.merks@xxxxxxxxx>
To: Cross project issues <cross-project-issues-dev@xxxxxxxxxxx>
Subject: [cross-project-issues-dev] Eclipse Neon Looks Strange and
Misbehaves
Message-ID: <9457fed5-8336-2fba-879d-5250bc3d8532@xxxxxxxxx>
Content-Type: text/plain; charset="utf-8"; Format="flowed"

Hi,

When I install the Eclipse Eierlegende Wollmilchsau for Neon M7, there
are some units with strange licenses present

Once the installation launches, the splash screen starts out nice, but
at some point it becomes pixelated like this:

After that, the state it comes up in isn't lovely.  Several technologies
feel the immediate need to prompt the user, and even to open a console.


Ignoring those problems, the IDE does not look pretty.

Notice that all the toolbar buttons are all bigger than they were in
Mars.  I.e., they're not showing in their native resolution but are
scaled up.  It looks sloppy in my opinion.  How can I get back the look
I had before?  Note that this problem occurs for all packages.

The error log is quite full of problems:

One exception of them occurs for all packages.  Why is this file
expected to exist at this location?

java.io.FileNotFoundException:
D:\sandbox\USER-HOME\jee-latest\eclipse\introData.xml (The system cannot
find the file specified)
    at java.io.FileInputStream.open0(Native Method)
    at java.io.FileInputStream.open(FileInputStream.java:195)
    at java.io.FileInputStream.<init>(FileInputStream.java:138)
    at java.io.FileInputStream.<init>(FileInputStream.java:93)
    at
sun.net.www.protocol.file.FileURLConnection.connect(FileURLConnection.java:90)
    at
sun.net.www.protocol.file.FileURLConnection.getInputStream(FileURLConnection.java:188)
    at
com.sun.org.apache.xerces.internal.impl.XMLEntityManager.setupCurrentEntity(XMLEntityManager.java:623)
    at
com.sun.org.apache.xerces.internal.impl.XMLVersionDetector.determineDocVersion(XMLVersionDetector.java:189)
    at
com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:812)
    at
com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:777)
    at
com.sun.org.apache.xerces.internal.parsers.XMLParser.parse(XMLParser.java:141)
    at
com.sun.org.apache.xerces.internal.parsers.DOMParser.parse(DOMParser.java:243)
    at
com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderImpl.parse(DocumentBuilderImpl.java:339)
    at javax.xml.parsers.DocumentBuilder.parse(DocumentBuilder.java:177)
    at
org.eclipse.ui.internal.intro.universal.IntroData.parse(IntroData.java:159)
    at
org.eclipse.ui.internal.intro.universal.IntroData.initialize(IntroData.java:63)
    at
org.eclipse.ui.internal.intro.universal.IntroData.<init>(IntroData.java:47)
    at
org.eclipse.ui.internal.intro.universal.UniversalIntroConfigurer.loadData(UniversalIntroConfigurer.java:533)
    at
org.eclipse.ui.internal.intro.universal.UniversalIntroConfigurer.<init>(UniversalIntroConfigurer.java:55)

We can't really expect David to police all these things.   If you
contribute something to the train, please make sure you properly test
the impact of what you contribute in combination with all the other
things being contributed.  The all-in-one product makes that very easy...


Regards,
Ed
