Hi Bob,

I've been playing a bit with 1.0.1. pretty cool the way Call Activity is opening the inner diagram. reaaly liked :)

seems that JBPM 5 don't support a lot of things... I'll investigate more asap about the support of Call Activity plus import bpmn2 with JBPM 6 engine.

btw, I could note that this version don't install in luna due to graphiti's newer version. have you already planned to create a build job for luna?

cheers,

Cristiano

2013/12/3 Bob Brodt <bbrodt@xxxxxxxxxx>

No you don't need to uninstall anything. Just set the Target Runtime to "None" in your project properties.

BTW, the 1.0.1 version of the editor (the one you currently have installed, I presume?) has online documentation linked to context help. Use F1 or "Help->Help Contents" and browse through the BPMN2 Modeler topic.

Bob

---

Well, I've installed everything from the p2 repository...

I've created a java project and only created Generic BPMN2 diagram...

So, I think I didn't understand a thing...

I need to uninstall the jBPM Target Runtime extension to be able to import a diagram from workspace...

and if I do that I can't use that diagram that I'm import other with JBPM ?

cheers,

Cristiano

2013/12/2 Bob Brodt <bbrodt@xxxxxxxxxx>

Hey Cristiano,

It looks like you're using the jBPM Target Runtime extension, correct? That would be the reason why you can only import Java types - jBPM doesn't support anything else, sorry :(

Cheers,

Bob

---

Hi Bob,

many thanks for pointing the right way... it seems to be awesome !
but I couldn't find the dialog that you have used for external files.

When I click on the Imports list of the "Definitions" property tab of the canvas Property sheet, I get only java type based Imports..

take a look on the screen shot, please...

2013/12/2 Bob Brodt <bbrodt@xxxxxxxxxx>

Hi Cristiano,

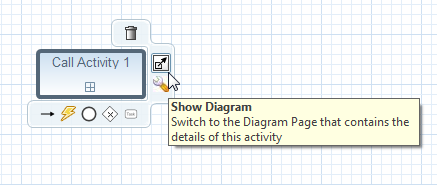

The double click gesture is used to display an element's property sheet. To open the contained process, use the "Show Diagram" context menu action, like so:

FYI, you can also reference an external process (a different bpmn file) from the Call Activity like this:

From the "Definitions" property tab of the canvas Property sheet, click "+" on the "Import List" table and select the process file from the "Import Dialog" as shown here:

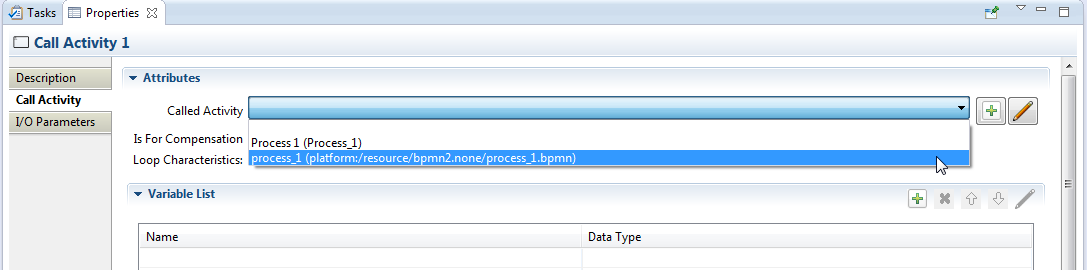

The imported process will then show up in the Called Activity combo box:

Now when you click the "Show Diagram" context menu button, it will open a new editor for the referenced process file.

---

Hello,

I could note that there is a way you can move an entire sub-process into a new diagram inside the same model file.
I could note that BPMN2 changed the way reusable sub-processes is constructed. Now there is a CallActivity that should be used to reuse a sub-process.

is there a way to open the inner subprocess diagram double clicking the CallActivity ?

thanks,

Cristiano
