Hi Cristiano,

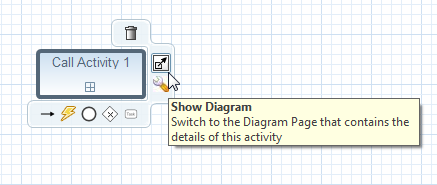

The double click gesture is used to display an element's property sheet. To open the contained process, use the "Show Diagram" context menu action, like so:
FYI, you can also reference an external process (a different bpmn file) from the Call Activity like this:

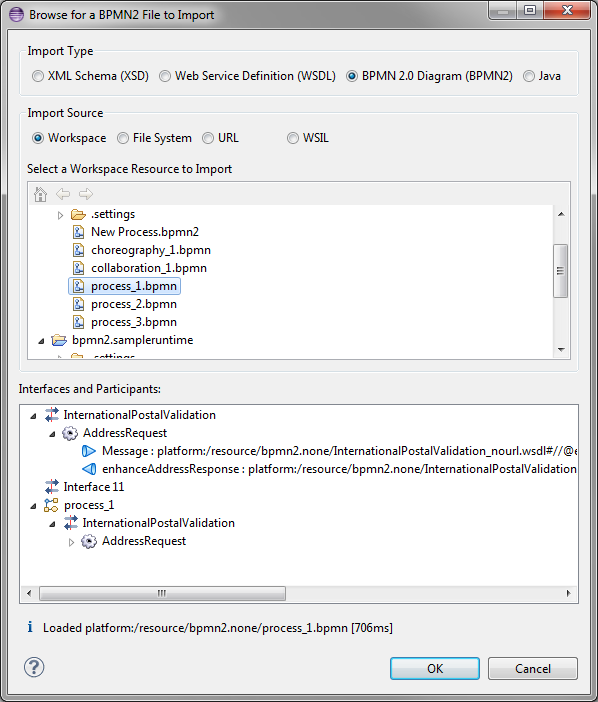

From the "Definitions" property tab of the canvas Property sheet, click "+" on the "Import List" table and select the process file from the "Import Dialog" as shown here:

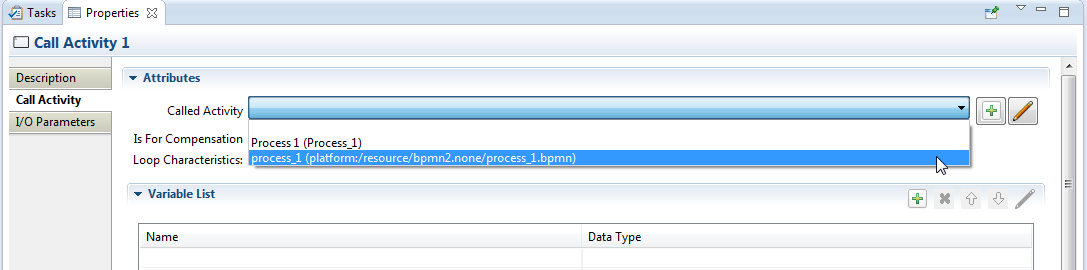

The imported process will then show up in the Called Activity combo box:
Now when you click the "Show Diagram" context menu button, it will open a new editor for the referenced process file.
I could note that there is a way you can move an entire sub-process into a new diagram inside the same model file.
I could note that BPMN2 changed the way reusable sub-processes is constructed. Now there is a CallActivity that should be used to reuse a sub-process.
is there a way to open the inner subprocess diagram double clicking the CallActivity ?
Cristiano
