Re: [tracecompass-dev] XML file for the additional XY chart

Dear Jonah,


Now I see what it meant by the branches; yes, I have switched to other branches and saw more!!


Thank you and have a nice day!!


Best,

Xiaolin


Xiaolin Liu

PhD student

KTH Royal Institute of Technology

EECS/TCS

Malvinas v 10, 114 28 Stockholm, Sweden

Mobile: +46-70-029 6605

xiaolinl@xxxxxxhttps://www.linkedin.com/in/aisliu/



From: Jonah Graham <jonah@xxxxxxxxxxxxxxxx>
Sent: Monday, October 21, 2024 2:49:38 PM
To: tracecompass developer discussions
Cc: Xiaolin Liu
Subject: Re: [tracecompass-dev] XML file for the additional XY chart

Hi Xiaolin,

> only uploaded three text files, and none of them is related to the software repository she mentions in the readme file

Not sure if I can help with all your questions. But for this part I wanted to check if you saw that there are multiple git branches and perhaps the software you are looking for is on one of the other ones. See the readme on main branch for a description of each branch's purpose.

HTH
Jonah



On Mon, Oct 21, 2024, 14:00 Xiaolin Liu via tracecompass-dev <tracecompass-dev@xxxxxxxxxxx> wrote:

Dear all,


I have tried to use this software https://github.com/SaiSreeG1/Trace-compass--Data-driven-analysis that could auto-generate the XML file Matthew has sent as the resource, but it seems like the lady only uploaded three text files, and none of them is related to the software repository she mentions in the readme file.

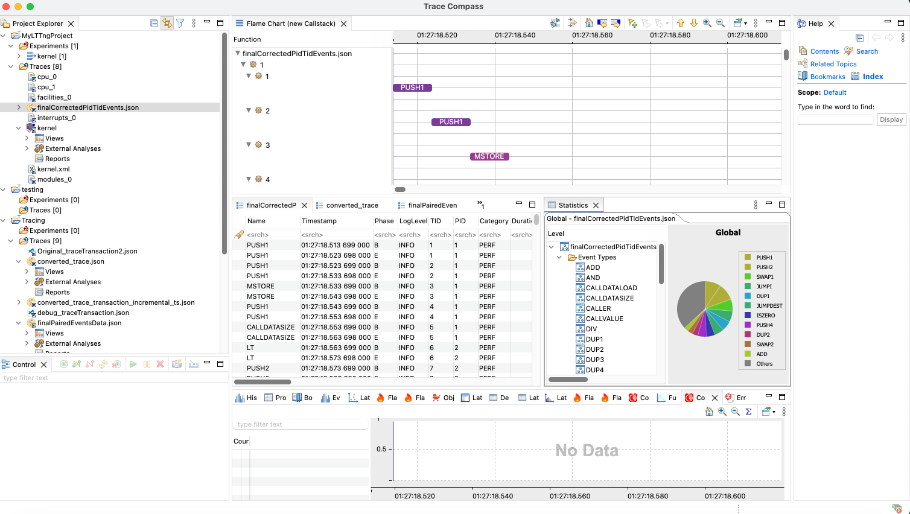

I had generated an XML file to plot the timestamp with the gas fee but could not get the imported XML file generated out the window with such a plot. I am not sure which part went wrong. I have tried two more files for the XY chart. These files are in the xmlXYchart folder.

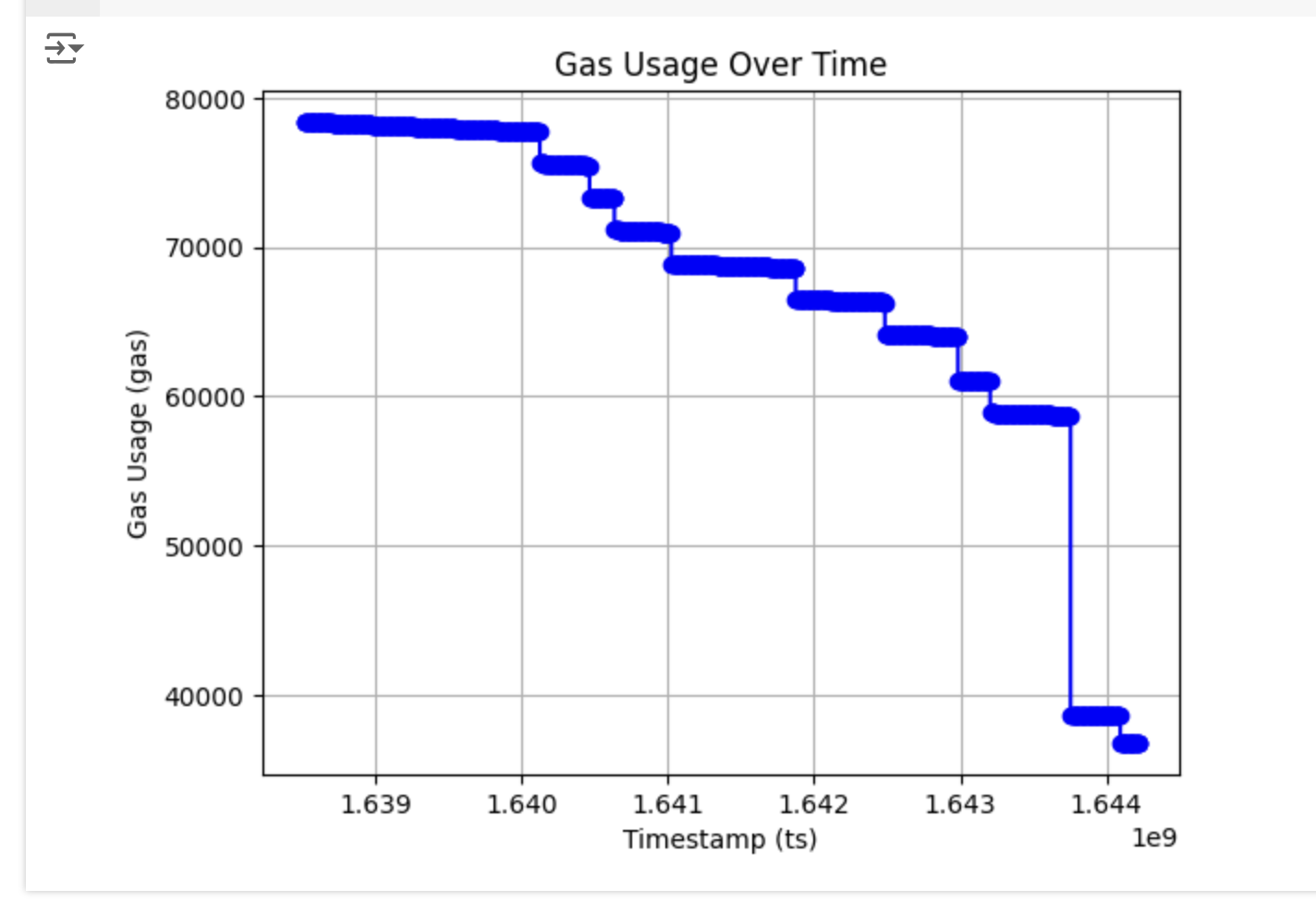

The target additional window I am trying to have in my trace compass view is this.


I can plot this easily by uploading the XML file folder with the name gasUsageChart.xml, which only contains the timestamp and the gas fee as the data pair.


Do you have any suggestions on how I could get the desired XY chart from the Eclipse Trace Compass? I did see some error messages, but those were complaining about the flame chart diagram, and I am not sure how to debug the plugin in that sense.

Best,
Xiaolin


Xiaolin Liu

PhD student

KTH Royal Institute of Technology

EECS/TCS

Malvinas v 10, 114 28 Stockholm, Sweden

Mobile: +46-70-029 6605

xiaolinl@xxxxxxhttps://www.linkedin.com/in/aisliu/
