Re: [tracecompass-dev] CallGraphAnalysis optimization
Geneviève,

When you say "more powerful queries" - do you think we can use the existing query2D on the StateSystem, e.g., to get a chunk at a time?

Rocky

On Tue, Nov 28, 2017 at 8:20 AM, Genevieve Bastien <gbastien+lttng@xxxxxxxxxxxx> wrote:

Hi Rocky,


Thanks for investigating this. You are right, the algorithm to iterate the state system callstack is a very naive one, using single queries to parse pretty much the whole state system. While it works and is easy to verify and test, it can be greatly improved.


One other step would be to revisit this algorithm and use other more powerful queries instead, but calls would not be visited chronologically so each function will have an unknown parent for a while... So this is easier said than done. But since with callstacks the parent ends after the child, reading the state system from end to beginning could help avoid unknown parents for a while.


But if we can do this, then multithreading it would be much easier! State Systems in read mode are [supposed to be] very thread-safe.


But indeed the easiest would be to save the callgraph to file. That's something I intended to experiment on in a near future for the "Generic callstack" feature of the incubator. Save it in such a way that it is also easy to produce statistics and flamegraphs for a time selection as well. (Shameless plug, here's a post I just wrote about the data-driven callstack in the incubator, introducing the feature by the same occasion [1]). I was thinking along the lines of saving it to a state system where the attributes represent the symbols and their children are their symbol callees and save the call count for each. Doing a full query at 'begin' and 'end' would allow to easily rebuild the callgraph. But it remains to be tested. If you have other ideas for this, we'd gladly discuss and review!


I'm also working on benchmark for this analysis so we have a baseline to compare the different approaches. Benchmarks are on gerrit and for the incubator so far, but I plan to make their equivalent for main Trace Compass.


Thanks,

Geneviève


[1] http://versatic.net/tracecompass/incubator/callstack/2017/11/27/tale-generic-callstack.html


On 2017-11-27 10:36 PM, Rocky Dunlap - NOAA Affiliate wrote:

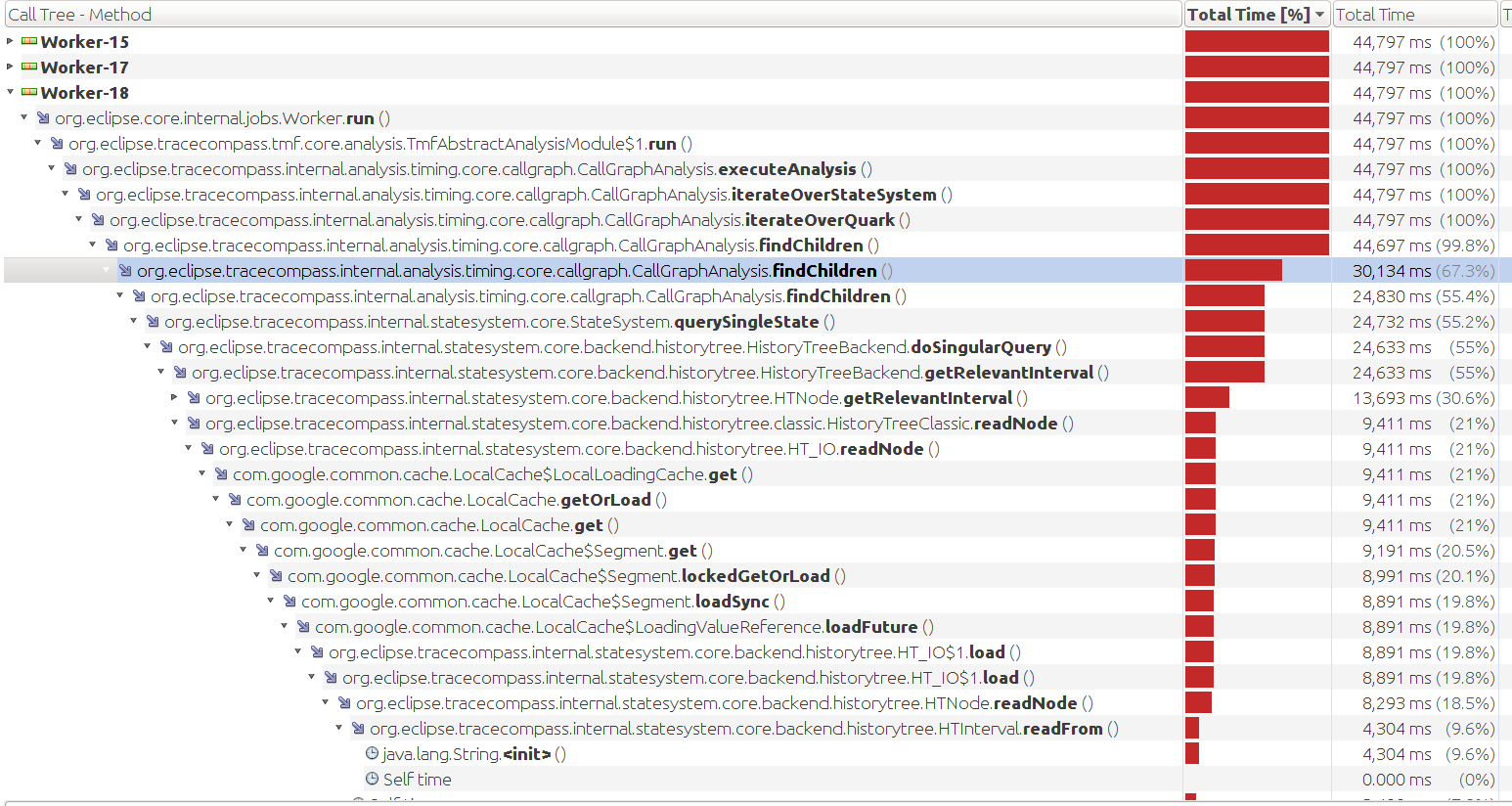

Our traces tend to have a lot of threads and generate large call stacks.  The CallGraphAnalysis is taking a bit longer to run that I would prefer, so I've done some very preliminary profiling.  Looks like almost all of the time is spent querying the state system:

Inline image 1

I have some options in mind, but before diving into anything, I thought I would get insight from this group about what is likely going to be the best approach.  Some ideas for your consideration:

1.  Could the CallGraphAnalysis state be written out to file instead of rebuilding it each time?

2.  It is currently single threaded.  What is the concurrency policy for StateSystem?  If more worker threads were used, what is the likelihood of speeding this up vs. just having a lot of contention on the back end?  Are the StateSystems thread safe?

3.  What is the indexing strategy, if any, and could that be improved for the kinds of queries issued by the CallGraphAnalysis?

I think these are roughly in the order of easiest to hardest.  There are probably other options as well.  Doing 1 at a minimum seems not too bad.  Thoughts?

Thanks,
Rocky
