So I have been playing
with the latest Annotation stuff and it seems a fair amount more useable. Here
are some comments:
For
Eric/John:
1)
John's TS integration is using the deprecated model classes. Should we
change to use the new stuff (I used the non deprecated version in my
annotation plug-in and was somewhat puzzled when it did work.
ED> this
is actually documented on the WIKI :-) (see http://wiki.eclipse.org/Tigerstripe_On-Going#EMF-based_Metamodel_.26_Migration
). The package is marked a deprecated to avoid setting false expectations, but
the new package is far from operational (IT IS THE EMF migration!). I don’t
expect this to work until a few more months (this is already very
optimistic!).
3) Can
we add the Annotation Property view to the default Tigerstripe
perspective.
ED> Committed that a few minutes ago.
4) It is
a pain not being able to use the EMF Java objects directly in the
plug-in model classes. Can some form of helper be added to simplify this.. at
present the only way is to create a Jar of the annotation plug-in and directly
add it to the plug-in project.
ED> I am aware of the problem, but the
fix is a little more involved than a helper I’m afraid. We want to pull into
the Generator classloader the proper content. The Classloader is built-up on
the fly when you run a generation. One option is to simply put the classpath
of all the plugins that have registered a Annotation type. I’ve raised 234733
to track that.
SJ> One half
way house would be to treat it as an EOBject
and use the eGet mechanism.
For
Yuri/Andrey
2)
The annotation view should really be treated as a debug tool. It would
be good to be able to delete specific annotations from the annotation property
view. (right click on one..).. so
3) I
*need* to be able to multiple line strings as properties on an annotation.
There seems to be currently no way to do this. Even if we can't define
'custom' annotation editors soon can we have a means of creating multiple line
strings.
ED> it was my understanding that this was in place (see
230916). However, I think this highlights that documentation is very scarce
and is dramatically missing. Andrey/Yuri, let’s talk about this on the phone
directly?

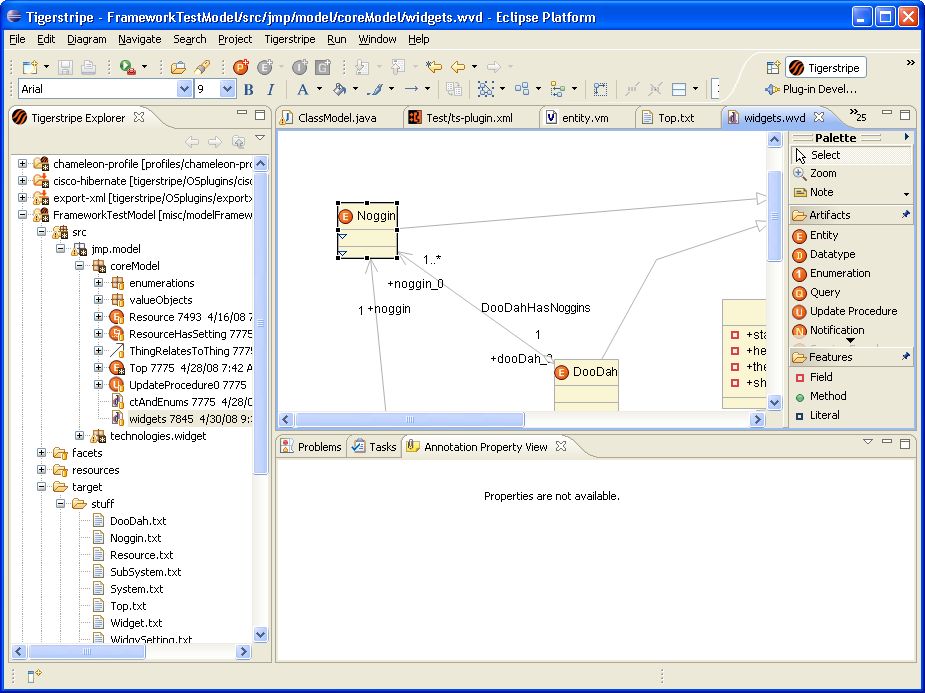

5) If no
annotation is defined for an element, it would be good to be able to create
one from the annotation property view.
So
rather than 'properties not available', show the annotation view without an
annotations defined and then allow a user to add. Maybe it would be good to
have add/delete buttons at the top of the view?
ED> So, you’re saying
display all possible annotations, even if they don’t exist? Maybe in a grey-ed
out color of something to avoid confusion?
6) The
above view should only appear if you can't define annotations on the selected
object...
