| Re: [sumo-user] [External] Re: [External] Re: Cars Overlapping in the Simulation |
For sure. Open the network in netedit. Then check which edges are affected by colouring edges by the ratio ''by given length/geometrical length''(visualisation settings >> streets). Using the standard colouring grey edges (ratio 1) are fine, while others have to be edited. Select these edges, inspect attributes and remove the value for "length". Save the network and that's it.
Best regards;
Mirko
A quick follow-up question: enabling "scale length with geometry" seems to work, but there are sections in my network where cars look very small and sections where cars look normal. Is there a way to solve the edge length mismatch so that cars appear to be the same throughout the network?
Thank you,Lorain.
On Wed, Oct 15, 2025 at 9:28 AM Mirko Barthauer via sumo-user <sumo-user@xxxxxxxxxxx> wrote:
_______________________________________________Please pay attention to the wording: "scale length with geometry" should remain enabled to avoid overlapping! Otherwise vehicles will overlap if edge length mismatches the actual geometry...
Am 15.10.2025 um 16:23 schrieb Lorain Salufu via sumo-user:
Hello,
I have done that as well; a vehicle scale of 1 and disabling scale length with geometry but the vehicles still look overlapped.

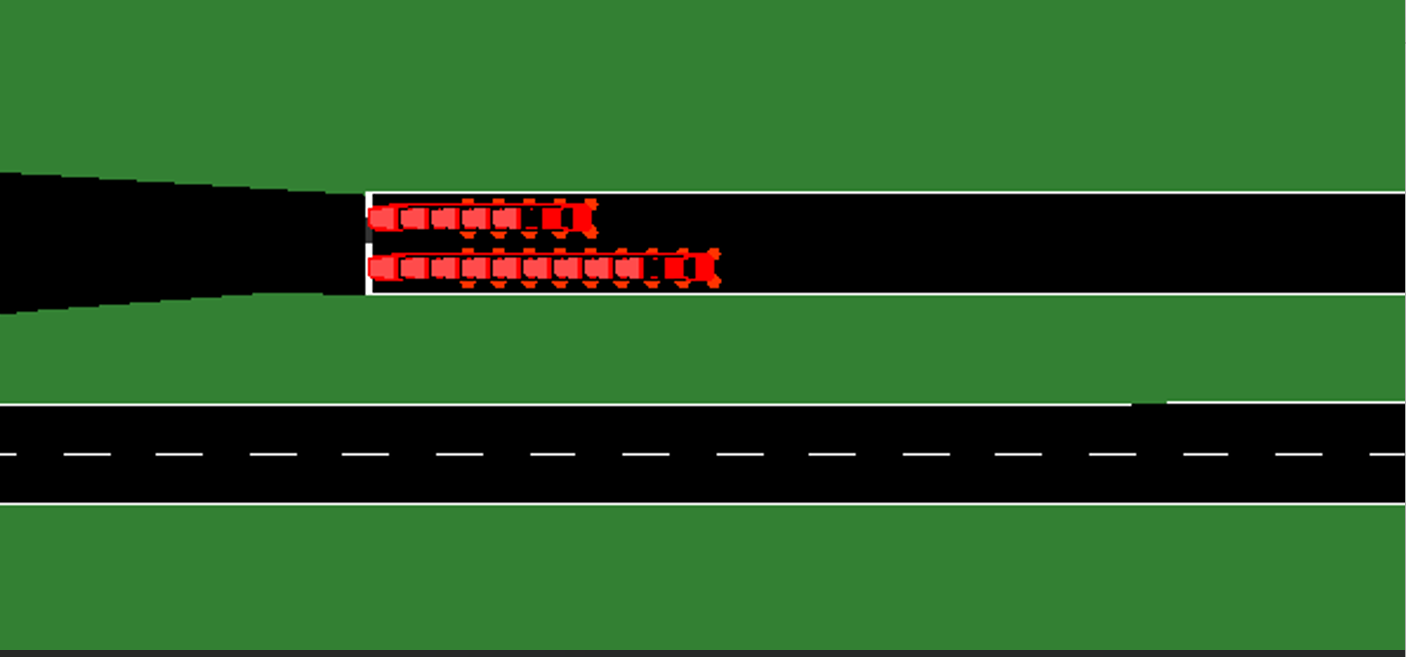

I have attached a snapshot of how the overlapping looks like.
Thank you,Lorain.
On Wed, Oct 15, 2025 at 9:12 AM Mirko Barthauer via sumo-user <sumo-user@xxxxxxxxxxx> wrote:
_______________________________________________Hi Lorain,
if you can rule out vehicle visualisation (vehicle scale should be 1), then another reason can be an (apparently unvoluntary) edge length-geometry mismatch. Usually the vehicle lengths are scaled to maintain the relative size with respect to the edge but that can be disabled. You can read more about that in the documentation.
Best regards,
MirkoAm 15.10.2025 um 16:01 schrieb Lorain Salufu via sumo-user:
Hello,
I am doing a microsimulation of a road network, and when I run my SUMO configuration, the cars appear to be as if they are overlapping. I have tried tweaking the minimum gap, the car following model, and the vehicles visualization settings, but nothing seems to work so far. Do you have any insights into what might be causing this issue? And the solution to it?
Thank you,Lorain.
