Re: [sumo-user] [External] Re: [External] Re: Cars Overlapping in the Si

[Lorain Salufu <lcs0041@xxxxxxx>]

A quick follow-up question: enabling "scale length with geometry" seems to work, but there are sections in my network where cars look very small and sections where cars look normal. Is there a way to solve the edge length mismatch so that cars appear to be the same throughout the network?

Thank you,

Lorain.

On Wed, Oct 15, 2025 at 9:28 AM Mirko Barthauer via sumo-user <sumo-user@xxxxxxxxxxx> wrote:

Please pay attention to the wording: "scale length with geometry" should remain enabled to avoid overlapping! Otherwise vehicles will overlap if edge length mismatches the actual geometry...

Am 15.10.2025 um 16:23 schrieb Lorain Salufu via sumo-user:

Hello,

I have done that as well; a vehicle scale of 1 and disabling scale length with geometry but the vehicles still look overlapped.

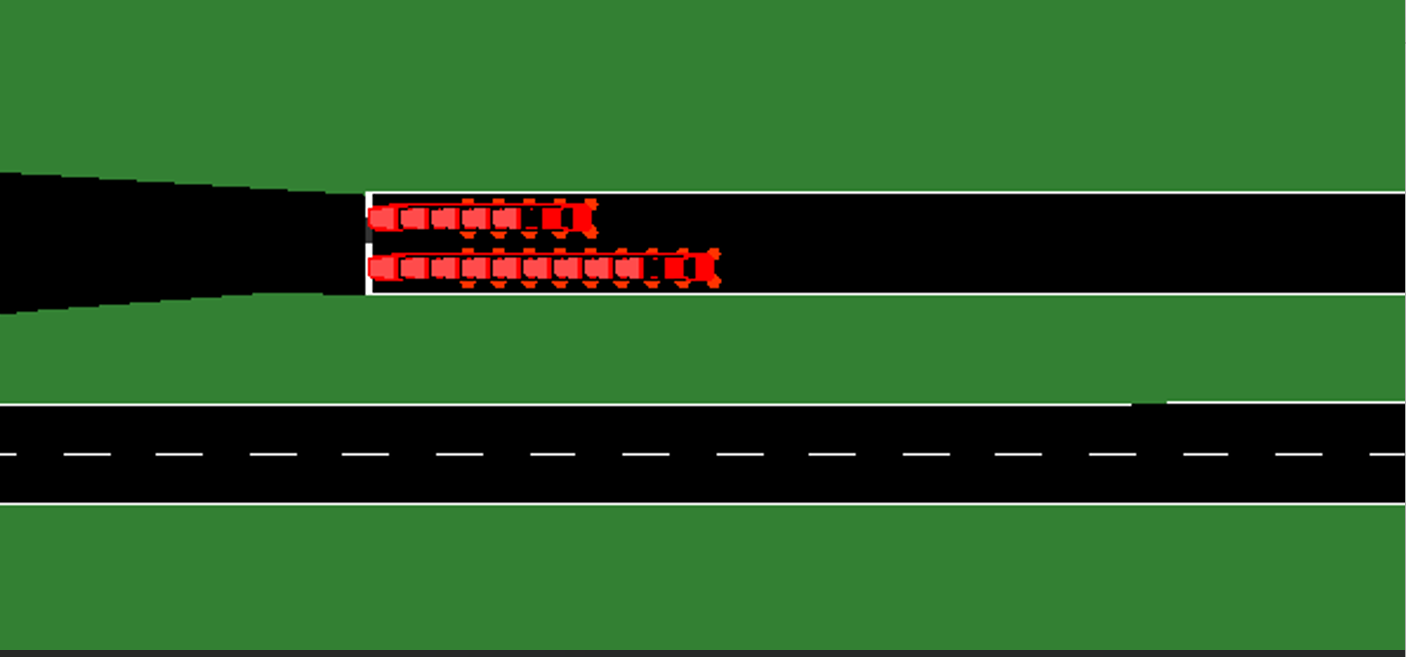

I have attached a snapshot of how the overlapping looks like.

Thank you,

Lorain.

On Wed, Oct 15, 2025 at 9:12 AM Mirko Barthauer via sumo-user <sumo-user@xxxxxxxxxxx> wrote:

Hi Lorain,

if you can rule out vehicle visualisation (vehicle scale should be 1), then another reason can be an (apparently unvoluntary) edge length-geometry mismatch. Usually the vehicle lengths are scaled to maintain the relative size with respect to the edge but that can be disabled. You can read more about that in the documentation.

Best regards,
Mirko

Am 15.10.2025 um 16:01 schrieb Lorain Salufu via sumo-user:

Hello,

I am doing a microsimulation of a road network, and when I run my SUMO configuration, the cars appear to be as if they are overlapping. I have tried tweaking the minimum gap, the car following model, and the vehicles visualization settings, but nothing seems to work so far. Do you have any insights into what might be causing this issue? And the solution to it?

Thank you,

Lorain.
