Re: [sumo-user] start macrosimulation
You can set netconvert option --shapefile.all-bidirectional to ensure bidirectional roads

Can you confirm that the shapes of municipalities are shown correctly in sumo-gui?
Can you show a small snippet of the imported polygon file?

Am Fr., 27. Juni 2025 um 19:22 Uhr schrieb Pedro Oliveira <pedro.engenhariae@xxxxxxxxx>:

Good afternoon,

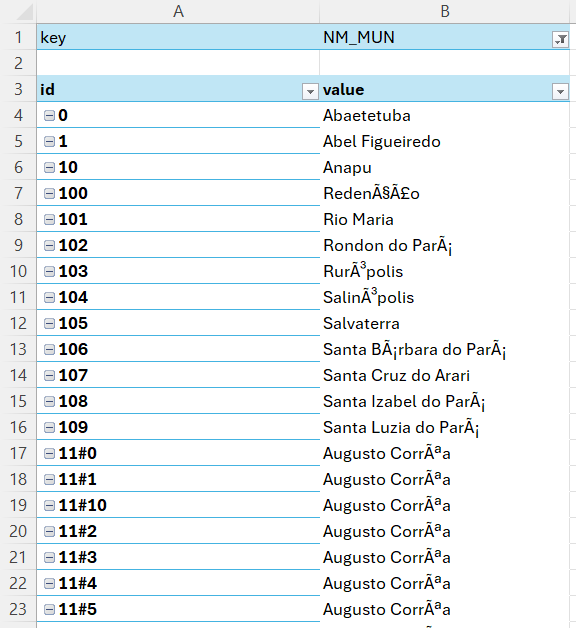

I was able to obtain the names of the municipalities by enabling the all-attributes option.

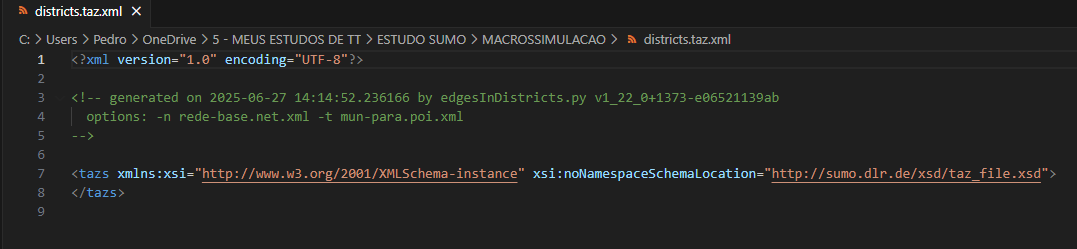

I can't run the edgeindistrict.py command, the result is like this.


Sds,

Pedro Oliveira


Em qui., 26 de jun. de 2025 às 16:35, Pedro Oliveira <pedro.engenhariae@xxxxxxxxx> escreveu:
Good afternoon,

I would like to know if in Sumo it is possible to obtain, when importing a shape to the TAZ file, the name of the location that is associated with the adopted ID.

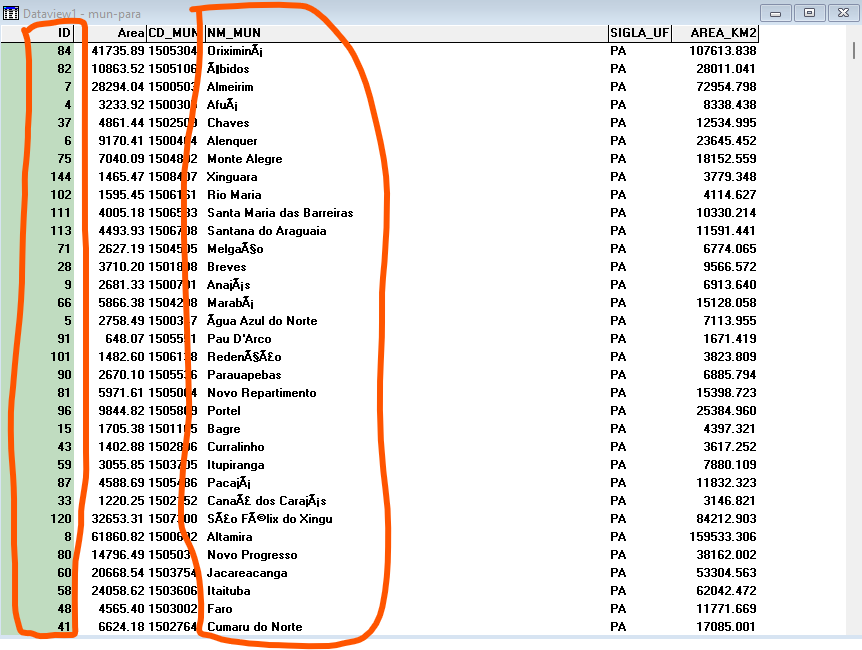

An example would be this.

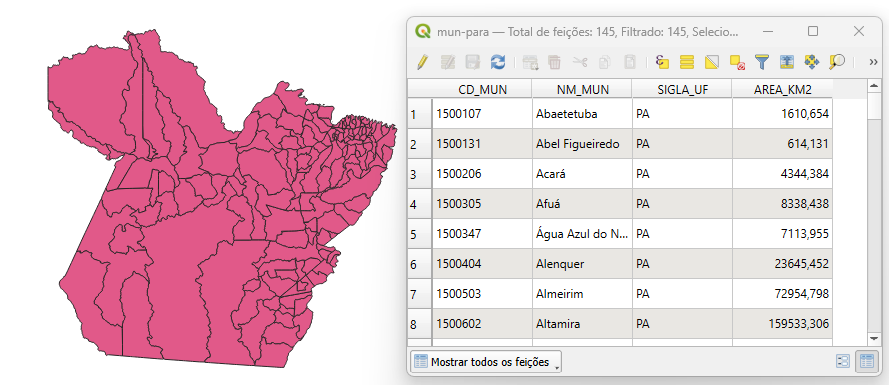

The shape converted to polygon comes from qgis.

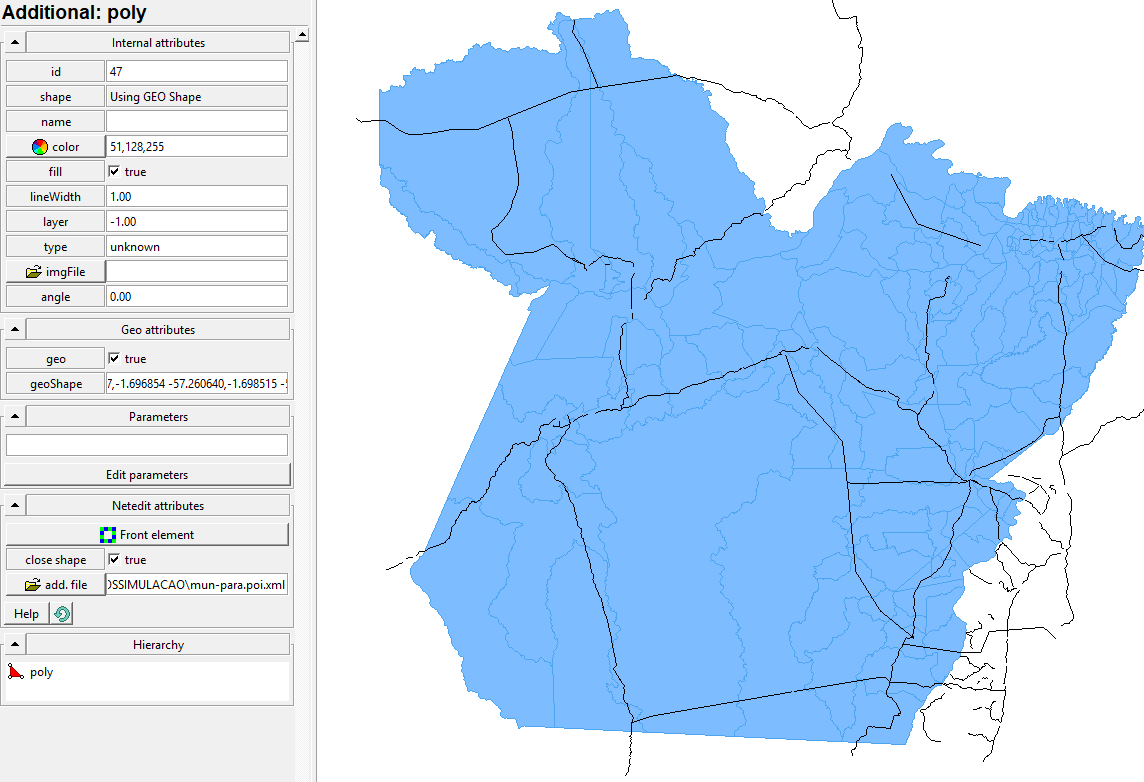

In net edit it looked like this

Since my OD matrix contains the names of the municipalities, I need to check which ID SUMO adopted for each city in the TAZ file.

Thank you in advance.

Sds,

Pedro Oliveira

Em sex., 20 de jun. de 2025 às 11:08, Pedro Oliveira <pedro.engenhariae@xxxxxxxxx> escreveu:
Good morning!

I started a project with SUMO for a macrosimulation.

Using netconvert and network merging, I imported the road system that was in shapefile format. At this point, I would like to know if there is a command that can generate the opposite direction of all edges and also correct the junctions after the procedure.

All my roads were inserted in one direction only.

After inserting the roads, I inserted the polygons of the municipalities using Additional and Shape. The polygons were generated by the polyconvert command from a shape. I do not know if this is the correct procedure.

I would like to know how to make each generated polygon have the ID but also carry with it the name of the polygon, that is, the name of the municipality so that I can associate the OD matrix.

So far, I have run the edgeindistricts.py command but it returned empty.

Sds,

Pedro Oliveira

Em qui., 19 de jun. de 2025 às 08:10, Jakob Erdmann via sumo-user <sumo-user@xxxxxxxxxxx> escreveu:
SUMO provides a tool to create TAZ definitions from <poly> elements: https://sumo.dlr.de/docs/Tools/District.html#edgesindistrictspy
The required <poly> elements can be obtained with polyconvert from any of the supported data sources (i.e. geojson, shapefile)

Am Do., 19. Juni 2025 um 02:50 Uhr schrieb Pedro Oliveira via sumo-user <sumo-user@xxxxxxxxxxx>:
Good evening, I am starting a microsimulation project involving a network of three Brazilian states.

 I can obtain the polygons of the municipalities, but I would like to know if there is a specific format in which I need to import the polygons so that they can be understood as TAZ in Net Edit.

I thought about obtaining the roads through Open Street Maps, but I don't know if it would have the area coverage (I will test this).

 When obtaining the TAZ polygons and the roads, is there any way to link the two automatically and then check the ID of the nodes that were linked in TAZ? My initial questions are these. Thank you in advance.

Sds,

Pedro Oliveira
