Re: [sumo-user] Error while loading route file

there is a problem with schema resolution in version 1.15.0 that appears when environment variable SUMO_HOME isn't set correctly.
The easiest solution is to upgrade to version 1.16.0 which is scheduled for release on the Jan 31th
Until then you can set option "--xml-validation never" as a work-around.
(or make sure SUMO_HOME points to the root directory of your SUMO installation).

Am Sa., 28. Jan. 2023 um 14:02 Uhr schrieb Sona S <ms.sona.12@xxxxxxxxx>:

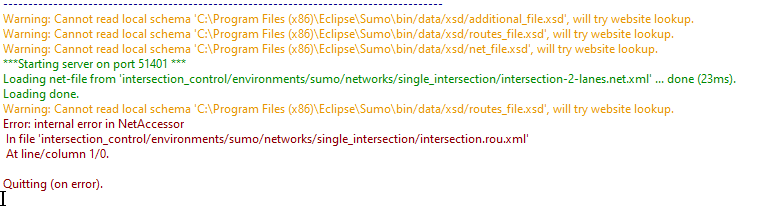

I am getting this error when simulation. Need help urgently. I have also added network and route file.


Network file

<?xml version="1.0" encoding="UTF-8"?>

<!-- generated on 2022-05-31 19:32:41 by Eclipse SUMO netedit Version 1.13.0
<?xml version="1.0" encoding="UTF-8"?>

<configuration xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/netconvertConfiguration.xsd">

    <input>
        <sumo-net-file value="/Users/student/IntersectionControl-main/intersection_control/environments/sumo/networks/single_intersection/intersection.net.xml"/>
    </input>

    <output>
        <output-file value="/Users/student/IntersectionControl-main/intersection_control/environments/sumo/networks/single_intersection/intersection.net.xml"/>
    </output>

    <processing>
        <geometry.min-radius.fix.railways value="false"/>
        <geometry.max-grade.fix value="false"/>
        <offset.disable-normalization value="true"/>
        <lefthand value="false"/>
    </processing>

    <junctions>
        <no-turnarounds value="true"/>
        <junctions.corner-detail value="5"/>
        <junctions.limit-turn-speed value="5.5"/>
        <rectangular-lane-cut value="false"/>
    </junctions>

    <pedestrian>
        <walkingareas value="false"/>
    </pedestrian>

    <report>
        <aggregate-warnings value="5"/>
    </report>

</configuration>
-->

<net version="1.9" junctionCornerDetail="5" limitTurnSpeed="5.50" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/net_file.xsd">

    <location netOffset="0.00,0.00" convBoundary="-300.00,-300.00,300.00,300.00" origBoundary="-10000000000.00,-10000000000.00,10000000000.00,10000000000.00" projParameter="!"/>

    <edge id=":intersection_0" function="internal">
        <lane id=":intersection_0_0" index="0" speed="6.53" length="9.11" shape="-1.60,7.30 -1.95,4.81 -3.00,3.02 -4.75,1.96 -7.20,1.60"/>
    </edge>
    <edge id=":intersection_1" function="internal">
        <lane id=":intersection_1_0" index="0" speed="13.89" length="14.50" shape="-1.60,7.30 -1.60,-7.20"/>
    </edge>
    <edge id=":intersection_2" function="internal">
        <lane id=":intersection_2_0" index="0" speed="8.00" length="14.19" shape="-1.60,7.30 -1.05,3.45 0.60,0.70 3.35,-0.95 7.20,-1.50"/>
    </edge>
    <edge id=":intersection_3" function="internal">
        <lane id=":intersection_3_0" index="0" speed="6.51" length="9.03" shape="7.20,1.70 4.75,2.05 3.00,3.10 1.95,4.85 1.60,7.30"/>
    </edge>
    <edge id=":intersection_4" function="internal">
        <lane id=":intersection_4_0" index="0" speed="13.89" length="14.40" shape="7.20,1.70 -7.20,1.60"/>
    </edge>
    <edge id=":intersection_5" function="internal">
        <lane id=":intersection_5_0" index="0" speed="8.02" length="14.27" shape="7.20,1.70 3.35,1.14 0.60,-0.53 -1.05,-3.31 -1.60,-7.20"/>
    </edge>
    <edge id=":intersection_6" function="internal">
        <lane id=":intersection_6_0" index="0" speed="6.53" length="9.11" shape="1.60,-7.20 1.95,-4.71 3.00,-2.93 4.75,-1.86 7.20,-1.50"/>
    </edge>
    <edge id=":intersection_7" function="internal">
        <lane id=":intersection_7_0" index="0" speed="13.89" length="14.50" shape="1.60,-7.20 1.60,7.30"/>
    </edge>
    <edge id=":intersection_8" function="internal">
        <lane id=":intersection_8_0" index="0" speed="8.00" length="14.19" shape="1.60,-7.20 1.05,-3.35 -0.60,-0.60 -3.35,1.05 -7.20,1.60"/>
    </edge>
    <edge id=":intersection_9" function="internal">
        <lane id=":intersection_9_0" index="0" speed="6.51" length="9.03" shape="-7.20,-1.60 -4.75,-1.95 -3.00,-3.00 -1.95,-4.75 -1.60,-7.20"/>
    </edge>
    <edge id=":intersection_10" function="internal">
        <lane id=":intersection_10_0" index="0" speed="13.89" length="14.40" shape="-7.20,-1.60 7.20,-1.50"/>
    </edge>
    <edge id=":intersection_11" function="internal">
        <lane id=":intersection_11_0" index="0" speed="8.02" length="14.27" shape="-7.20,-1.60 -3.35,-1.04 -0.60,0.62 1.05,3.41 1.60,7.30"/>
    </edge>

    <edge id="iE" from="E" to="intersection" priority="-1" length="300.00" shape="300.00,0.00 0.10,0.10">
        <lane id="iE_0" index="0" speed="13.89" length="300.00" shape="300.00,1.60 7.20,1.70"/>
    </edge>
    <edge id="iN" from="N" to="intersection" priority="-1" length="300.00">
        <lane id="iN_0" index="0" speed="13.89" length="300.00" shape="-1.60,300.00 -1.60,7.30"/>
    </edge>
    <edge id="iS" from="S" to="intersection" priority="-1" length="300.00">
        <lane id="iS_0" index="0" speed="13.89" length="300.00" shape="1.60,-300.00 1.60,-7.20"/>
    </edge>
    <edge id="iW" from="W" to="intersection" priority="-1" length="300.00">
        <lane id="iW_0" index="0" speed="13.89" length="300.00" shape="-300.00,-1.60 -7.20,-1.60"/>
    </edge>
    <edge id="oE" from="intersection" to="E" priority="-1" length="300.00" shape="0.10,0.10 300.00,0.00">
        <lane id="oE_0" index="0" speed="13.89" length="300.00" shape="7.20,-1.50 300.00,-1.60"/>
    </edge>
    <edge id="oN" from="intersection" to="N" priority="-1" length="300.00">
        <lane id="oN_0" index="0" speed="13.89" length="300.00" shape="1.60,7.30 1.60,300.00"/>
    </edge>
    <edge id="oS" from="intersection" to="S" priority="-1" length="300.00">
        <lane id="oS_0" index="0" speed="13.89" length="300.00" shape="-1.60,-7.20 -1.60,-300.00"/>
    </edge>
    <edge id="oW" from="intersection" to="W" priority="-1" length="300.00">
        <lane id="oW_0" index="0" speed="13.89" length="300.00" shape="-7.20,1.60 -300.00,1.60"/>
    </edge>

    <tlLogic id="intersection" type="static" programID="0" offset="0">
        <phase duration="35" state="GGGGGGGGGGGG"/>
    </tlLogic>

    <junction id="E" type="dead_end" x="300.00" y="0.00" incLanes="oE_0" intLanes="" shape="300.00,-0.00 300.00,-3.20 300.00,0.00"/>
    <junction id="N" type="dead_end" x="0.00" y="300.00" incLanes="oN_0" intLanes="" shape="0.00,300.00 3.20,300.00 0.00,300.00"/>
    <junction id="S" type="dead_end" x="0.00" y="-300.00" incLanes="oS_0" intLanes="" shape="0.00,-300.00 -3.20,-300.00 0.00,-300.00"/>
    <junction id="W" type="dead_end" x="-300.00" y="0.00" incLanes="oW_0" intLanes="" shape="-300.00,0.00 -300.00,3.20 -300.00,0.00"/>
    <junction id="intersection" type="traffic_light" x="0.00" y="0.00" incLanes="iN_0 iE_0 iS_0 iW_0" intLanes=":intersection_0_0 :intersection_1_0 :intersection_2_0 :intersection_3_0 :intersection_4_0 :intersection_5_0 :intersection_6_0 :intersection_7_0 :intersection_8_0 :intersection_9_0 :intersection_10_0 :intersection_11_0" shape="-3.20,7.30 3.20,7.30 3.64,5.08 4.20,4.30 4.98,3.74 5.98,3.41 7.20,3.30 7.20,-3.10 4.98,-3.56 4.20,-4.13 3.64,-4.92 3.31,-5.95 3.20,-7.20 -3.20,-7.20 -3.64,-4.98 -4.20,-4.20 -4.98,-3.64 -5.98,-3.31 -7.20,-3.20 -7.20,3.20 -4.98,3.66 -4.20,4.22 -3.64,5.02 -3.31,6.05">
        <request index="0"  response="000000000000" foes="000100010000" cont="0"/>
        <request index="1"  response="000000000000" foes="111100110000" cont="0"/>
        <request index="2"  response="000000000000" foes="110111110000" cont="0"/>
        <request index="3"  response="000000000000" foes="100010000000" cont="0"/>
        <request index="4"  response="000000000000" foes="100110000111" cont="0"/>
        <request index="5"  response="000000000000" foes="111110000110" cont="0"/>
        <request index="6"  response="000000000000" foes="010000000100" cont="0"/>
        <request index="7"  response="000000000000" foes="110000111100" cont="0"/>
        <request index="8"  response="000000000000" foes="110000110111" cont="0"/>
        <request index="9"  response="000000000000" foes="000000100010" cont="0"/>
        <request index="10" response="000000000000" foes="000111100110" cont="0"/>
        <request index="11" response="000000000000" foes="000110111110" cont="0"/>
    </junction>

    <connection from="iE" to="oN" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_3_0" tl="intersection" linkIndex="3" dir="r" state="O"/>
    <connection from="iE" to="oW" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_4_0" tl="intersection" linkIndex="4" dir="s" state="O"/>
    <connection from="iE" to="oS" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_5_0" tl="intersection" linkIndex="5" dir="l" state="O"/>
    <connection from="iN" to="oW" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_0_0" tl="intersection" linkIndex="2" dir="r" state="O"/>
    <connection from="iN" to="oS" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_1_0" tl="intersection" linkIndex="1" dir="s" state="O"/>
    <connection from="iN" to="oE" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_2_0" tl="intersection" linkIndex="0" dir="l" state="O"/>
    <connection from="iS" to="oE" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_6_0" tl="intersection" linkIndex="6" dir="r" state="O"/>
    <connection from="iS" to="oN" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_7_0" tl="intersection" linkIndex="7" dir="s" state="O"/>
    <connection from="iS" to="oW" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_8_0" tl="intersection" linkIndex="8" dir="l" state="O"/>
    <connection from="iW" to="oS" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_9_0" tl="intersection" linkIndex="9" dir="r" state="O"/>
    <connection from="iW" to="oE" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_10_0" tl="intersection" linkIndex="10" dir="s" state="O"/>
    <connection from="iW" to="oN" fromLane="0" toLane="0" pass="1" contPos="0.00" via=":intersection_11_0" tl="intersection" linkIndex="11" dir="l" state="O"/>

    <connection from=":intersection_0" to="oW" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":intersection_1" to="oS" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":intersection_2" to="oE" fromLane="0" toLane="0" dir="l" state="M"/>
    <connection from=":intersection_3" to="oN" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":intersection_4" to="oW" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":intersection_5" to="oS" fromLane="0" toLane="0" dir="l" state="M"/>
    <connection from=":intersection_6" to="oE" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":intersection_7" to="oN" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":intersection_8" to="oW" fromLane="0" toLane="0" dir="l" state="M"/>
    <connection from=":intersection_9" to="oS" fromLane="0" toLane="0" dir="r" state="M"/>
    <connection from=":intersection_10" to="oE" fromLane="0" toLane="0" dir="s" state="M"/>
    <connection from=":intersection_11" to="oN" fromLane="0" toLane="0" dir="l" state="M"/>

</net>

Route file

<?xml version="1.0" encoding="UTF-8"?>
<!-- generated on 2022-03-28 16:22:03 by Eclipse SUMO netedit Version 1.12.0-->

<routes xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/routes_file.xsd">
    <route id="SN" edges="iS oN"/>
    <route id="SE" edges="iS oE"/>
    <route id="NW" edges="iN oW"/>
    <route id="NE" edges="iN oE"/>
    <route id="SW" edges="iS oW"/>
    <route id="WS" edges="iW oS"/>
    <route id="WE" edges="iW oE"/>
    <route id="WN" edges="iW oN"/>
    <route id="EN" edges="iE oN"/>
    <route id="EW" edges="iE oW"/>
    <route id="ES" edges="iE oS"/>
    <route id="NS" edges="iN oS"/>
</routes>
