Re: [sumo-user] Export SUMO net as shapefile (or KML)

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

set option --internal  (which translates to sumolib.net.readNet(file, withInternal=True)

Am Do., 6. Okt. 2022 um 13:55 Uhr schrieb Sasan Amini <aminissn@xxxxxxxxx>:

Thanks for the tip. It was actually easy to generate the polygons. I will share my code as soon as I am finished to fully generate all elements of the network.

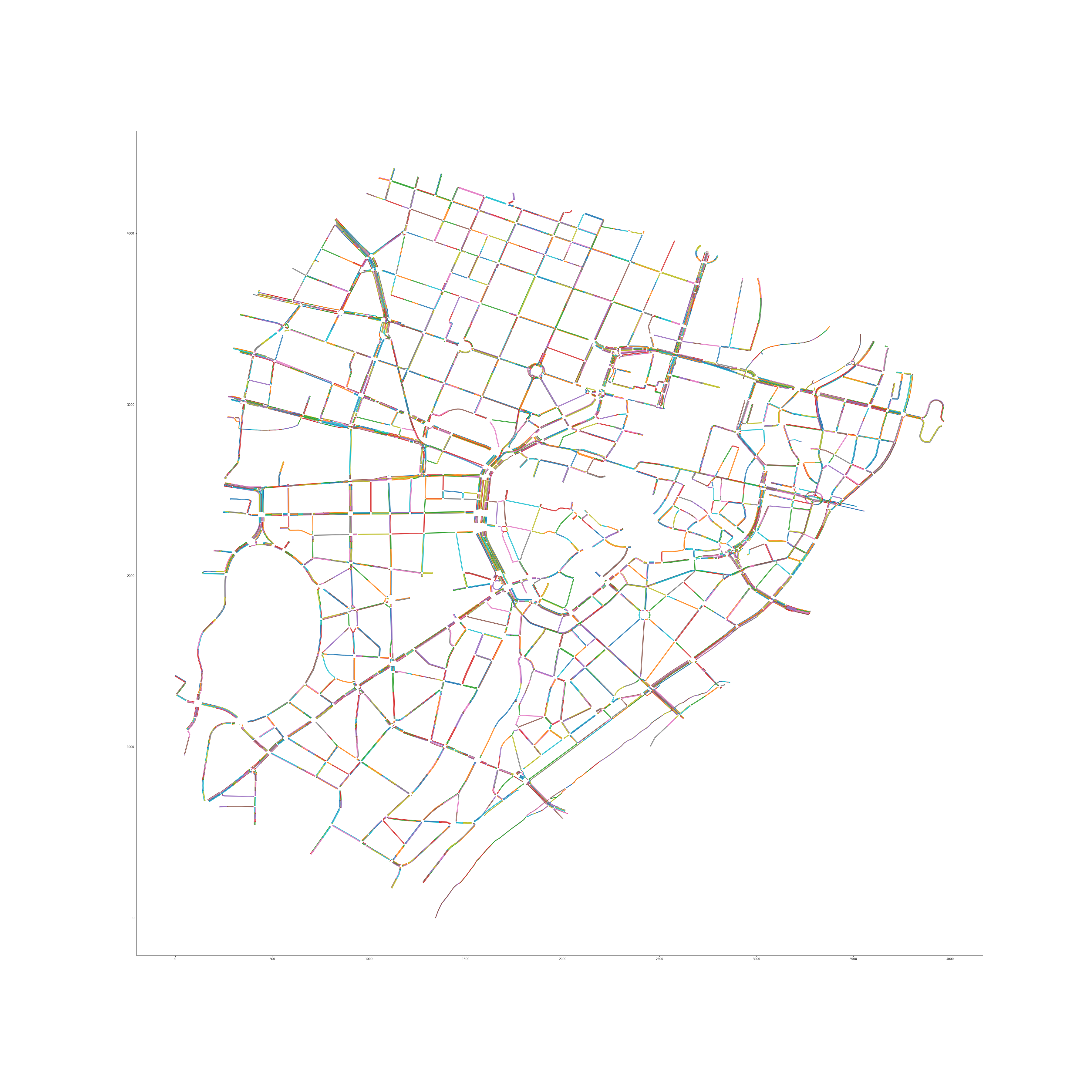

One last question: somehow I cannot read the shape of the connections (internal Links) of the network using sumolib. Am I missing something? Below you can ee that junctions and internal links are missing.

On Wed, Oct 5, 2022 at 10:24 PM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

No. Though it shouldn't be too hard to build this with the help of sumolib/geomhelper function move2side

Feel free to do add a new option for this.

Alternatively, you could export the lane width and use this to style the lines in QGIS.

Am Mi., 5. Okt. 2022 um 20:50 Uhr schrieb Sasan Amini <aminissn@xxxxxxxxx>:

Thanks. just one follow-up question: is it possible to export lanes (and edges) as polygons instead of linear objects i.e. their centerline?

On Wed, Oct 5, 2022 at 12:48 PM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

https://sumo.dlr.de/docs/Tools/Net.html#net2kmlpy

https://sumo.dlr.de/docs/Tools/Net.html#net2geojsonpy

Am Mi., 5. Okt. 2022 um 12:00 Uhr schrieb Sasan Amini <aminissn@xxxxxxxxx>:

Dear all,

is there a way to export *.net.xml files as shapefile (or kml) files to visualize them in QGIS? I know there is not such a tool yet, but now ´with the OSG support for 3D visualization, I thought maybe with a little fix it would be possible. Any tips for a workaround are very much appreciated.

Best,

Sasan
