Re: [sumo-user] Connection mode

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

Adding such a connection with pass=true (overriding normal right-of-way considerations) will never be safe. If you want vehicles to use the left lanes despite having to take the exit, you can instead create a zipper merge for the middle and right lane (https://sumo.dlr.de/docs/Netedit/neteditUsageExamples.html#creating_a_zipper_merge).

If you want to include the left lane, add a second zipper merge.

Am So., 28. Aug. 2022 um 13:55 Uhr schrieb mehmet nedim yavuz <mehmetnedimyvz@xxxxxxxxx>:

Hello,

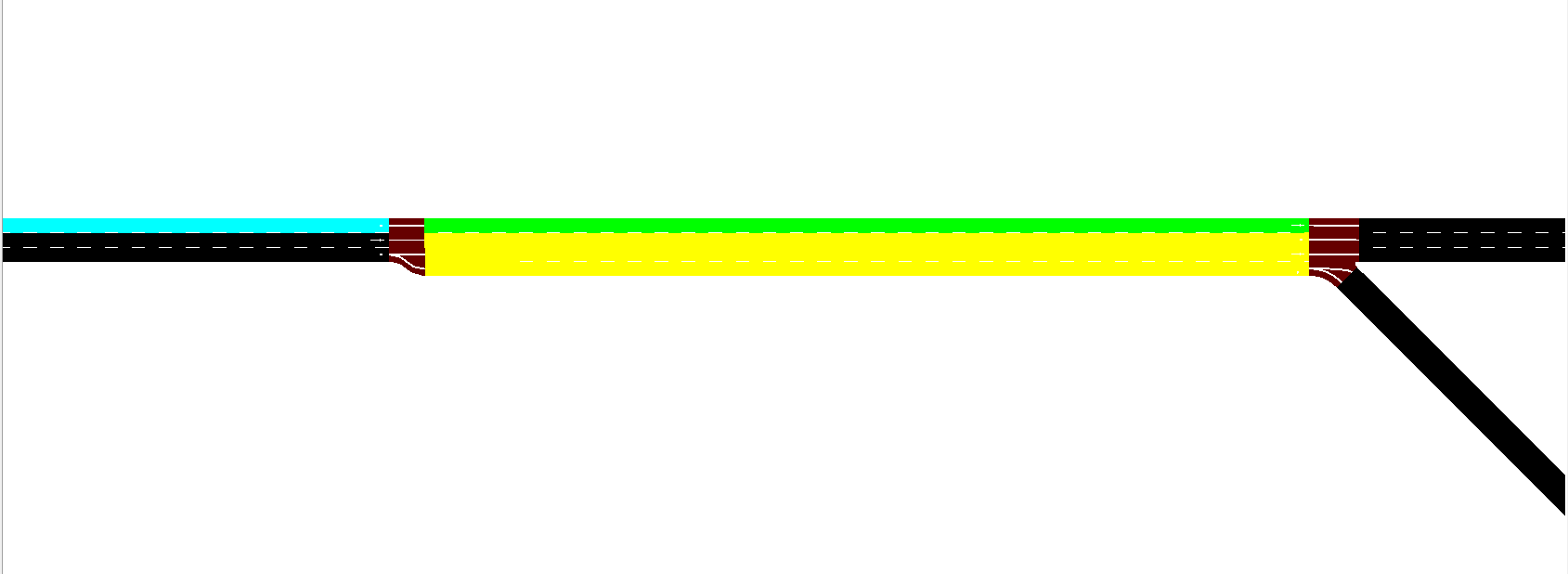

I modeled a three-lane freeway network with an off-ramp.Before 200 meter of off-ramp,I designed a  parallel deceleration lane  for outflow vehicles. If I look into netedit connection mode, connection between the lanes is as shown below. In this case,there is no vehicle that goes through the left-most lane to the right-most lane(deceleration lane) for outflow.

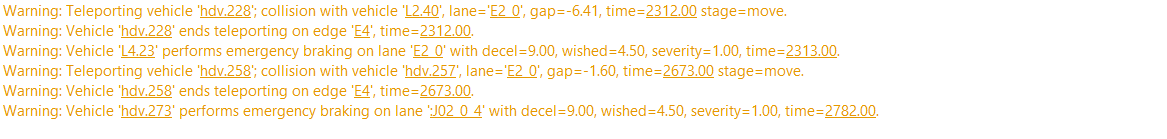

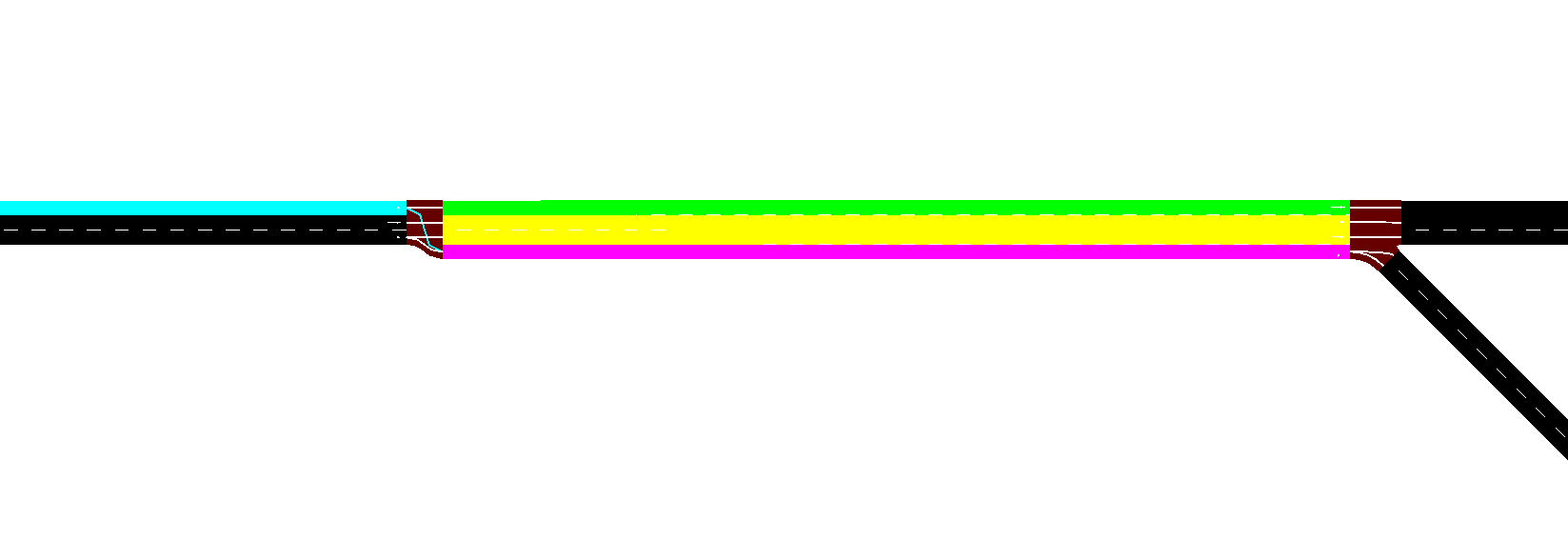

If I change it with using Ctrl+Shift+Left Click to pink (Target(pass)) is like as below figure,some vehicles goes through left-most lane to deceleration lane for outflow but in this case,I obtained collision warning as like figure below.

How do I solve this problem? Thank you for helping,regards.
