[sumo-user] Connection mode

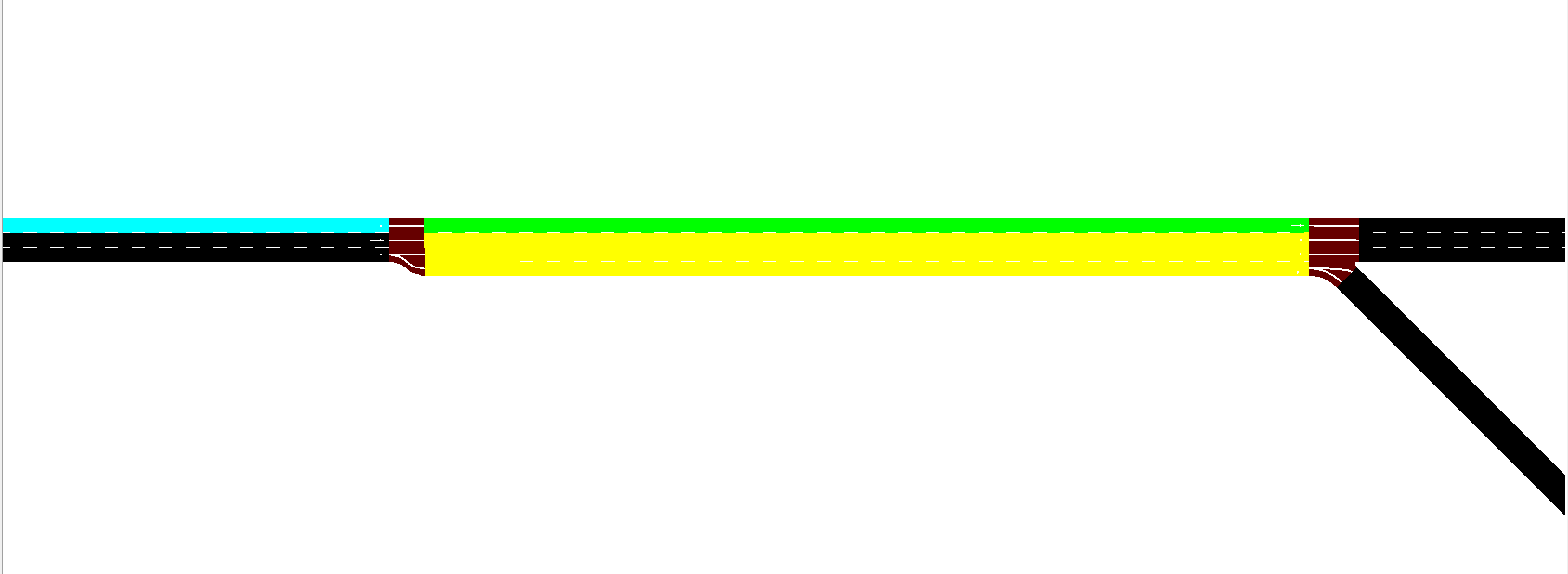

I modeled a three-lane freeway network with an off-ramp.Before 200 meter of off-ramp,I designed a  parallel deceleration lane  for outflow vehicles. If I look into netedit connection mode, connection between the lanes is as shown below. In this case,there is no vehicle that goes through the left-most lane to the right-most lane(deceleration lane) for outflow.

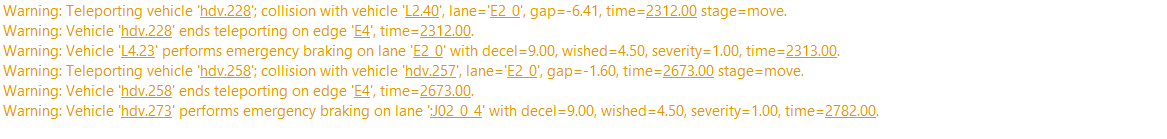

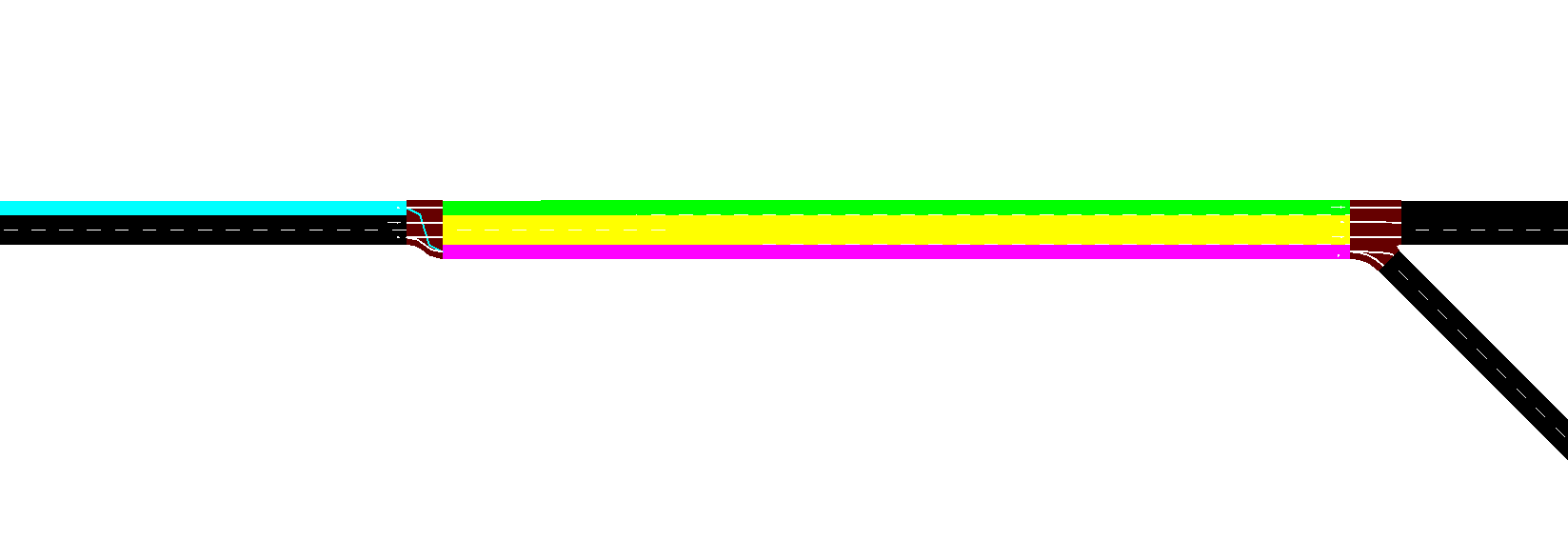

If I change it with using Ctrl+Shift+Left Click to pink (Target(pass)) is like as below figure,some vehicles goes through left-most lane to deceleration lane for outflow but in this case,I obtained collision warning as like figure below.
How do I solve this problem? Thank you for helping,regards.
