Re: [sumo-user] Pedestrian crossing

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

The gray intersection shape in sumo-gui denotes a shared-space-junction. This is created when the vehicle lanes still allow pedestrian movements and crossings are present anywhere in the network. To fix, disallow pedestrians on the road. For details, see https://sumo.dlr.de/docs/Simulation/Pedestrians.html#generating_a_network_with_crossings_and_walkingareas

Am Mi., 9. Feb. 2022 um 22:22 Uhr schrieb Qichao Wang <qichao@xxxxxx>:

Dear SUMO users,

I'm trying to create pedestrian crossings at signalized intersections. I followed https://sumo.dlr.de/docs/Netedit/editModesNetwork.html#crossings to create the crossings and this https://sumo.dlr.de/docs/Specification/Persons.html#examples to create the pedestrian flows. I linked pedestrian-only edges to link to the intersection node. Somehow, the pedestrians did not use the pedestrian crossings to cross the road and didn't care about the pedestrian signals.

How do I make it right?

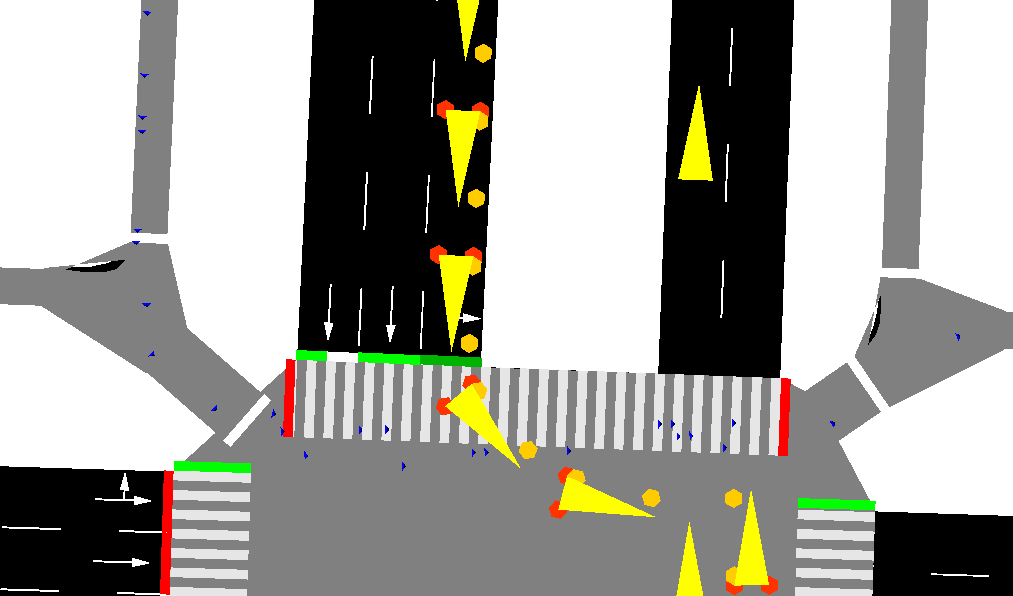

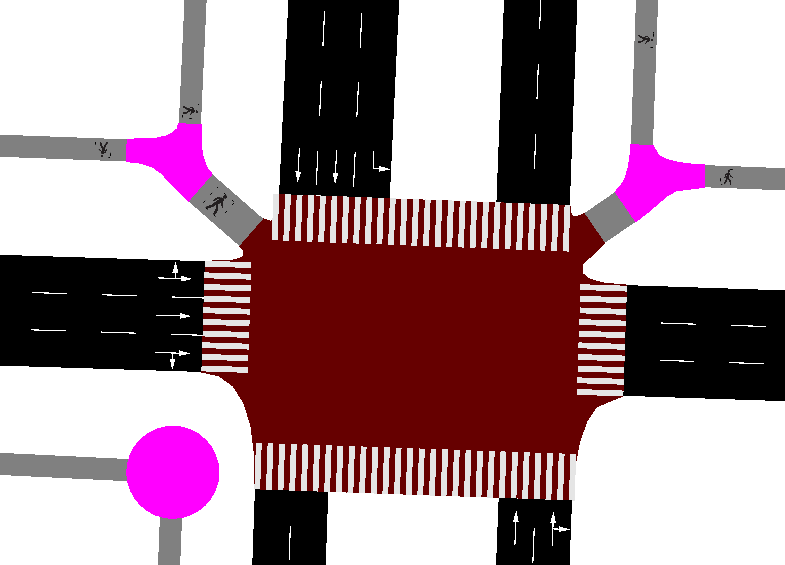

Screenshots for reference.

Thanks,

Qichao

--

Qichao Wang, Ph.D.

Computational Scientist

AI, Learning and Intelligent Systems Group

Computational Sciences Center

National Renewable Energy Laboratory
