Re: [sumo-user] How to add overtaking in SUMO
Harald & Jakob

I see now. I was able to adjust the 'opposite' lane attribute now. Thank you for the clarification.

On Sun, Feb 6, 2022 at 9:40 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

Am Sa., 5. Feb. 2022 um 17:40 Uhr schrieb Ifezue Obiako <vincentobiako@xxxxxxxxx>:
My predicament is that I would like to use netconvert, but I have a limited amount of time. I would rather not have to build out a whole new road network. Also, I was just wanting specific lanes in my network to allow overtaking, specifically the road segments at certain bus stops. Aside from these segments, those are the only places I would allow overtaking to occur.

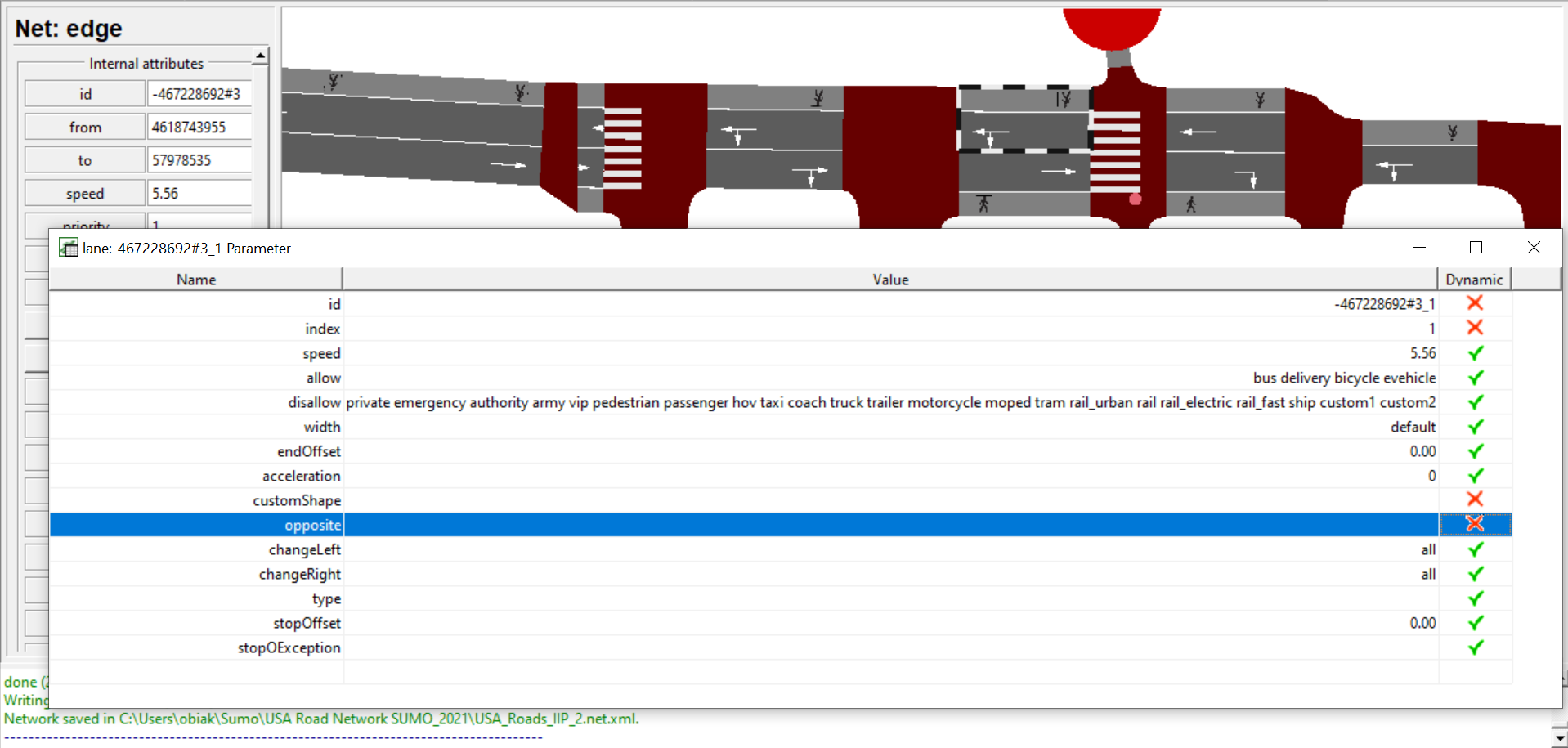

I was trying to type in the field named 'opposite', but it wouldn't let me adjust the parameter to put in the lane id. I also tried using the 'edit parameter' box on the left hand side of netedit, but nothing happened. However, I noticed that the opposite parameter seems to be locked because in the 'show parameter' pane in the dynamic column there is a red X on it (please see below). Do you know where I could go from here?

Thank you
Ifezue



On Sat, Feb 5, 2022 at 8:24 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:
You can put the id of the opposite-direction lane into the 'opposite' field. This only works for "innermost" pair of lanes (those with the highest lane index of both directional edges).
It's recommended to let netconvert option --opposites.guess do this job, though.

Am Fr., 4. Feb. 2022 um 12:47 Uhr schrieb Ifezue Obiako <vincentobiako@xxxxxxxxx>:
Thanks Jakob, but where can I adjust the lane attribute 'opposite' in netedit?

I see where you can view the lane attribute 'opposite' as a parameter (i.e., show parameters when I left click the lane), but I can't edit or adjust it.

On Thu, Feb 3, 2022, 4:04 PM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:
Never modify a .net.xml file directly.
To support opposite direction driving in a network, run:
netconvert -s old.net.xml --opposites.guess -o new.net.xml
You can also set lane attribute 'opposite' in netedit.

Am Do., 3. Feb. 2022 um 14:26 Uhr schrieb Ifezue Obiako <vincentobiako@xxxxxxxxx>:
Would the line of code for opposite lane driving look something like what is depicted below if it were implemented in a .net file?


On Thu, Feb 3, 2022 at 6:03 AM Ifezue Obiako <vincentobiako@xxxxxxxxx> wrote:
Hello Everyone

I currently have a .net file that I am thinking about adding overtaking behavior. The idea is when one bus comes from behind another bus on a different bus route but at the same stop I would like the bus behind to overtake the other if the other bus is taking too long. Is there a way for the bus behind to overtake the leading bus (i.e., teleporting ahead of the leading bus)?

I have looked at the documentation on opposite-direction driving, but it seems like you can only explicitly call "neigh" in an .edge.xml file rather than a .net file. The reason why I asked if it is possible to do this in a .net file is because I already have a functioning .net file established and I would like to edit it from there.

For reference, my .net and additional files are attached to this email. The place I was trying to add overtaking is at lane -467228692#3_1, where the lane 467228692#3_1 is used to overtake at the bus stop.

Thank you in advance for your help
Ifezue
