Re: [sumo-user] Issue with changing length of a link in netedit

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

Correct.

Am Mi., 10. Nov. 2021 um 17:04 Uhr schrieb Royal Bhandari <royalbhandari6@xxxxxxxxx>:

Hello,

Just to be clear, if I don't change the geometric length (the length that I see on Netedit), the simulation will still run for the length that is updated (in my case 100m rather than 25m), am I correct? It's just the visual that's 25m, correct?

On Wed, Nov 10, 2021 at 12:16 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

This is a feature: You can configure the geometrical length (what you see) and the driving length (distance experienced by the vehicles) independently.

If you want to change the geometrical length, you must change the locations of the junctions (i.e. with move-mode).

See also https://sumo.dlr.de/docs/Simulation/Distances.html

Am Mi., 10. Nov. 2021 um 02:04 Uhr schrieb Royal Bhandari <royalbhandari6@xxxxxxxxx>:

Hello,

I encountered a problem while trying to change the length of a link via netedit. I edited the length via the dropdown present in the top left corner. After saving the change I can't see the visual change. See attached screenshots.

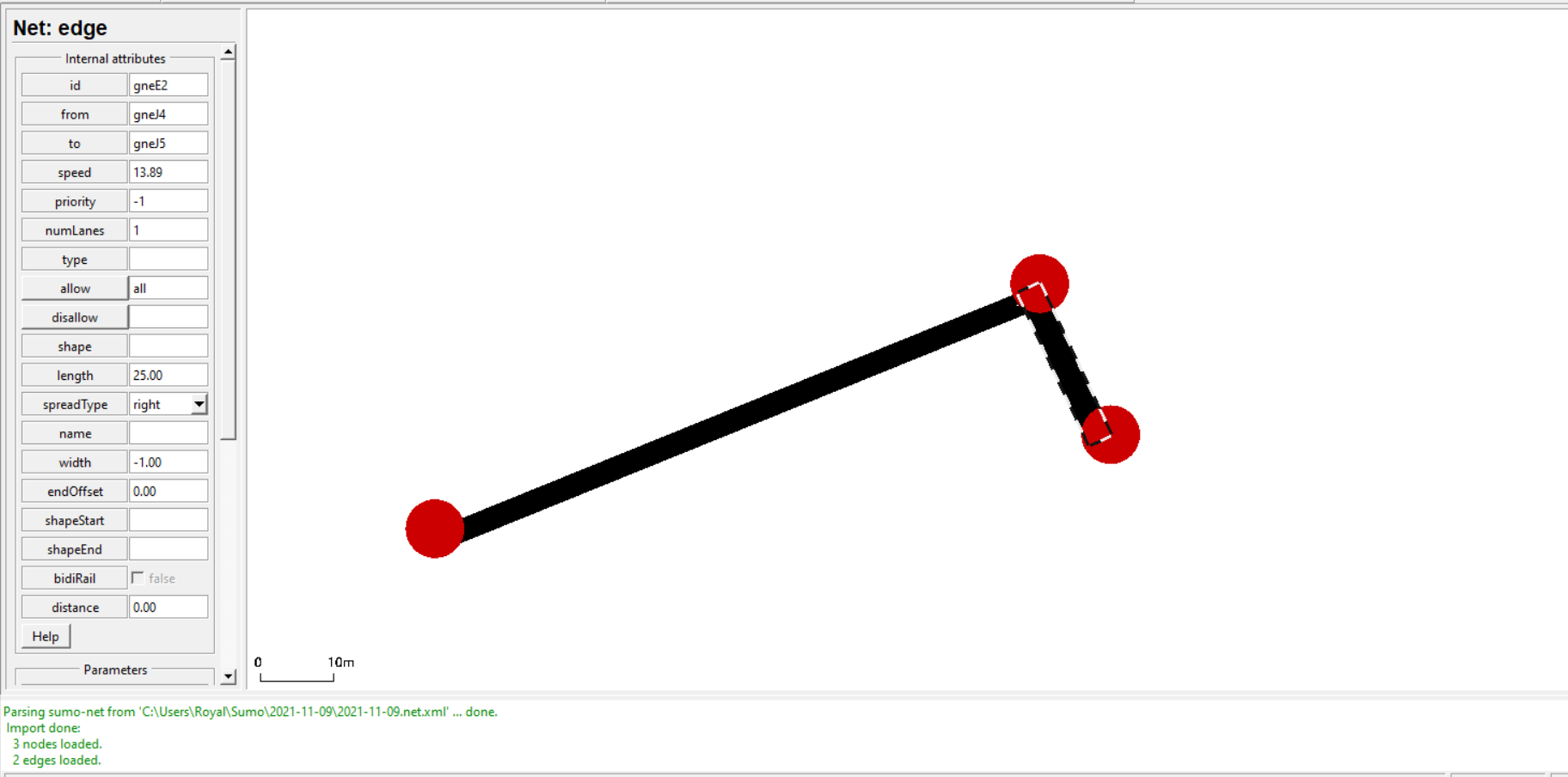

!) First image

the length of the selected link is 25m

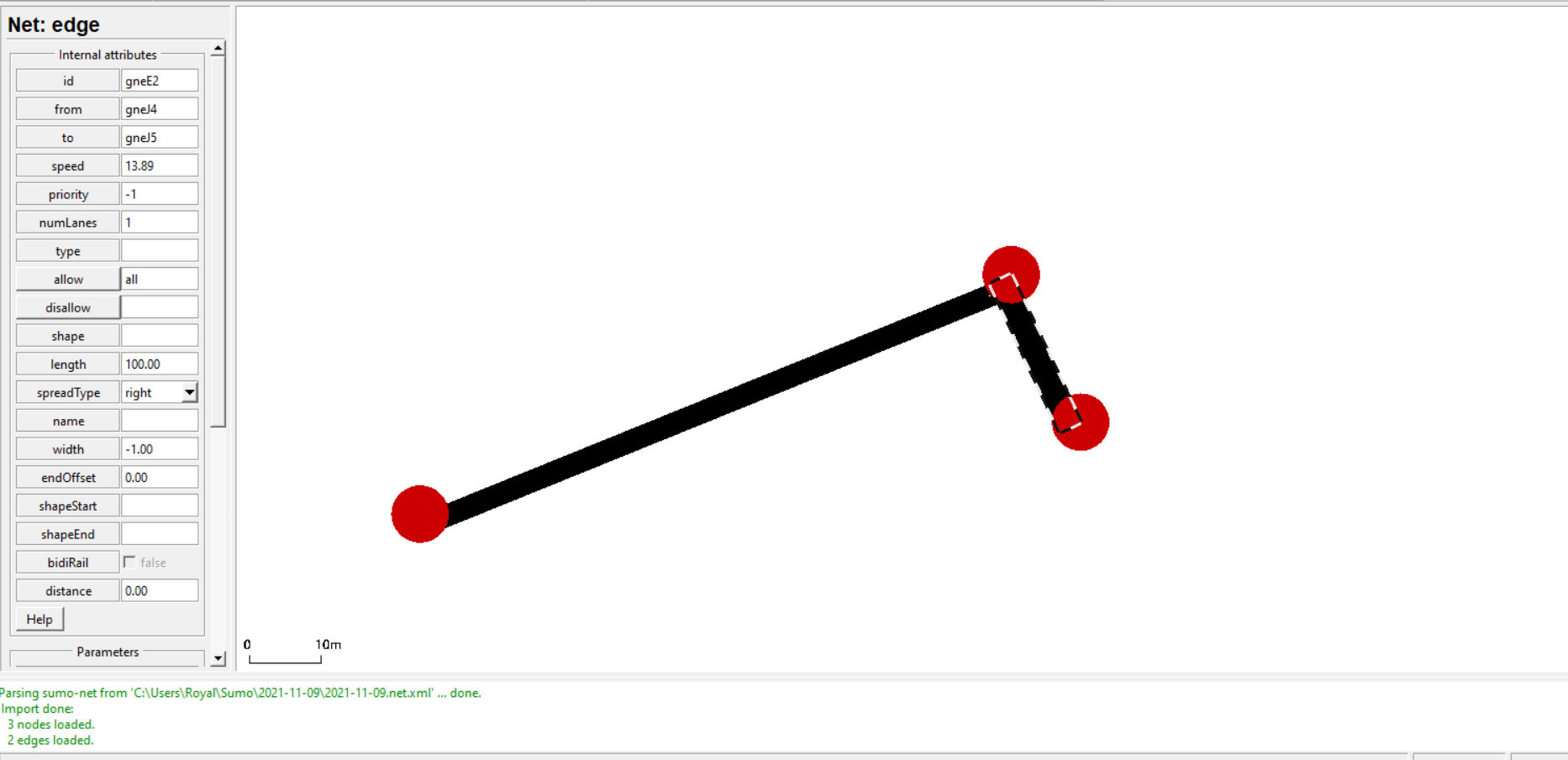

2) Here I updated the length to 100m, but the visual is same.

Please help me out.

Regards,

Royal Bhandari
