Re: [sumo-user] Regarding network cropping using polygon

[Nandini Anandan <nandinianandan29@xxxxxxxxx>]

Thank you so much for the message.

kind regards,

Nandini Anand

On Mon, Nov 8, 2021 at 11:36 PM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

1. draw polygon in netedit (POI-Poly mode)

2. inspect polygon and copy it's shape attribute

3. on the command line, run

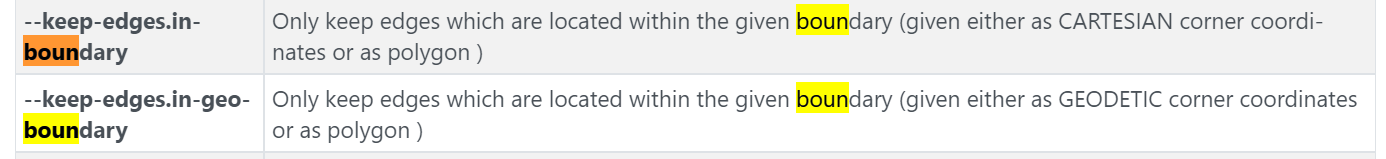

netconvert -s old.net.xml -o cropped.net.xml --keep-edges.in-boundary "<shape value>"

It's important that you put quotes around the shape value.

The latest development version of netedit also supports "select elements within polygon" as a context menu function of polygon. You can then invert the selection and delete selected elements to crop your network.

regards,

Jakob

Am Mo., 8. Nov. 2021 um 15:52 Uhr schrieb Nandini Anandan <nandinianandan29@xxxxxxxxx>:

Greetings for the day

Respected concerned,

Could you please help me to know how to use polygon coordinates for cropping the network through netedit?

Thanks in advance,

kind regards,

Nandini Anand
