Re: [sumo-user] Junctions visualized as sidewalk

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

Hello,

your are building a network with pedestrian infrastructure (probably because you have a pedestrian crossing somewhere). This causes walkingareas to be built at every junction where a lane enters which allows pedestrians. This also applies to lanes with the default permission value of allow="all". The way to fix this is to prevent pedestrians on vehicle-only edges. If you add sidewalks via Netedit menu options or via edge attribute sidwalkWidth then pedestrians will automatically be forbidden on road lanes.

regards,

Jakob

Am Mi., 15. Mai 2019 um 13:46 Uhr schrieb Menno van der Woude <menno@xxxxxxxxxxxxxxxxxx>:

Hello all,

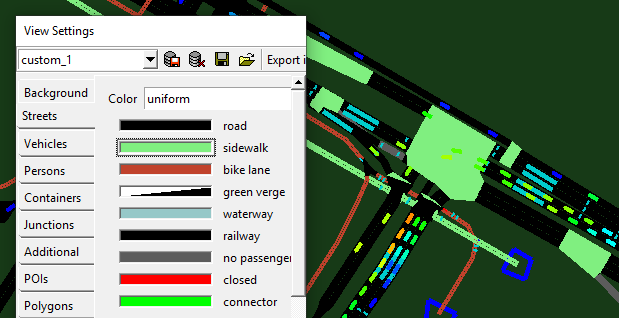

in a network I built, junctions show up in SUMO-GUI as 'sidewalk':

Does anyone know why this happens, and how I can change this?

Greets, Menno
