Re: [sumo-user] How To automatically set the shape of a junction?

Hello,
- if you want to have an automatically generated shape, delete the shape
attribute of the junction in 'inspect mode' in netedit.
- if you want to define the shape yourself, right-click the junction and
select 'set custom shape' (http://sumo.dlr.de/wiki/NETEDIT#Junction)
regards,
Jakob


2017-11-04 10:54 GMT+01:00 Lawrence Soon <lawrencesoon86@xxxxxxxxxxx>:

>
>
>
> Hi All,
>
>
> After using the commend *--junction.join-dist 20* , i realized that the
> shape of the junction is not properly set, as shown below:
>

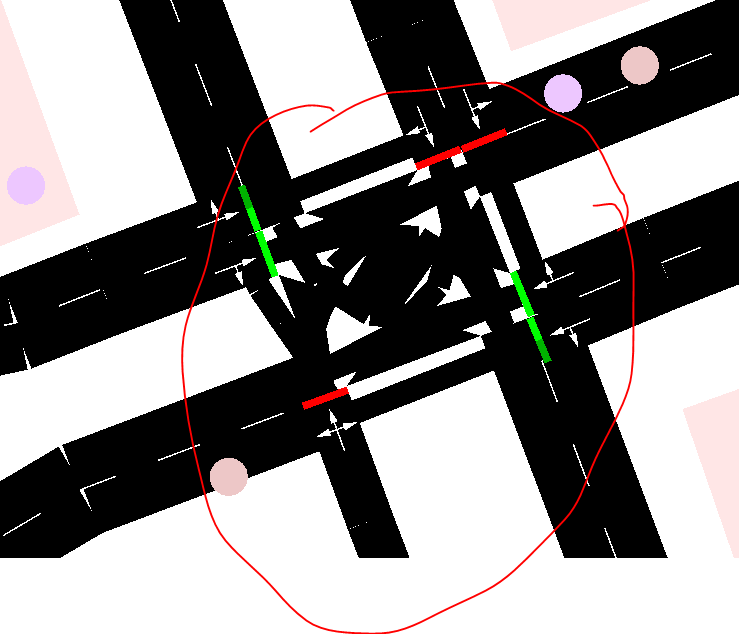

> In SUMO:
>
>

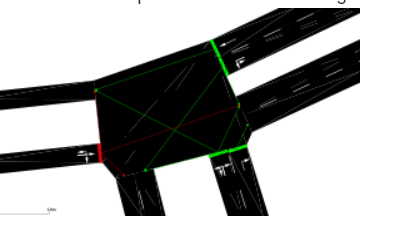

> In Netedit
>
>

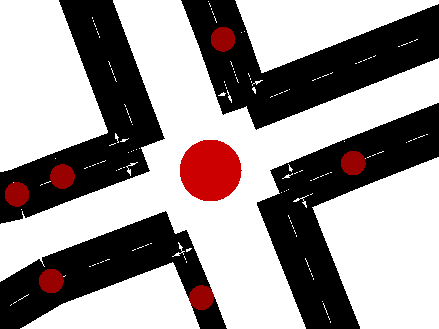

> Is there a way to set the shape of junction so that it looks nicely as in
> below?
>
>
>
>
>
>
>
> Thanks and have a great day!
>
> Best Regards,
> Lawrence
>

PNG image

PNG image

PNG image

------------------------------------------------------------------------------
