Re: [milo-dev] Wrong value when reading a String

[Kevin Herron <kevinherron@xxxxxxxxx>]

Daniel,

I think you're going to have to report a bug against that server, it doesn't look like anything is wrong on the Milo side. The server is reporting the String is length 256 and including all of the extra bytes after the 4 you are expecting.

Hopefully you have some sort of internal process to expedite reporting an issue if you are not on the same team :)

On Fri, Sep 24, 2021 at 6:53 AM Moreno Nino, Daniel Felipe <daniel.moreno_nino@xxxxxxxxxxx> wrote:

Hi, Kevin,

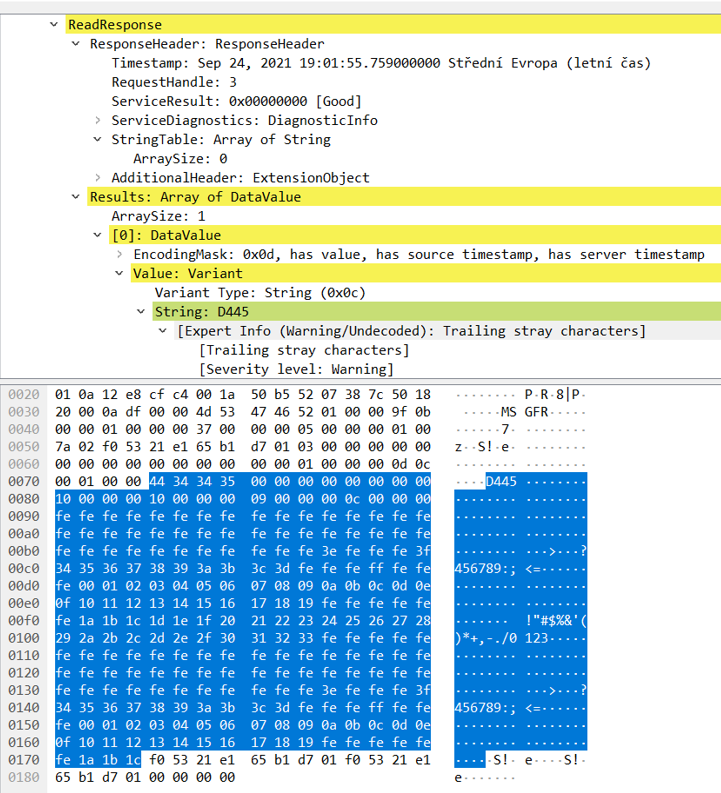

Thanks for the quick reply. Here is the response from the server captured by Wireshark. Seems like, as you mentioned it, it is returning a bunch of extra characters, this was tested both in a real and a simulated SIMOTION, obtaining the same results.









From: milo-dev <milo-dev-bounces@xxxxxxxxxxx> On Behalf Of Kevin Herron
Sent: Thursday, September 23, 2021 3:57 PM
To: milo developer discussions <milo-dev@xxxxxxxxxxx>
Subject: Re: [milo-dev] Wrong value when reading a String



I do wonder if it's as simple as UaExpert deciding to stop displaying after the first null 0x00 byte it encounters, though. It certainly looks like this server is just returning a bunch of extra crap in the String value.



On Thu, Sep 23, 2021 at 6:54 AM Kevin Herron <kevinherron@xxxxxxxxx> wrote:

That's pretty strange.



Can you get a Wireshark capture that contains the Read request/response? You'll have to connect without encryption for the capture to be usable.



I'm going to be gone and without phone or internet service for a few days so I likely won't be able to look at this right away.



On Thu, Sep 23, 2021 at 6:40 AM Moreno Nino, Daniel Felipe <daniel.moreno_nino@xxxxxxxxxxx> wrote:

Hi everybody,

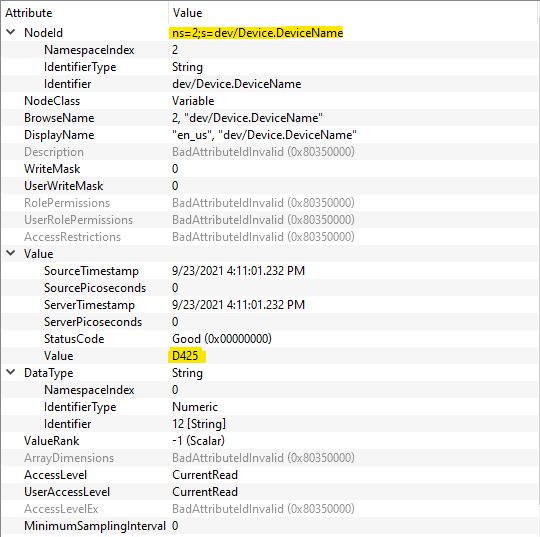

I’m having some issues when reading a variable from a SIMOTION device, it’s a String that can be correctly read using UaExpert:



However, when I read it using milo I get a byte array with 510 positions that contains the original value, but also some random bytes that cause the String to come with some wrong ASCII values:



What could be the cause of it? It happens only with the factory set values of the SIMOTION, with custom ones I have no issue at all.



Thank you in advance for your help and support.



Daniel Moreno
