Hi Team,



I’m currently playing with SVG shape customizations, I‘ve watched with attention this video https://www.youtube.com/watch?v=90Qt9a_0c-k from Eclipse-Papyrus channel.



I saw that we can customize a block figure using a SVG image, we can relocate the figure label inside a dedicated area of the SVG and finally manage connection anchors according to the SVG path.



I have two questions to go further with SVG shapes:



1. Can we relocate the structure (or any) compartment inside the SVG image (like done for label)
2. Can we use a custom PortLocator to adjust port positions over the SVG path.



It’s mandatory to customize diagrams using containment and bordered items.



To conclude a bonus question, is there a way to maintain the stroke width when enlarging or reducing figures.

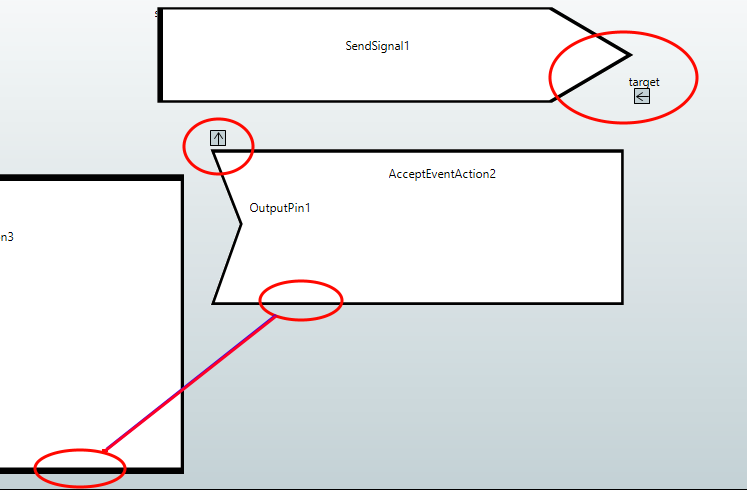

Here an example using Activity diagram:

(port locations and stroke width)







Thanks



Keep up the good work !



Sébastien
