Dear all,
Thanks to
Camille I could resolve partially my problem with uml
profiles and proxies but I still have issues regarding
Acceleo.
I added the
uml2 extension that references the profiles according to the
pathmap:
</extension>
<extension
point="org.eclipse.uml2.uml.dynamic_package">
<profile
uri="http://www.spacebel.com/profiles/functional_C"
location="pathmap://SPACEBEL_PROFILES/Functional_C/functional_C.profile.uml#_xzXxYEr9EeS32Jy9pwljCQ"/>
</extension>
The last
remaining problem happens when I generate code by using
Acceleo (the code is correctly generated) and the uml model
(decomposed in several sub-units). The stereotypes of the
sub-units don’t appear anymore in the UML editor. In order
to recover them, I need to restart Eclipse.

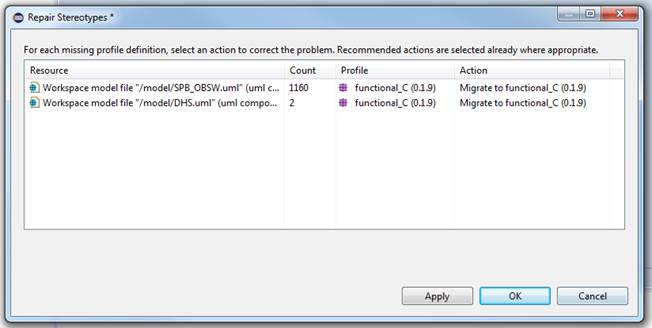

In addition, my
Acceleo generator causes the following issue in Papyrus
(DHS.uml is a sub-unit of SPB_OBSW.uml):
Does Acceleo
break anything around UML package registry ?
Best regards,
Johan
From:
Johan Hardy
Sent: vendredi 3 octobre 2014 16:19
To: 'm2t-dev@xxxxxxxxxxx'
Cc: Dominique Torette;
gabriel.pascual@xxxxxxxxxxx
Subject: [Acceleo] Generation of code and
creation of sub-unit of model remove stereotypes in the
sub-unit of model
Dear all,
I decided to send a mail to m2t dev-list
because I experienced a strange behavior between Papyrus 1.0.1
or the simple UML Editor & Acceleo 5.4.0. The issue was
originally reported to Papyrus MDT project but it seems to be
linked to Acceleo or UML:
https://bugs.eclipse.org/bugs/show_bug.cgi?id=445473
The description of the problem is in the
title. I have a big model (where a profile is applied) with a
lot of packages which contains classes where lots of
stereotypes are applied. FYI, the applied profile is enclosed
in a plugin with EMF & papyrus extensions.
<extension
point="org.eclipse.emf.ecore.uri_mapping">
<mapping
source="pathmap://resources/Functional_C/"
target="platform:/plugin/com.spacebel.papyrus.profile.functional_C/resources/Functional_C/">
</mapping>
</extension>
<extension
point="org.eclipse.papyrus.uml.extensionpoints.UMLProfile">
<profile
description="UML profile for functional C"
iconpath="icons/Profile.gif"
name="Functional C"
path="pathmap://resources/Functional_C/functional_C.profile.uml"
provider="Spacebel SA">
</profile>
</extension>
When I create a sub-unit for a package (for
example team collaboration), all the stereotypes applied on
the people below are still applied and I can continue to model
my software
J .. No problem.
Then, when I decide to generate my code by using my own UML to
C generator, there is no problem too.
However … when I close the model after the
generation and I reopen the model again, the applied
stereotypes have disappeared in the sub-unit …
L. To sum-up:
-Own Acceleo generator UML to C enclosed in
a plugin
-Own profile enclosed in a plugin
1.
Open uml model (whatever it is
papyrus or the simple UML Editor it is the same issue)
2.
Creation of model sub-units
3.
UML Modeling
4.
Generation of the code by using
Acceleo -> code is fine
5.
Close the uml model
6.
Reopen the uml model again
7.
The stereotypes applied on the
sub-unit elements disappeared
Does anyone already experience that
behavior ? Do you know what I miss ?
In advance thanks for any proposition !
Best regards;
|
