| Re: [m2t-dev] [Acceleo] Generation of code and creation of sub-unit of model remove stereotypes in the sub-unit of model |
|
Dear all, Thanks to Camille I could resolve partially my problem with uml profiles and proxies but I still have issues regarding Acceleo. I added the uml2 extension that references the profiles according to the pathmap:
</extension>
<extension
point="org.eclipse.uml2.uml.dynamic_package">
<profile
uri="http://www.spacebel.com/profiles/functional_C"
location="pathmap://SPACEBEL_PROFILES/Functional_C/functional_C.profile.uml#_xzXxYEr9EeS32Jy9pwljCQ"/> </extension> The last remaining problem happens when I generate code by using Acceleo (the code is correctly generated) and the uml model (decomposed in several sub-units). The stereotypes of the sub-units don’t appear anymore

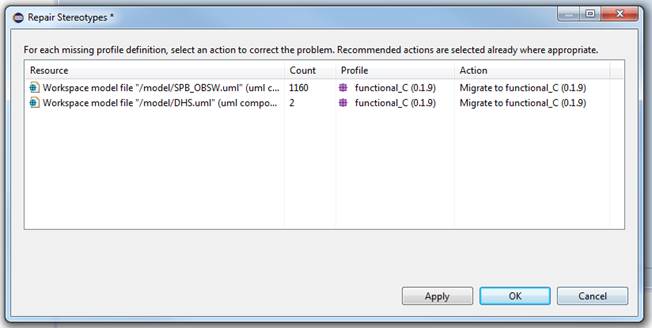

in the UML editor. In order to recover them, I need to restart Eclipse. In addition, my Acceleo generator causes the following issue in Papyrus (DHS.uml is a sub-unit of SPB_OBSW.uml):
Does Acceleo break anything around UML package registry ? Best regards, Johan From: Johan Hardy
Dear all, I decided to send a mail to m2t dev-list because I experienced a strange behavior between Papyrus 1.0.1 or the simple UML Editor & Acceleo 5.4.0. The issue was originally reported to Papyrus MDT project but it seems to be linked to Acceleo
or UML: https://bugs.eclipse.org/bugs/show_bug.cgi?id=445473 The description of the problem is in the title. I have a big model (where a profile is applied) with a lot of packages which contains classes where lots of stereotypes are applied. FYI, the applied profile is enclosed in a plugin with EMF
& papyrus extensions. <extension point="org.eclipse.emf.ecore.uri_mapping"> <mapping source="pathmap://resources/Functional_C/" target="platform:/plugin/com.spacebel.papyrus.profile.functional_C/resources/Functional_C/"> </mapping> </extension> <extension point="org.eclipse.papyrus.uml.extensionpoints.UMLProfile"> <profile description="UML profile for functional C" iconpath="icons/Profile.gif" name="Functional C" path="pathmap://resources/Functional_C/functional_C.profile.uml" provider="Spacebel SA"> </profile> </extension> When I create a sub-unit for a package (for example team collaboration), all the stereotypes applied on the people below are still applied and I can continue to model my software
J .. No problem. Then, when I decide to generate my code by using my own UML to C generator, there is no problem too. However … when I close the model after the generation and I reopen the model again, the applied stereotypes have disappeared in the sub-unit …
L. To sum-up: -Own Acceleo generator UML to C enclosed in a plugin -Own profile enclosed in a plugin 1.
Open uml model (whatever it is papyrus or the simple UML Editor it is the same issue) 2.
Creation of model sub-units 3.
UML Modeling 4.
Generation of the code by using Acceleo -> code is fine 5.
Close the uml model 6.
Reopen the uml model again 7.
The stereotypes applied on the sub-unit elements disappeared Does anyone already experience that behavior ? Do you know what I miss ? In advance thanks for any proposition ! Best regards;
