Re: [keyple-dev] Issue towards using UseCase4 & 10 with SAM-S1 E1
|
Dear Keyple-Dev team,

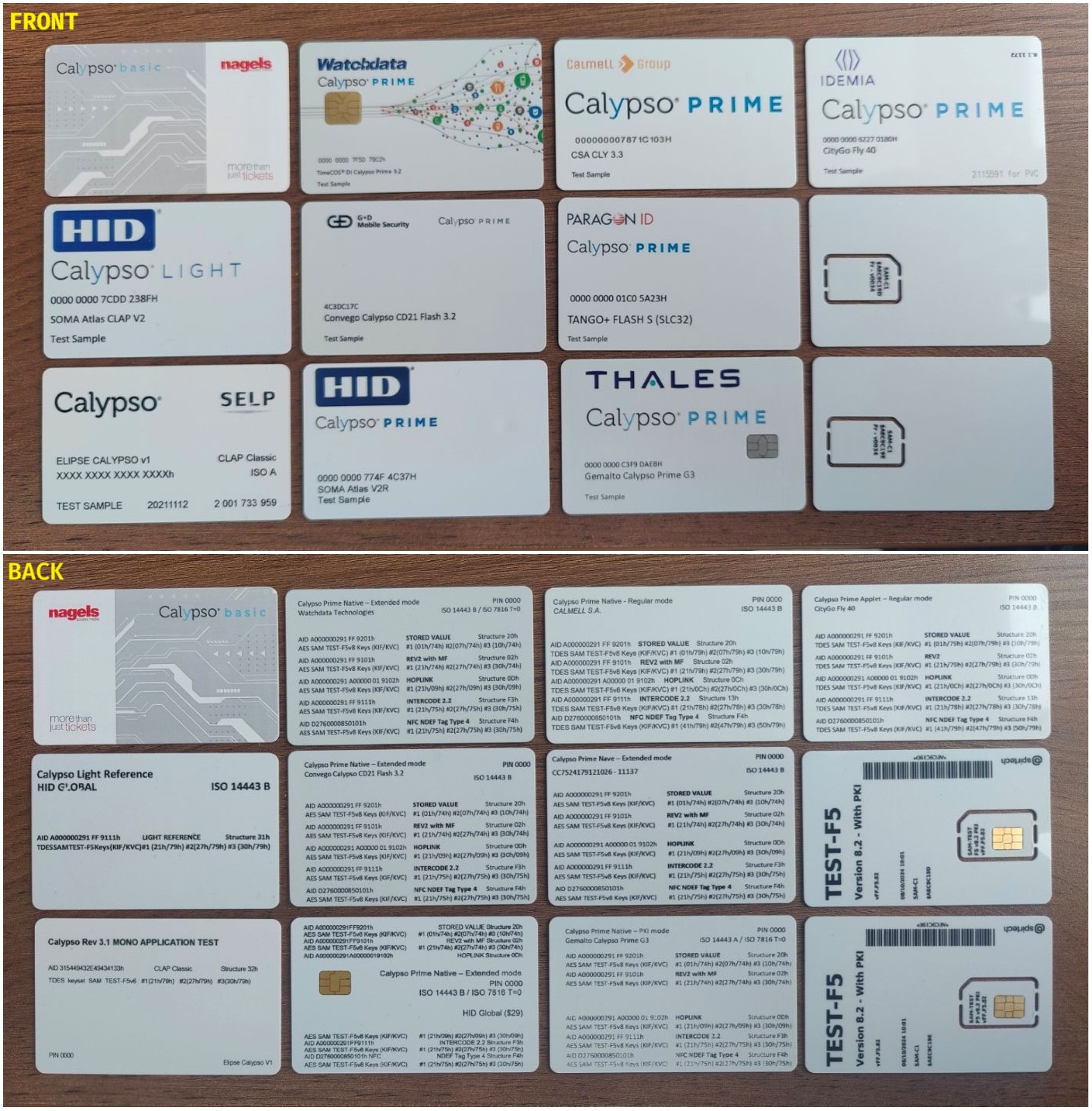

We have acquired the attached Calypso test cards.
May I know if there is a defined test procedure or UseCase
examples to validate our readers for Calypso compliance?
Best regards,
Thillai Elayaraja S
![]()
![]() ![]()
|
Thillai
Elayaraja S |
| CTO |
| +91 72593 34534 |
| thillaielayaraja.s@xxxxxxxxxxx |
| |
| ELYCTIS
India Pte Ltd |
| Level 7, Mfar Greenheart |
| Manyata Tech Park |
| Bengaluru
560045 |
| INDIA |
On 08-07-2025 02:43 pm, Thillai
Elayaraja S via keyple-dev wrote:
Dear Pierre Terree,
Thank you for the last info.
It seems that the Use Case 4 and 10 are working now with the
proposed change.
I have attached the respective logs for reference.
If there is nothing more to test with these cards, we will
continue ordering the test kits and continue with them.
Thanks for your support.
Best regards,
Thillai Elayaraja S
![]()
![]() ![]()
|
Thillai
Elayaraja S |
| CTO |
| +91 72593 34534 |
| thillaielayaraja.s@xxxxxxxxxxx |
| |
| ELYCTIS
India Pte Ltd |
| Level 7, Mfar Greenheart |
| Manyata Tech Park |
| Bengaluru
560045 |
| INDIA |
On 07-07-2025 08:57 pm, Pierre Terree
wrote:
Don't
worry, we'll help you. I propose one last try with the
card you've got
OK
keep the current AID, but change this parameter: .assignDefaultKif(DEBIT,
(byte) 0x10)
→ If
you're lucky, you'll be able to open and close a secure
session.
I'll
be honest, you won't be able to do many more tests with
this card: I think this card is personalized in a
"non-compliant" way 🤯.
I
understand you're planning to order an official test kit
from CNA: then it'll be easier for you to test.
Dear Pierre Terree,
A bit of history:
One of our major partners expect our readers to be
Calypso compliant.
Although our readers are ISO complaint, we wanted to
prove Calypso compliance with an example/usecase.
We procured some test cards from ISRA. On top of the
samples, ISRA has not given us any other details
(although several of our emails to them went
unanswered).
Then we sought help from one of our CNA contacts (Mr.
TEIXEIRA COSTA Ludovic) who has suggested us to check
with UseCase 4 and 10.
We are new to Calypso ecosystem and with no info from
ISRA we are a bit lost as well towards the
configuration that you seek.
We apologize if this is not going in the expected way.
May I ask you where should we try the KIF parameter
0x10h ? Is it in initSecuritySetting()
?
If yes, As per the last support received from
Keyple-Dev team, my current code of the same is as
follows:
private static void initSecuritySetting()
{
LegacySam sam = selectSam(samReader);
symmetricCryptoSecuritySetting =
calypsoCardApiFactory.createSymmetricCryptoSecuritySetting(
LegacySamExtensionService.getInstance()
.getLegacySamApiFactory()
.createSymmetricCryptoCardTransactionManagerFactory(samReader, sam))
.assignDefaultKif(PERSONALIZATION, (byte) 0x21)
.assignDefaultKif(LOAD, (byte) 0x27)
.assignDefaultKif(DEBIT, (byte) 0x30)
.disableReadOnSessionOpening();
// Add this
line
}
Kindly suggest.
By the way, wrt. the other email where you suggested
to try with AID 315449432E494341, kindly note that there is
no such AID in the test card. It contains only 334D54522E494341
and 304554502E494341.
Attached is the
Tool_CheckCardFileStructure-2.0.3.log for reference.
Best regards,
Thillai Elayaraja S
|
