[keyple-dev] Issue towards using UseCase4 & 10 with SAM-S1 E1

From: Thillai Elayaraja S <thillaielayaraja.s@xxxxxxxxxxx>
Date: Fri, 4 Jul 2025 13:02:07 +0530
Delivered-to: keyple-dev@xxxxxxxxxxx
List-archive: <https://www.eclipse.org/mailman/private/keyple-dev/>
List-help: <mailto:keyple-dev-request@eclipse.org?subject=help>
List-subscribe: <https://www.eclipse.org/mailman/listinfo/keyple-dev>, <mailto:keyple-dev-request@eclipse.org?subject=subscribe>
List-unsubscribe: <https://www.eclipse.org/mailman/options/keyple-dev>, <mailto:keyple-dev-request@eclipse.org?subject=unsubscribe>
User-agent: Mozilla Thunderbird

Dear Keyple-Dev team,

Good day! I'm Thillai Elayaraja, CTO of ELYCTIS. Currently I'm evaluating Calypso support with our PC/SC readers with a Calypso card sample + SAM acquired from ISRA.

The Calypso card sample is labelled as ST23ZR08 Calypso CD21 Rev 3.1 and
The SAM sample is labelled as INTEROP vFF.E0.42 SAM-S1 E1.

With them I tried the examples UseCase4 and UseCase10 from Keyple but encounter issues detailed below. I tried to adapt those examples to use the reader regex, Card AID (taken from the Card Configuration Audit tool) and also changed the LegacySamUtil.buildPowerOnDataFilter() to use LegacySam.ProductType.SAM_S1E1, with vain. I got to know from one of the CNA contacts to seek help from the Keyple-Dev community and that's where here I'am with the details given below:

Regarding the examples:

UseCase4_CardAuthentication:

Attached the UseCase4_CardAuthentication.log for reference.

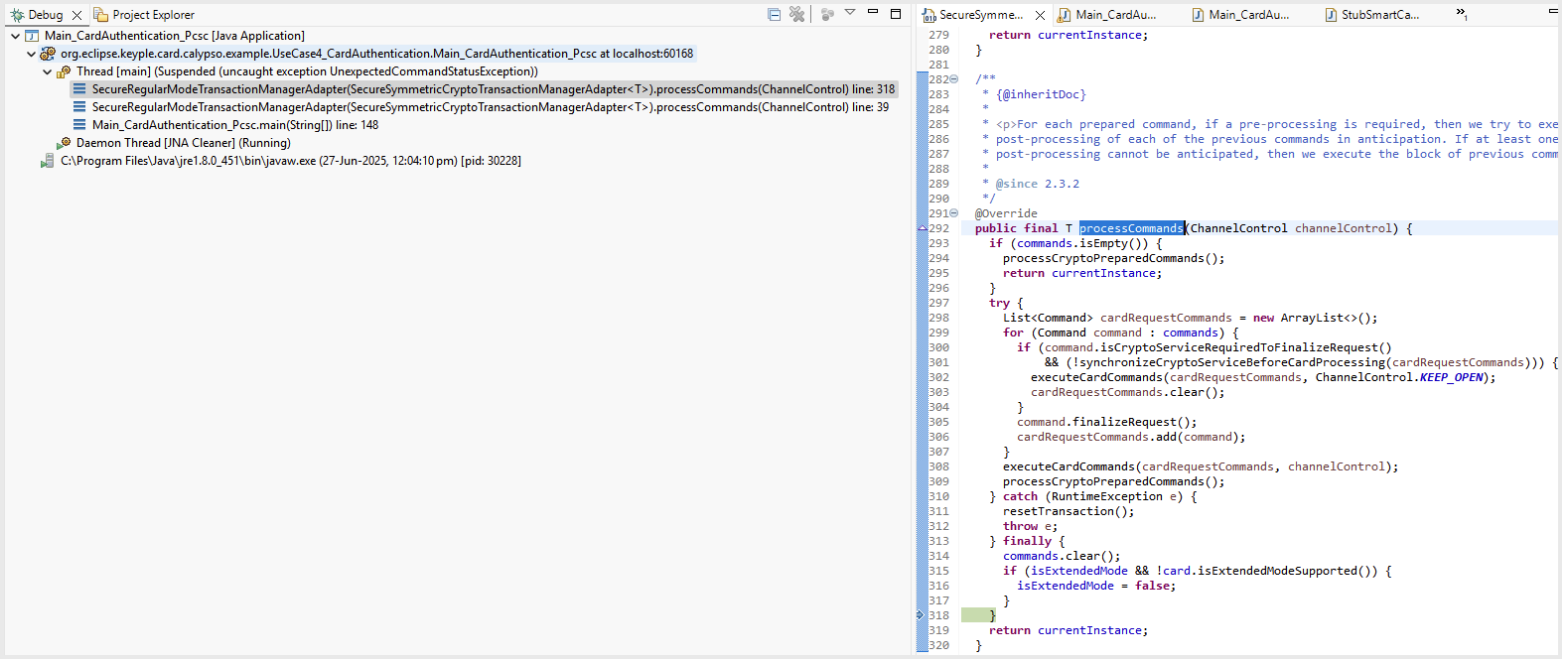

For info, the code stopped at processCommands as below:

UseCase10_SessionTrace_TN313:

Attached the UseCase10_SessionTrace_TN313.log for reference.

For info, the log ends with the following error:

[11:01:01:138] [pool-1-thread-1] [ERROR] CardReaderObserver - [Transaction failed with exception: A card command error occurred while processing responses to card commands: OPEN_SECURE_SESSION
Transaction audit JSON data: {"targetSmartCard":{"selectApplicationResponse":{"apdu":"6F228408334D54522E494341A516BF0C13C70800000000750D264E53070A2D20021010019000","statusWord":"9000"},"isExtendedModeSupported":false,"isRatificationOnDeselectSupported":true,"isSvFeatureAvailable":false,"isPinFeatureAvailable":false,"isPkiModeSupported":false,"isDfInvalidated":false,"calypsoCardClass":"ISO","calypsoSerialNumber":"00000000750D264E","startupInfo":"0A2D2002101001","productType":"PRIME_REVISION_3","dfName":"334D54522E494341","modificationsCounterMax":"01AE","isModificationCounterInBytes":true,"files":[],"filesBackup":[],"svLastTNum":"00","svLastTNumBackup":"00","isHce":false,"svKvc":"00","applicationSubType":"02","applicationType":"20","sessionModification":"0A","payloadCapacity":"FA","isCounterValuePostponed":false,"isLegacyCase1":false},"apdus":["008A0B3904AF711A9400","6A82"]}
[11:01:01:138] [pool-1-thread-1] [INFO] ObservableLocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] starts card removal sequence

Regarding Card Configuration Audit tools:

Attached the Tool_AnalyzeCardFileStructure-2.0.3.log and the generated 20250626_CardData_1963796046.json for reference.
Attached the Tool_CheckCardFileStructure-2.0.3.log for reference.

With these logs and info, could you help if I need to adapt the examples further to verify the intended use-cases ? And can we "tentatively" say if our reader is capable to support Calypso transactions ?

Thanking you.

With best regards,

Thillai Elayaraja S

P S : Soon we will try to procure the test kits from CNA to validate our readers with all usecases and with the demonstrator app.

	Thillai Elayaraja S
	CTO
	+91 72593 34534
	thillaielayaraja.s@xxxxxxxxxxx

	ELYCTIS India Pte Ltd
	Level 7, Mfar Greenheart
	Manyata Tech Park
	Bengaluru 560045
	INDIA

[12:04:11:237] [main] [INFO] Main_CardAuthentication_Pcsc - = UseCase Calypso #4: Calypso card authentication ==================
[12:04:11:351] [main] [INFO] SmartCardServiceAdapter - Register plugin [PcscPlugin]
[12:04:11:389] [main] [INFO] PcscPluginAdapter - Plugin [PcscPlugin]: use default protocol identification rules
[12:04:11:397] [main] [INFO] PcscPluginAdapter - Plugin [PcscPlugin]: search available readers
[12:04:12:322] [main] [INFO] PcscPluginAdapter - Plugin [PcscPlugin]: reader found: [ELYCTIS CL reader FFFFFFFF0000 0]
[12:04:12:322] [main] [INFO] PcscPluginAdapter - Plugin [PcscPlugin]: reader found: [ELYCTIS CNT reader FFFFFFFF0000 0]
[12:04:12:341] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: set contactless type to [true]
[12:04:12:341] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: set ISO protocol to [T1] (T=1)
[12:04:12:341] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: set sharing mode to [SHARED]
[12:04:12:341] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: set contactless type to [false]
[12:04:12:341] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: set ISO protocol to [ANY] (*)
[12:04:12:341] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: set sharing mode to [SHARED]
[12:04:12:356] [main] [DEBUG] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: open card physical channel for protocol [*]
[12:04:12:362] [main] [DEBUG] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: open card physical channel in shared mode
[12:04:12:372] [main] [DEBUG] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: open card physical channel for protocol [T=1]
[12:04:12:407] [main] [DEBUG] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: open card physical channel in shared mode
[12:04:12:408] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] selects application with AID [304554502E494341]
[12:04:12:419] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] --> apduRequest: APDU_REQUEST = {"apdu":"00A4040008304554502E49434100","successfulStatusWords":["9000"],"info":"Internal Select Application"}, elapsed 1.3131271652E9 ms
[12:04:12:432] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] <-- apduResponse: APDU_RESPONSE = {"apdu":"6F228408304554502E494341A516BF0C13C70800000000750D264E53070A2D20021010019000","statusWord":"9000"}, elapsed 22.1 ms
[12:04:12:441] [main] [DEBUG] CommandGetDataFci - DF name: 304554502E494341
[12:04:12:441] [main] [DEBUG] CommandGetDataFci - Application serial number: 00000000750D264Eh
[12:04:12:441] [main] [DEBUG] CommandGetDataFci - Discretionary data: 0A2D2002101001
[12:04:12:457] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0] --> apduRequest: APDU_REQUEST = {"apdu":"8084000004","successfulStatusWords":["9000"],"info":"Get Challenge"}, elapsed 1.3131272123E9 ms
[12:04:12:467] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0] <-- apduResponse: APDU_RESPONSE = {"apdu":"DB2FC32D9000","statusWord":"9000"}, elapsed 10.3 ms
[12:04:12:469] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] --> apduRequest: APDU_REQUEST = {"apdu":"008A0B3904DB2FC32D00","successfulStatusWords":["9000"],"info":"Open Secure Session - key index: 3, sfi: 07h, rec: 1"}, elapsed 37.0 ms
[12:04:12:474] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] <-- apduResponse: APDU_RESPONSE = {"apdu":"6A82","statusWord":"6A82"}, elapsed 5.4 ms

[11:00:53:287] [main] [INFO] App - =============== UseCase Calypso #10: session trace TN313 ==================
[11:00:53:288] [main] [INFO] App - Using parameters:
[11:00:53:292] [main] [INFO] App -   AID=334D54522E494341
[11:00:53:292] [main] [INFO] App -   CARD_READER_REGEX=.*ASK LoGO.*|.*Contactless.*|.*ELYCTIS CL .*
[11:00:53:292] [main] [INFO] App -   SAM_READER_REGEX=.*Identive.*|.*HID.*|.*SAM.*|.*ELYCTIS CNT .*
[11:00:59:671] [main] [INFO] SmartCardServiceAdapter - Register plugin [PcscPlugin]
[11:00:59:721] [main] [INFO] PcscPluginAdapter - Plugin [PcscPlugin]: use default protocol identification rules
[11:00:59:732] [main] [INFO] PcscPluginAdapter - Plugin [PcscPlugin]: search available readers
[11:01:00:745] [main] [INFO] PcscPluginAdapter - Plugin [PcscPlugin]: reader found: [ELYCTIS CL reader FFFFFFFF0000 0]
[11:01:00:746] [main] [INFO] PcscPluginAdapter - Plugin [PcscPlugin]: reader found: [ELYCTIS CNT reader FFFFFFFF0000 0]
[11:01:00:770] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: set contactless type to [true]
[11:01:00:770] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: set ISO protocol to [T1] (T=1)
[11:01:00:770] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: set sharing mode to [SHARED]
[11:01:00:770] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: set contactless type to [false]
[11:01:00:770] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: set ISO protocol to [ANY] (*)
[11:01:00:770] [main] [INFO] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: set sharing mode to [SHARED]
[11:01:00:786] [main] [DEBUG] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: open card physical channel for protocol [*]
[11:01:00:988] [main] [DEBUG] PcscReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0]: open card physical channel in shared mode
[11:01:01:012] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0] --> apduRequest: APDU_REQUEST = {"apdu":"8084000008","successfulStatusWords":["9000"],"info":"Get Challenge"}, elapsed 1.3093357569E9 ms
[11:01:01:024] [main] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CNT reader FFFFFFFF0000 0] <-- apduResponse: APDU_RESPONSE = {"apdu":"AF711A94178156249000","statusWord":"9000"}, elapsed 22.3 ms
[11:01:01:025] [main] [INFO] App - Select application with AID = '334D54522E494341'
[11:01:01:030] [main] [INFO] ObservationManagerAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] adds observer [CardReaderObserver]
[11:01:01:030] [main] [INFO] ObservableLocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] starts card detection with polling mode [REPEATING]
[11:01:01:033] [main] [INFO] App - Wait for a card...
[11:01:01:037] [main] [INFO] App - Press ENTER to exit...
[11:01:01:038] [pool-1-thread-1] [DEBUG] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: open card physical channel for protocol [T=1]
[11:01:01:078] [pool-1-thread-1] [DEBUG] PcscReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0]: open card physical channel in shared mode
[11:01:01:079] [pool-1-thread-1] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] selects application with AID [334D54522E494341]
[11:01:01:080] [pool-1-thread-1] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] --> apduRequest: APDU_REQUEST = {"apdu":"00A4040008334D54522E49434100","successfulStatusWords":["9000"],"info":"Internal Select Application"}, elapsed 1.3093358348E9 ms
[11:01:01:091] [pool-1-thread-1] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] <-- apduResponse: APDU_RESPONSE = {"apdu":"6F228408334D54522E494341A516BF0C13C70800000000750D264E53070A2D20021010019000","statusWord":"9000"}, elapsed 11.8 ms
[11:01:01:094] [pool-1-thread-1] [DEBUG] ObservableLocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] notifies event [CARD_MATCHED] to 1 observer(s)
[11:01:01:104] [pool-1-thread-1] [DEBUG] CommandGetDataFci - DF name: 334D54522E494341
[11:01:01:104] [pool-1-thread-1] [DEBUG] CommandGetDataFci - Application serial number: 00000000750D264Eh
[11:01:01:104] [pool-1-thread-1] [DEBUG] CommandGetDataFci - Discretionary data: 0A2D2002101001
[11:01:01:119] [pool-1-thread-1] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] --> apduRequest: APDU_REQUEST = {"apdu":"008A0B3904AF711A9400","successfulStatusWords":["9000"],"info":"Open Secure Session - key index: 3, sfi: 07h, rec: 1"}, elapsed 27.7 ms
[11:01:01:125] [pool-1-thread-1] [DEBUG] LocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] <-- apduResponse: APDU_RESPONSE = {"apdu":"6A82","statusWord":"6A82"}, elapsed 6.7 ms
[11:01:01:138] [pool-1-thread-1] [ERROR] CardReaderObserver - [Transaction failed with exception: A card command error occurred while processing responses to card commands: OPEN_SECURE_SESSION
Transaction audit JSON data: {"targetSmartCard":{"selectApplicationResponse":{"apdu":"6F228408334D54522E494341A516BF0C13C70800000000750D264E53070A2D20021010019000","statusWord":"9000"},"isExtendedModeSupported":false,"isRatificationOnDeselectSupported":true,"isSvFeatureAvailable":false,"isPinFeatureAvailable":false,"isPkiModeSupported":false,"isDfInvalidated":false,"calypsoCardClass":"ISO","calypsoSerialNumber":"00000000750D264E","startupInfo":"0A2D2002101001","productType":"PRIME_REVISION_3","dfName":"334D54522E494341","modificationsCounterMax":"01AE","isModificationCounterInBytes":true,"files":[],"filesBackup":[],"svLastTNum":"00","svLastTNumBackup":"00","isHce":false,"svKvc":"00","applicationSubType":"02","applicationType":"20","sessionModification":"0A","payloadCapacity":"FA","isCounterValuePostponed":false,"isLegacyCase1":false},"apdus":["008A0B3904AF711A9400","6A82"]}
[11:01:01:138] [pool-1-thread-1] [INFO] ObservableLocalReaderAdapter - Reader [ELYCTIS CL reader FFFFFFFF0000 0] starts card removal sequence

Attachment: 20250626_CardData_1963796046.json
Description: application/json

PS D:\WORKSPACE\support\calypso\cna-tool-card-analyzer> java -jar .\Tool_CheckCardFileStructure-2.0.3.jar .\20250626_CardData_1963796046.json ".*"
[19:01:54:582] [main] [INFO] SmartCardServiceAdapter - Register plugin [PcscPlugin]
[19:01:54:586] [main] [INFO] PcscPluginWinAdapter - java.specification.version = 9.0. Reflexivity is allowed.
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by org.eclipse.keyple.plugin.pcsc.PcscPluginWinAdapter (file:/D:/WORKSPACE/support/calypso/cna-tool-card-analyzer/Tool_CheckCardFileStructure-2.0.3.jar) to field sun.security.smartcardio.PCSCTerminals.contextId
WARNING: Please consider reporting this to the maintainers of org.eclipse.keyple.plugin.pcsc.PcscPluginWinAdapter
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release
[19:01:54:613] [main] [INFO] ToolUtils - Card reader, plugin; PcscPlugin, name: ELYCTIS CL reader FFFFFFFF0000 0
[19:01:54:613] [main] [INFO] Tool_AnalyzeCardFileStructure - = Card Reader  NAME = ELYCTIS CL reader FFFFFFFF0000 0
[19:01:54:645] [main] [INFO] Tool_CheckCardFileStructure - ========================================================================================================
[19:01:54:645] [main] [INFO] Tool_CheckCardFileStructure - Checking Application: 334D54522E494341
[19:01:54:898] [main] [INFO] Tool_CheckCardFileStructure - Checking file with SFI (02)
[19:01:54:898] [main] [INFO] Tool_CheckCardFileStructure - Checking file with SFI (03)
[19:01:54:898] [main] [INFO] Tool_CheckCardFileStructure - Checking file with SFI (04)
[19:01:54:898] [main] [INFO] Tool_CheckCardFileStructure - Checking file with SFI (05)
[19:01:54:898] [main] [INFO] Tool_CheckCardFileStructure - ========================================================================================================
[19:01:54:898] [main] [INFO] Tool_CheckCardFileStructure - Checking Application: 304554502E494341
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - Checking file with SFI (14)
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - Checking file with SFI (15)
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - ========================================================================================================
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - No/Incorrect data ref found for file 0200. Should be linked with file 0000
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - No/Incorrect data ref found for file 0300. Should be linked with file 0000
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - No/Incorrect data ref found for file 0400. Should be linked with file 0000
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - No/Incorrect data ref found for file 1000. Should be linked with file 0000
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - No/Incorrect data ref found for file 1014. Should be linked with file 0000
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - No/Incorrect data ref found for file 1015. Should be linked with file 0000
[19:01:55:026] [main] [INFO] Tool_CheckCardFileStructure - ========================================================================================================

PS D:\WORKSPACE\support\calypso\cna-tool-card-analyzer> java -jar .\Tool_AnalyzeCardFileStructure-2.0.3.jar ".*"
[18:58:17:888] [main] [INFO] SmartCardServiceAdapter - Register plugin [PcscPlugin]
[18:58:17:904] [main] [INFO] PcscPluginWinAdapter - java.specification.version = 9.0. Reflexivity is allowed.
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by org.eclipse.keyple.plugin.pcsc.PcscPluginWinAdapter (file:/D:/WORKSPACE/support/calypso/cna-tool-card-analyzer/Tool_AnalyzeCardFileStructure-2.0.3.jar) to field sun.security.smartcardio.PCSCTerminals.contextId
WARNING: Please consider reporting this to the maintainers of org.eclipse.keyple.plugin.pcsc.PcscPluginWinAdapter
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release
[18:58:17:952] [main] [INFO] ToolUtils - Card reader, plugin; PcscPlugin, name: ELYCTIS CL reader FFFFFFFF0000 0
[18:58:17:952] [main] [INFO] Tool_AnalyzeCardFileStructure - = Card Reader  NAME = ELYCTIS CL reader FFFFFFFF0000 0
[18:58:18:630] [main] [INFO] Tool_AnalyzeCardFileStructure - ========================================================================================================
[18:58:18:630] [main] [INFO] Tool_AnalyzeCardFileStructure - = Id:: 20250626_CardData_1963796046.json
[18:58:18:630] [main] [INFO] Tool_AnalyzeCardFileStructure - = Date:: 26/06/2025 18:58:18
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Version:: 002
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Software:: Calypso Card Analyzer
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Traceability:: 10C0CAA071E97536001546317014136153AC4F000607011C3D000000000000000000318400000000C853ACB04F01FE01FE0000000000002D100100000000000000040071000000000000750D264E0250184201322141000A0000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ========================================================================================================
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | AID                             | LID  | KVC1 | KVC2 | KVC3 | KIF1 | KIF2 | KIF3 | G0 | G1 | G2 | G3 |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - |                334D54522E494341 | 0000 |  41  |  41  |  41  |  00  |  00  |  00  | -- | -- | NN | NN |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ========================================================================================================
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = FCI:: 6F228408334D54522E494341A516BF0C13C70800000000750D264E53070A2D20021010019000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Serial Number:: 00000000750D264E (1963796046)
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Transaction Counter:: 0
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Revision:: PRIME_REVISION_3
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Session Buffer Size:: 430 bytes
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Platform (Chip Type):: 2D
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Issuer:: STMicroelectronics (10)
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Software Version:: 10.01
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Application Type:: 20
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Application Subtype:: 02
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = DF Status:: 00
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ========================================================================================================
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | LID  | Type | SID | #R | Size | G0 | G1 | G2 | G3 | DRef |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ----------------------------------------------------------
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | 0200 | Lin  | 02  | 01 | 0029 | AA | NN | -- | NN| 0000 |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #01:00000000000000080071330200000000750D264E025018000132214300
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | 0300 | Lin  | 03  | 01 | 0029 | PN | -- | NN | NN| 0000 |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | 0400 | Lin  | 04  | 01 | 0008 | AA | -- | NN | NN| 0000 |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #01:334D54522E494341
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | 1000 | Lin  | 05  | 04 | 0029 | AA | -- | -- | NN| 0000 |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #01:0000000000000000000000000000000000000000000000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #02:0000000000000000000000000000000000000000000000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #03:0000000000000000000000000000000000000000000000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #04:0000000000000000000000000000000000000000000000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ========================================================================================================
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | AID                             | LID  | KVC1 | KVC2 | KVC3 | KIF1 | KIF2 | KIF3 | G0 | G1 | G2 | G3 |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - |                304554502E494341 | 1000 |  41  |  41  |  41  |  FF  |  FF  |  FF  | S1 | S3 | NN | NN |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ========================================================================================================
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = FCI:: 6F228408304554502E494341A516BF0C13C70800000000750D264E53070A2D20021010019000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Serial Number:: 00000000750D264E (1963796046)
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Transaction Counter:: 0
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Revision:: PRIME_REVISION_3
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Session Buffer Size:: 430 bytes
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Platform (Chip Type):: 2D
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Issuer:: STMicroelectronics (10)
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Software Version:: 10.01
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Application Type:: 20
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = Application Subtype:: 02
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - = DF Status:: 00
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ========================================================================================================
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | LID  | Type | SID | #R | Size | G0 | G1 | G2 | G3 | DRef |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ----------------------------------------------------------
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | 1014 | Cycl | 14  | 01 | 0029 | AA | NN | NN | NN| 0000 |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #01:0000000000000000000000000000000000000000000000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - | 1015 | Cycl | 15  | 03 | 0029 | AA | NN | NN | NN| 0000 |
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #01:0000000000000000000000000000000000000000000000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #02:0000000000000000000000000000000000000000000000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - + #03:0000000000000000000000000000000000000000000000000000000000
[18:58:18:634] [main] [INFO] Tool_AnalyzeCardFileStructure - ========================================================================================================

Follow-Ups:
- Re: [keyple-dev] Issue towards using UseCase4 & 10 with SAM-S1 E1
  - From: Jean-Pierre Fortune

Prev by Date: [keyple-dev] Keyple Selection JSON Specification 1.0 is available!
Next by Date: Re: [keyple-dev] Issue towards using UseCase4 & 10 with SAM-S1 E1
Previous by thread: [keyple-dev] Keyple Selection JSON Specification 1.0 is available!
Next by thread: Re: [keyple-dev] Issue towards using UseCase4 & 10 with SAM-S1 E1
Index(es):
- Date
- Thread

Breadcrumbs
