Re: [jdt-dev] [platform-dev] Need hint on how to configure launch for testing compiler mod

Apologies for sending to platform-dev instead of the intended jdt-dev (Stephan clued me in, but hit Reply List without checking).

On 10/4/2019 3:54 PM, Richard Steiger wrote:


Thanks for the helpful remarks.

I've rebuilt my test project from scratch using PDE, and am seeing somewhat similar displays in the various editors to those you shared.  I've also reviewed some plugin dev tutorials and related materials, so have a slightly clearer conceptual map of JDT.

In PDE, I fiddled around with asking the (I think) Manifest Editor to auto-discover the required plugins.  The resulting new project is reporting 25 errors, most are due (its seems) to stale version qualifiers, the following lines are a reasonable proxy for most of the problems (copied from Problems view):

Invalid @since 3.19 tag on newAST(int, boolean); expecting @since 3.20    /org.eclipse.jdt.core/dom/org/eclipse/jdt/core/dom    line 438    @since tag problem
Invalid @since 3.19 tag on propertyDescriptors(int, boolean); expecting @since 3.20    /org.eclipse.jdt.core/dom/org/eclipse/jdt/core/dom    line 93    @since tag problem
Invalid @since 3.19 tag on RedundantNullCheckOnConstNonNullField; expecting @since 3.20    /org.eclipse.jdt.core/compiler/org/eclipse/jdt/core/compiler    line 1806    @since tag problem
Invalid @since 3.9 tag on org.eclipse.jface.text.MultiStringMatcher; expecting @since 3.10    /org.eclipse.text/src/org/eclipse/jface/text    line 30    @since tag problem
Project has only main sources but depends on project 'org.eclipse.jdt.core.tests.builder' which has only test sources.        Build path    Build Path Problem
The minor version should be incremented in version 3.8.700, since new APIs have been added since version 3.8.500    MANIFEST.MF    /org.eclipse.ui.console/META-INF    line 5    Version Numbering Problem
The minor version should be the same for version 1.6.0, since no new APIs have been added since version 1.5.0    MANIFEST.MF    /org.eclipse.core.databinding.beans/META-INF    line 5    Version Numbering Problem

At this point, my blockers are

  • I haven't discovered where the stale jars are specified (can't find anything in any project artifacts), and
  • the compiler plugins are still missing, despite my test project importing org.eclipse.jdt.core.JavaCore, org.eclipse.jdt.core.compiler.CompilationProgress, and org.eclipse.jdt.core.compiler.batch.BatchCompiler (which seem should have a hefty transitive closure, i.e. I expect to see >> 3 dependencies).

Stepping back from such details, my concern at this juncture is that what I'm trying to do is somewhat subtle, involves a lot of moving parts, and my previous test approach has holes in it that will require invoking a lot more JDT and related machinery beyond the compiler.  For example, I suspect I'll need to either load the subject projects in the Runtime Workbench (where the modified compiler is) instead of the Development Workbench (where the unmodified compiler faults their builds due to cp cycles), then build the new projects, then load and execute them, thereby completing the e2e verification.

Given my ponderous pace up to now, extrapolating to getting this working (even taking my forward learning curve into account) could take a lot of hand-holding, i.e. your and/or others' time (given willingness, and I'm not assuming anything).

Let me suggest an alternative: if you or another expert would be willing to get on a video call, at your convenience, and we could essentially pair-up on debugging the launch configuration, it might go pretty fast, and cost significantly less of everyone's time.  Could that work?

Meanwhile, I'll refine the test harness per the above realizations, so I'll have a more complete set of JDT plugin dependencies to work with.

FWIW, I'm also willing to pay it forward by contributing what I've learned (once I've really learned it :-) to (existing or new) documentation.

Thanks again,


On 10/4/2019 1:29 AM, Wim Jongman wrote:
Hi Richard,

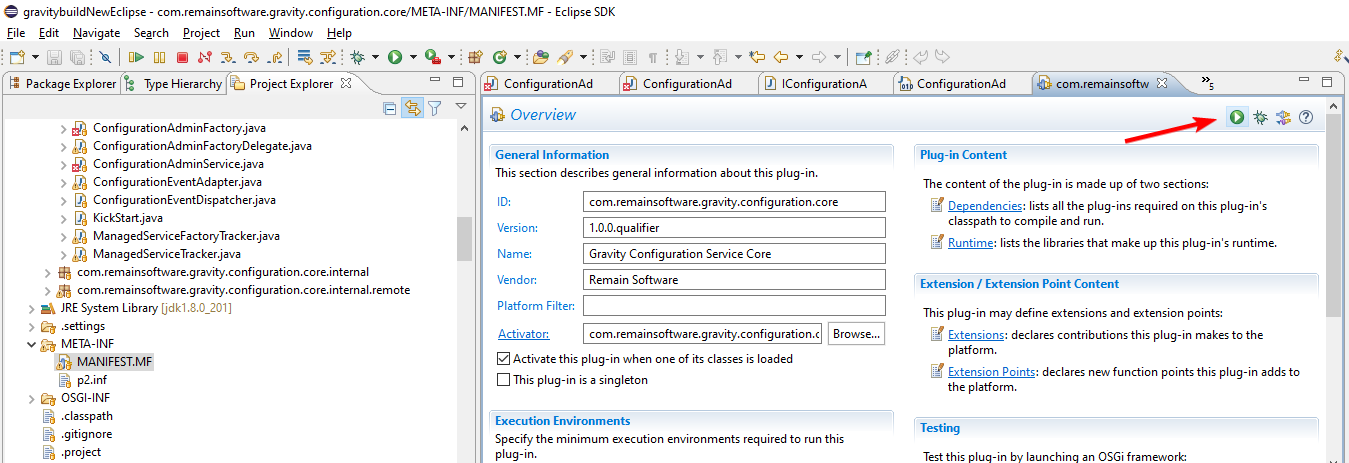

If you open the MANIFEST.MF part of your new plugin you notice a green run icon in the top left of the editor. This will launch your bundle in a new eclipse instance AND will create a run configuration.

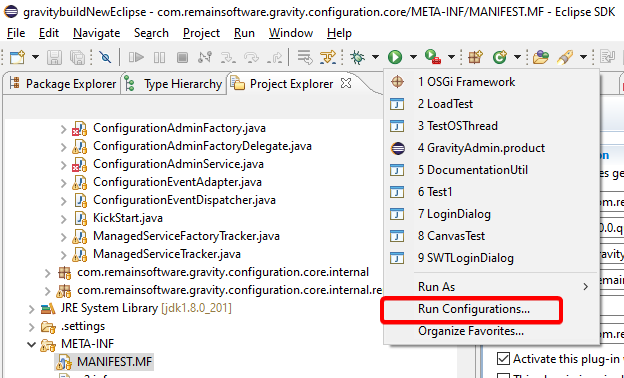

The run configurations can be edited via an action in the toolbar of the java perspective.

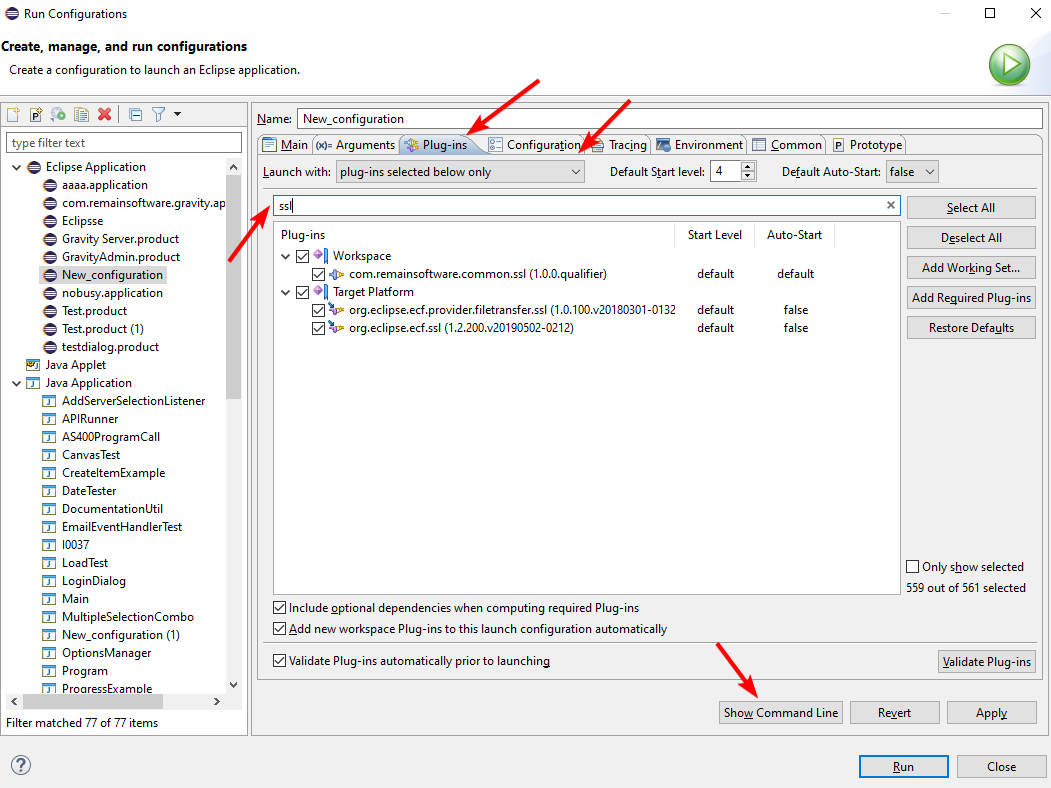

Find your configuration and examine all the tabs. The Plug-ins (bundles) tab lets you select the location from where the bundle should be picked.


On Thu, Oct 3, 2019 at 12:57 PM Richard Steiger <rsteiger@xxxxxxxxxxxxxxxx> wrote:


Thanks for the advice.   Using any available UI, how does one control which bundles are exported for a given launch?   Or, is there a doc that explains this?

Thanks again,


On 10/3/2019 2:41 AM, Wim Jongman wrote:
Hey Richard,

Maybe it is caused by the fact that Eclipse is using split packages. This enables multiple bundles (plugins) to contribute to the same package. I'm guessing that parts of the org.eclipse.core.runtime package are exported by other bundles. You may need to include all bundles that contribute to this package from the workspace.



On Thu, Oct 3, 2019 at 10:41 AM Richard Steiger <rsteiger@xxxxxxxxxxxxxxxx> wrote:

As I've discussed in prior messages to platform-dev@, I'm working on prototyping a proposed new ejc feature, to surface an option in the IDE's Java compiler preferences, allowing setting JavaCore.CORE_CIRCULAR_CLASSPATH, and adding an IGNORE value to it's range (in addition to ERROR and WARN), with the ultimate purpose of allowing building systems that intentionally leverage mutually-recursive modules (where I use module in the classic sense, not the JDK's Module subsystem since 9).

As I've also promised, I'll be creating a feature bug that explains the background, rationale, and proposed code changes, hopefully by this Friday.  That said, prior to doing so, I feel it's essential for me to empirically verify that this mod works end-to-end as I intend, and, for example, doesn't spawn a class-loading or other runtime hornet's nest (that's not straightforwardly avoided|addressed).

To this verification end, I'm trying to run a test harness that

  1. selects the IGNORE option,
  2. builds 2 (test) subject projects that are mutually-dependent,
  3. assuming that the subject projects successfully build, launches the main (entry-point) project (which triggers loading the second one, etc), and
  4. assuming no hornets appear, verifies that at least a minimal circular classpath case is correctly handled, end-to-end.

I've spent quite a bit of time reading eclipse docs, how-tos, the Eclipse Plugins bible (3rd ed), and browsed a fair amount of JDT code, trying to figure out how to get the test to work, and at this point, my pick is bent.  I could really use a hint how to proceed.

To set context, the test project, and both subject projects, all reside in the jdt-master workspace (btw, is there a vernacular shorthand for this workspace?).  My first attempt to get the test to work was simply to either run or debug it as a Java app.  It fails with the backtrace

Exception in thread "main" java.lang.SecurityException: class "org.eclipse.core.runtime.IStatus"'s signer information does not match signer information of other classes in the same package
    at java.lang.ClassLoader.checkCerts(
    at java.lang.ClassLoader.preDefineClass(
    at java.lang.ClassLoader.defineClass(
    at Method)
    at java.lang.ClassLoader.loadClass(
    at sun.misc.Launcher$AppClassLoader.loadClass(
    at java.lang.ClassLoader.loadClass(
    at net.ess.jcore.CompilerRunner.configureCompiler(
    at net.ess.jcore.CompilerRunner.doCompilation(
    at net.ess.jcore.CompilerRunner.main(

Just prior to throwing the SecurityException, the JVM's classpath is


My understanding is that the launchConfiguration that's being generated and applied is erroneous: as can be seen, the classpath includes references to plugin jars in my base eclipse installation (paths starting with C:\Users\rsteiger\.p2\pool\plugins\), and not from the just-built jdt-master workspace (paths starting with T:\eclipse\SDK\jdt-master\git\).  I've tried several approaches to fix this:

  • made the test project into a plugin (not sure I didn't goof this up, since am a plugin-noob);
  • discovering that the project's Plug-in Dependencies is a read-only classpath container containing the above incorrect jars, tried removing <classpathentry kind="con" path="org.eclipse.pde.core.requiredPlugins"/> from the project's .classpath, then adding kind="lib" entries for (what I thought are) the correct jars;
  • revisiting various references describing care and feeding of launchConfigs, finding nothing covering how to configure configs from the jdt workspace UI, just how to do so programmatically (which is of course totally useless in this context); and
  • gnashing my teeth and swearing.

None of these approaches have helped.

I turn to y'all to suggest a viable approach.

Thanks in advance,
