RE: [epf-dev] Today's EPF tool and meta-model meeting: Recordingavailable
|
Peter
and the Team,
Thank
you all for attending the Work Component demo on Friday.
As
discussed, I have attached a sample component ("Work component: Define Scope")
and the graphic of RUP Framework with Work Components.

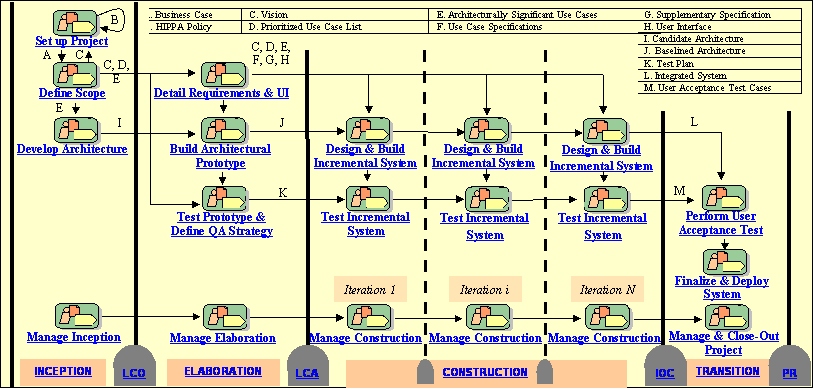

- image002.gif
: RUP Framework defined using Work Components
- _WorkComponent_Define Scope.html : Work Component
Specification

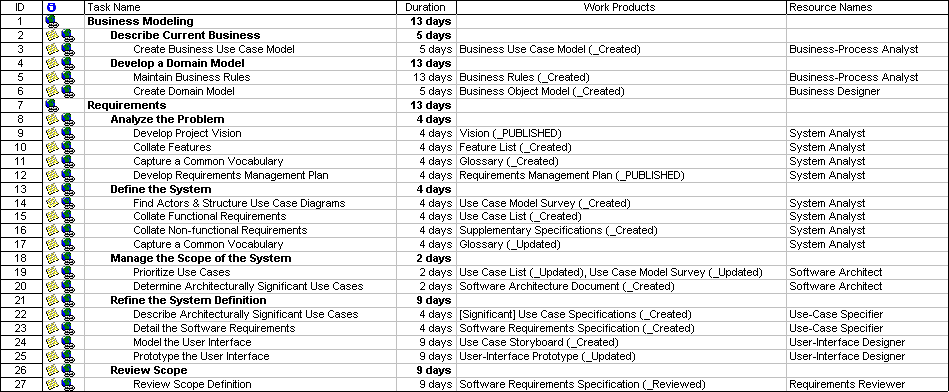

- _WorkComponent_Define
Scope.gif : Work Component Ganttlet
as an image
- _WorkComponent_Define
Scope.mpt : Work Component Ganttlet as a MS
Project Gantt Chart
template
- workComponents.mht :
A white paper on work components that has other graphics (incl. the detailed
one for Work Component: Build Architectural
Prototype)
Pl.
propose the next steps on incorporating this into EPF Composer as
discussed.
Thanks,
Kirti
See below for details on accessing the recoding of today's EPF tool and
meta-model meeting.
Thanks and best regards,
Peter
Haumer.
______________________________________________________________
Rational
Software | IBM Software Group
PETER HAUMER, Dr. rer. nat.
RUP Development,
Cupertino, CA
Tel/Fax: +1 408
863-8716
______________________________________________________________
Dear Peter,
Peter Haumer from International Business Machines (IBM) has
sent you the information below to access a recorded conference using Raindance
Seminar Edition.
(+)RECORDED CONFERENCE SUMMARY
=====================================================
Title:
0421-EPF_Tool_Sub-Project_Meeting.rmv
Date: 04/21/2006
Start
Time: 09:55 AM US/Pacific
Duration: 49 minutes
Presenter: (not
provided)
(+)RECORDED CONFERENCE DESCRIPTION
=====================================================
Discussed Convasys' Work
Components for EPF Composer.
(+)ACCESS THE RECORDING
=====================================================
Use the link below to access
this recorded conference:
https://cpc.on.raindance.com/confmgr/view_stored_doc.jsp?docId=92105653035090811606811646788&docType=recording
(+)TECHNICAL SUPPORT
=====================================================
If you have any issues
accessing this recorded conference, please contact technical support at:
1.888.966.8686 or online at
http://www.raindance.com/rndc/support/techSupport.jsp.
Thank you.
Confidentiality Statement:
This message is intended only for the individual or entity to which it is addressed. It may contain privileged, confidential information which is exempt from disclosure under applicable laws. If you are not the intended recipient, please note that you are strictly prohibited from disseminating or distributing this information (other than to the intended recipient) or copying this information. If you have received this communication in error, please notify us immediately by return email.
Attachment:
Description: image002.gif
Title: Microsoft Project Exported Information
_WorkComponent_ Define Scope
Purpose
This work component covers all activities that are required
to define the high level scope of a project.
Owner
System Analyst
Microsoft Project Plan Template
_WorkComponent_ Define Scope.mpt
Candidate Workflow Details
Activities
|
Resources
|
Work Products
|
Business Modeling
|
|
|
Describe Current Business
|
|
|
Create Business Use Case Model
|
Business-Process Analyst
|
Business Use Case Model (_Created)
|
Develop a Domain Model
|
|
|
Maintain Business Rules
|
Business-Process
Analyst
|
Business Rules (_Created)
|
Create Domain Model
|
Business Designer
|
Business Object Model (_Created)
|
Requirements
|
|
|
Analyze the Problem
|
|
|
Develop Project Vision
|
System Analyst
|
Vision (_PUBLISHED)
|
Collate Features
|
System Analyst
|
Feature List (_Created)
|
Capture a Common Vocabulary
|
System Analyst
|
Glossary (_Created)
|
Develop Requirements Management
Plan
|
System Analyst
|
Requirements Management Plan (_PUBLISHED)
|
Define the System
|
|
|
Find Actors & Structure Use
Case Diagrams
|
System Analyst
|
Use Case Model Survey (_Created)
|
Collate Functional Requirements
|
System Analyst
|
Use Case List (_Created)
|
Collate Non-functional
Requirements
|
System Analyst
|
Supplementary Specifications (_Created)
|
Capture a Common Vocabulary
|
System Analyst
|
Glossary (_Updated)
|
Manage the Scope of the
System
|
|
|
Prioritize Use Cases
|
Software Architect
|
Use Case List (_Updated), Use Case Model Survey (_Updated)
|
Determine Architecturally
Significant Use Cases
|
Software Architect
|
Software Architecture Document (_Created)
|
Refine the System Definition
|
|
|
Describe Architecturally
Significant Use Cases
|
Use-Case Specifier
|
[Significant] Use Case Specifications (_Created)
|
Detail the Software
Requirements
|
Use-Case Specifier
|
Software Requirements Specification (_Created)
|
Model the User Interface
|
User-Interface Designer
|
Use Case Storyboard (_Created)
|
Prototype the User Interface
|
User-Interface Designer
|
User-Interface Prototype (_Updated)
|
Review Scope
|
|
|
Review Scope Definition
|
Requirements Reviewer
|
Software Requirements Specification (_Reviewed)
|
|
Attachment:
_WorkComponent_Define Scope.gif
Description: _WorkComponent_Define Scope.gif
Attachment:
_WorkComponent_ Define Scope.mpt
Description: _WorkComponent_ Define Scope.mpt
Attachment:
workComponents.mht
Description: workComponents.mht
