Re: [sumo-user] Costum shape for connections

[Sasan Amini <aminissn@xxxxxxxxx>]

I didn't know that option exists. I had to activate "show lane to lane connection" under the Junction tab in the visualization settings to be able to select a connection in inspection mode.

Thanks.

On Thu, Mar 17, 2022 at 12:01 PM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

Not yet automatically (https://github.com/eclipse/sumo/issues/10352)

The straight lines indicate cases where the connection shape algorithm has "given up". You can define a smooth shape manually though (via the connection context menu 'set custom shape')

Am Do., 17. März 2022 um 11:54 Uhr schrieb Sasan Amini <aminissn@xxxxxxxxx>:

Dear all,

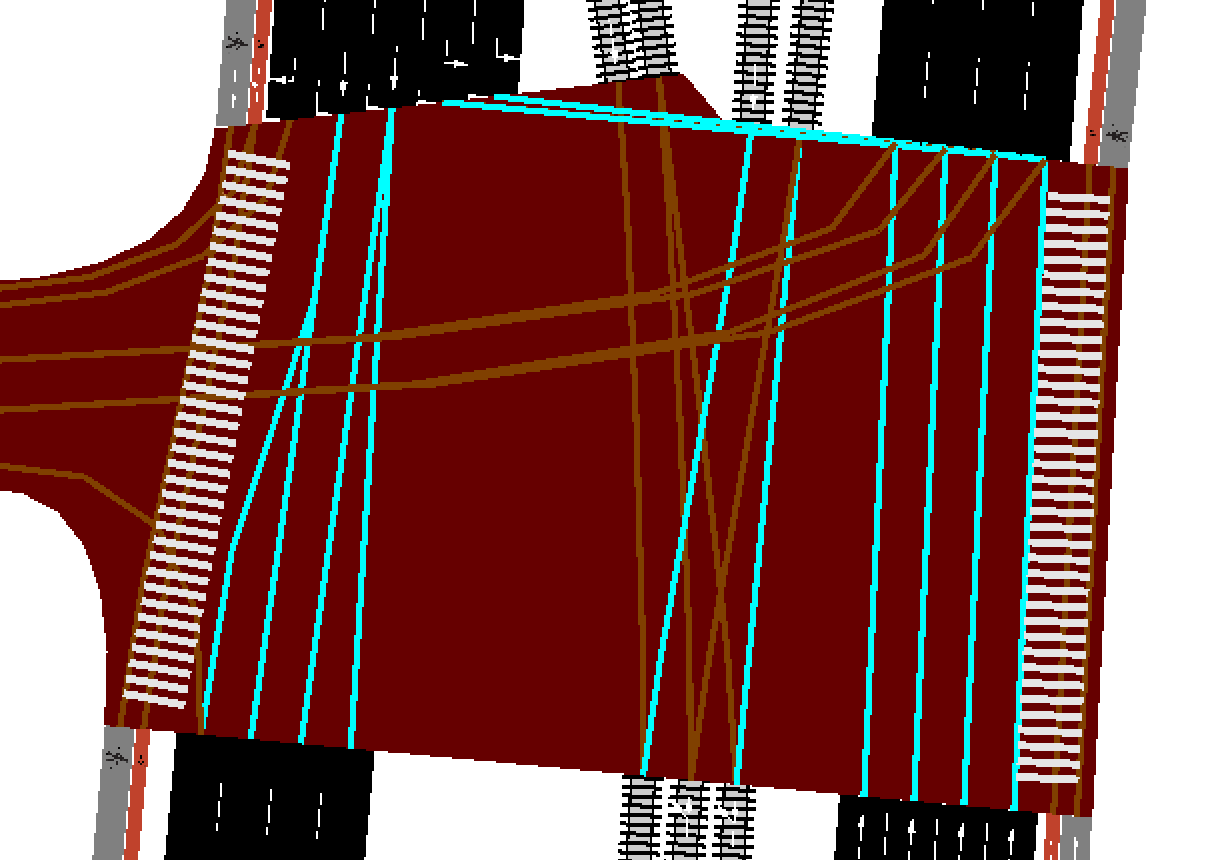

After changing the shape of an intersection and manually creating new connections, very rarely, connections appear as a straight-line connection from source lane to target lane which is not realistic. I don't know if this has something to do with the start and end point of the intersection polygon, but I was just wondering if I can specify the shape of the connection as a spline? just like edges.

Thanks,

Sasan
