Re: [sumo-user] Sumo-gui crashes as reading my file

Thank you very much. Your file, it helped me a lot

Vào 14:46, Th 5, 10 thg 3, 2022 Hung Trinh <tuanhungcda@xxxxxxxxx> đã viết:

I made for you now

On Thu, 10 Mar 2022 at 15:13, Thanhnt Nguyen <thanhnt.fit@xxxxxxxxx> wrote:
Dear all
I am a newbie of SUMO and yesterday I wrote my own .net.xml file to simulate a scenario

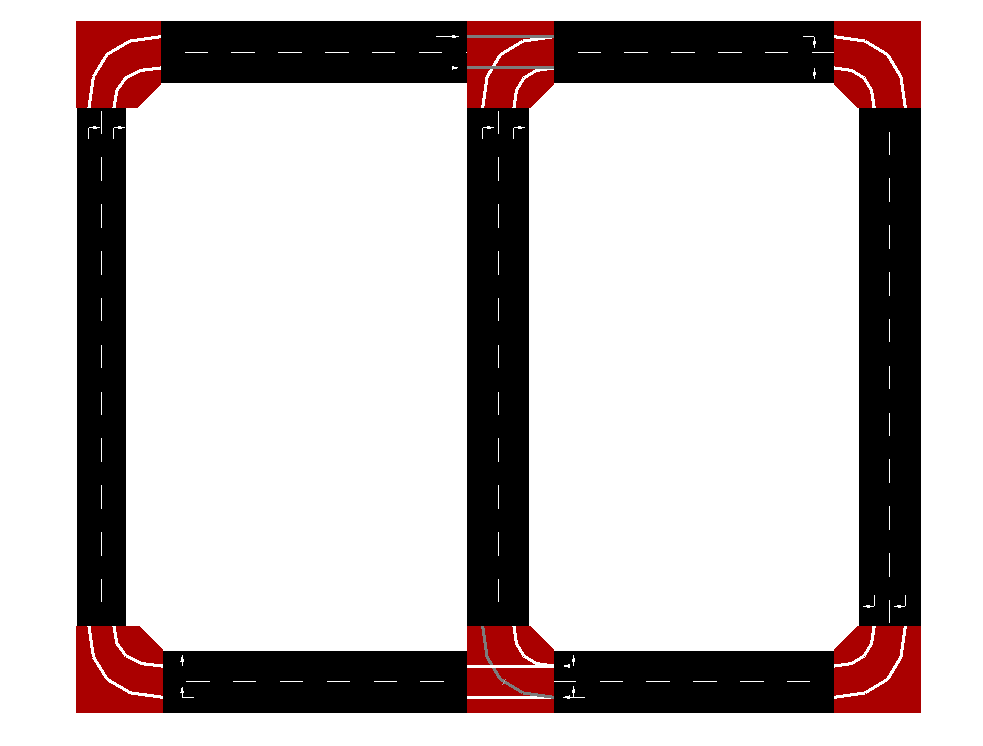

The .net.xml is opened by netedit and the tool shows topology like this:

Then I add a new edge "J5_0"
<edge id=":J5_0" function="internal">
        <lane id=":J5_0_0" index="0" speed="10.00" length="8.31" width="4.00" shape="-38.95,6.00 -41.20,6.32 -42.81,7.29 -43.78,8.90 -44.1,11.15"/>
        <lane id=":J5_0_1" index="1" speed="10.00" length="14.76" width="4.00" shape="-38.95,2.00 -42.95,2.57 -45.81,4.29 -47.53,7.15 -48.1,11.15"/>
    </edge>
The netedit still opens .net.xml however, the sumo-gui 1.12.0 crashes unexpectedly and it prints no report for revealing any details.
I would say "J5_0" is the problem but I don't know why the crash happened and how to fix it.
Could you please help me figure it out? I read the document on the SUMO website but I have not yet solved. My purpose is just to copy two edges over here:
Thank you in advance
PS: I attached the .net.xml and rou.xml in "files.zip" file
--
Nguyen Tien Thanh
Department of Software Engineering
School of Information and Communication Technology (SoICT, http://www.fit.hut.edu.vn)
Hanoi University of Technology (HUT, http://www.hut.edu.vn)
1 DaiCoViet Road, Hanoi, Vietnam
Tel: +84-4-8682595/8683730 Fax +84-4-8692906
Mobile: +84987768886
           ntthanh@xxxxxxxxxxxxx
           thanhnt.fit@xxxxxxxxx
Website: www.fit.hut.edu.vn/~thanhnt
