Re: [sumo-user] Questions about the junction

[Yiran Zhang <yiranz94@xxxxxx>]

Thanks Jacob!

Best,

Yiran

On Wed, May 19, 2021 at 12:30 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

SUMO currently expects there to be at most 1 sidewalk per road running to the right of the road lanes (on the left, for left-hand networks).

If you need sidewalk on both sides of an one-way road, then you must add an extra edge for the sidewalk in the opposite direction.

regards,

Jakob

Am Di., 18. Mai 2021 um 19:43 Uhr schrieb Yiran Zhang <yiranz94@xxxxxx>:

Dear sir/madam

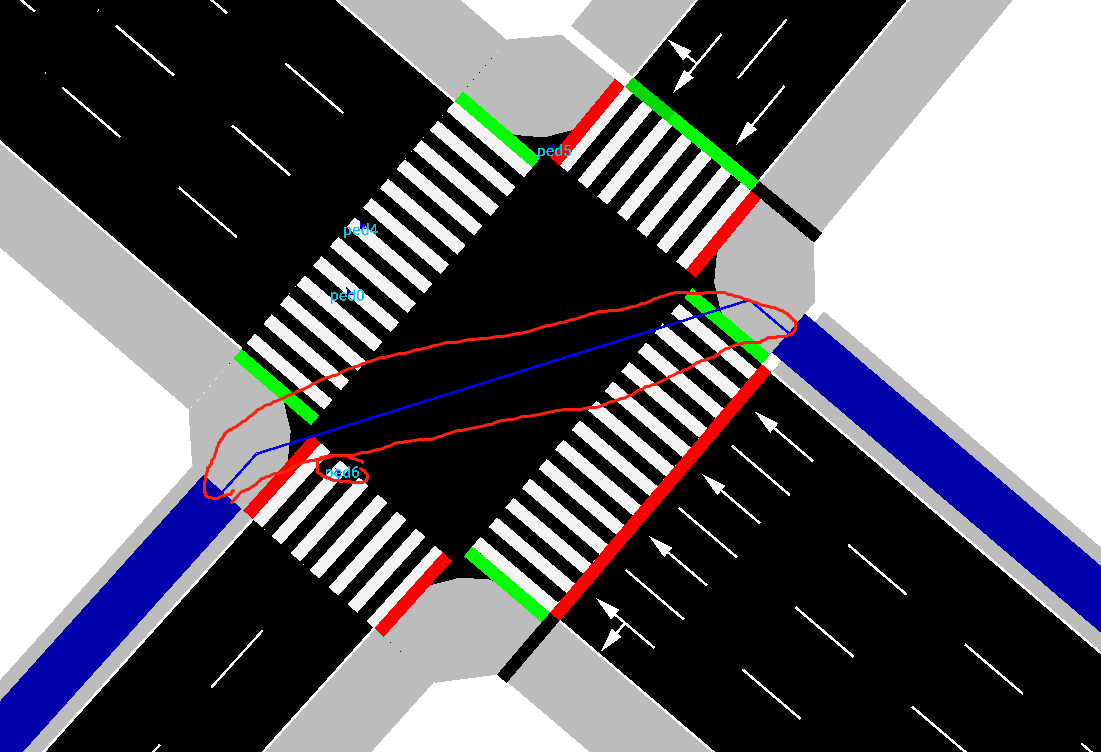

I am conducting a test for a single intersection in SUMO. I found that when I assigned the pedestrian from the west to the south, he/she didn't follow the crossings, instead, he/she simply moves from the northwest corner to the southeast corner (see figure below, ped 6).

I noticed that my vehicle road is one-way, and the pedestrian road is generated with the vehicle road, deleting the left side of the pedestrian road will correct the pedestrian behavior. However, I want to keep the sidewalks and I wonder if there exist any ways I can avoid this crossing without changing the sidewalk(pedestrian lanes)?

The test file is also attached. Thanks for your time and every help!

Best regards,

Yiran

_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To unsubscribe from this list, visit https://www.eclipse.org/mailman/listinfo/sumo-user

_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To unsubscribe from this list, visit https://www.eclipse.org/mailman/listinfo/sumo-user

--

Best regards,

Yiran Zhang

Graduate Student

intelligent Urban Transportation Systems (iUTS) Lab

Department of CEE

University of Washington

Email: yiranz94@xxxxxx
