Re: [sumo-user] make the network circular in a non-geometrical way

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

Hello,

I suppose the FAQ advice for creating non-geometrical loop was misleading. My suggestion is, that you define an edge with sensible geometry (i.e. a big detour loop around the central intersection (so the geometry will look fine) and then declare it's length to be 0.1m.

Reason: netconvert will always compute geometry and if edges intersect at strange angles the network will look like a mess. (An alternative would be to manually define the geometry of the border junctions.

regards,

Jakob

Am Mo., 23. März 2020 um 03:43 Uhr schrieb Thanos Tasakos <thanos.tas@xxxxxxxxx>:

Good evening,

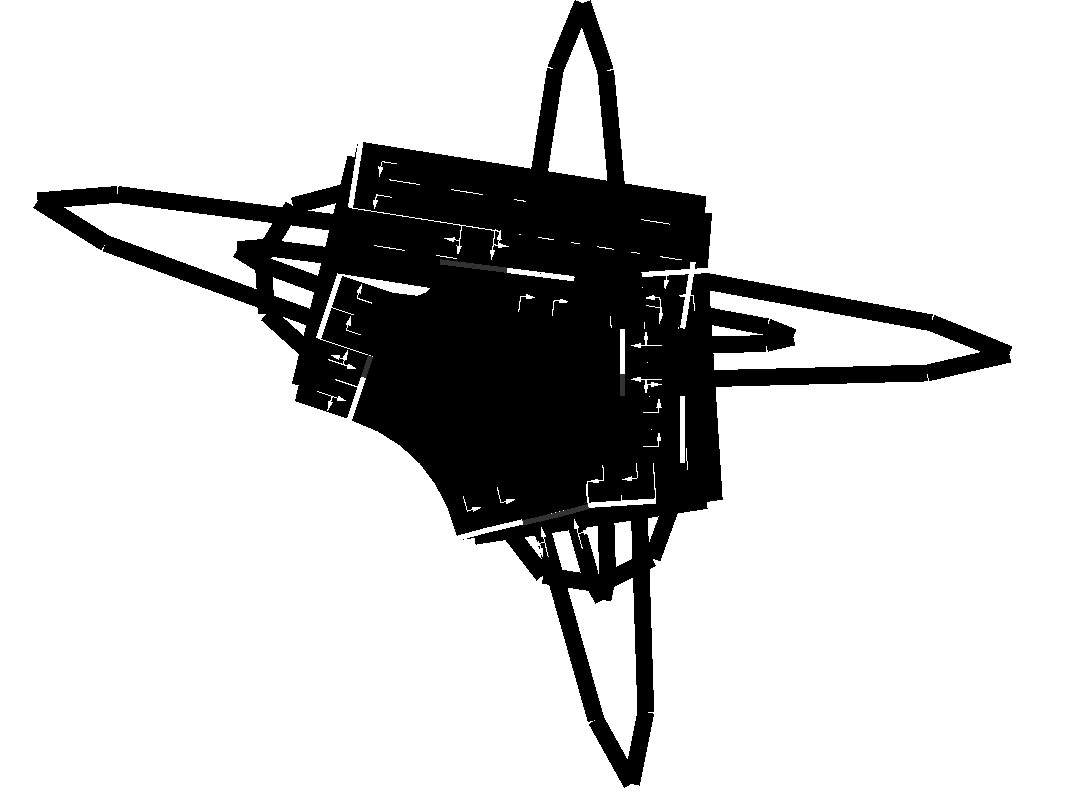

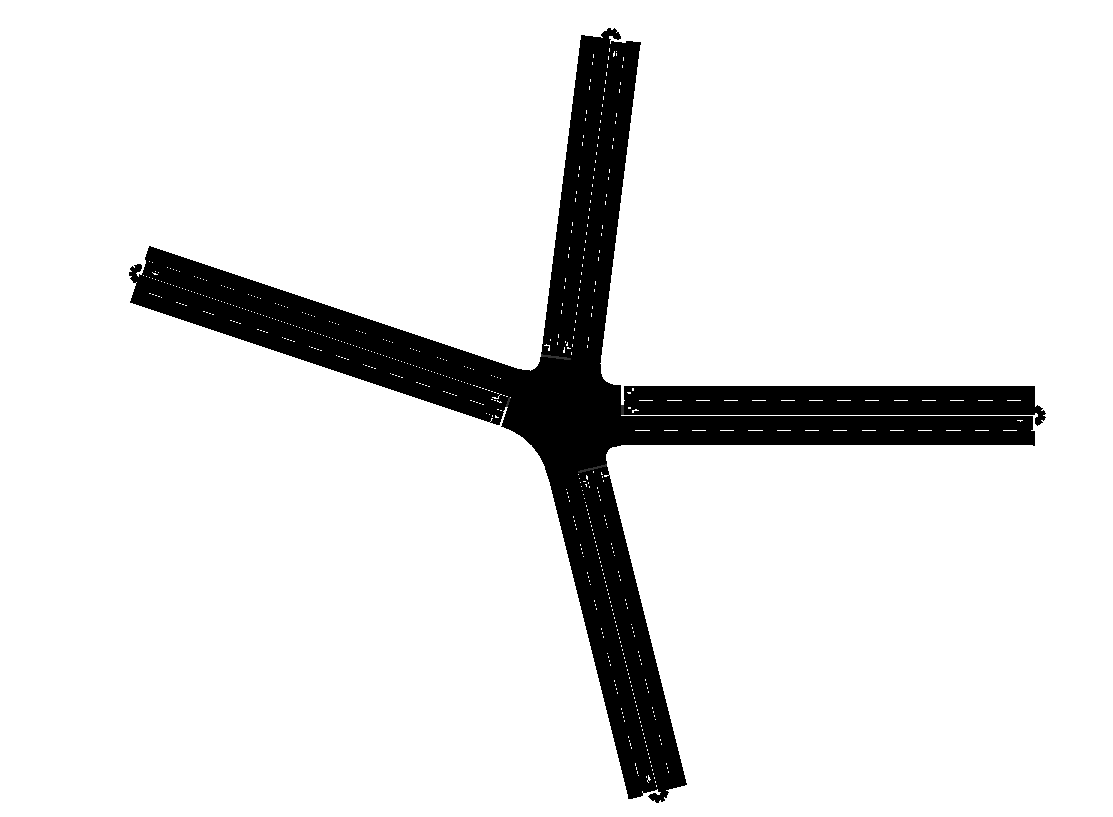

i came across a peculiar bug when i try to close a network in a non geometrical way. If i specify the edge length as 0.1, as said in documentation it throws a warning "junction shape is to far away from the original node position"  and results in  the second photo. The only difference between the first and second network is that in the second case i specify 4 extra edges (from top to bottom, bottom to top, left to right and right to left) and set them to 0.1 length.
