Re: [sumo-user] invalid pedestrian crossings

["Barto, Martin" <Martin.Barto@xxxxxxxxx>]

Thank you for your answer Jacob,

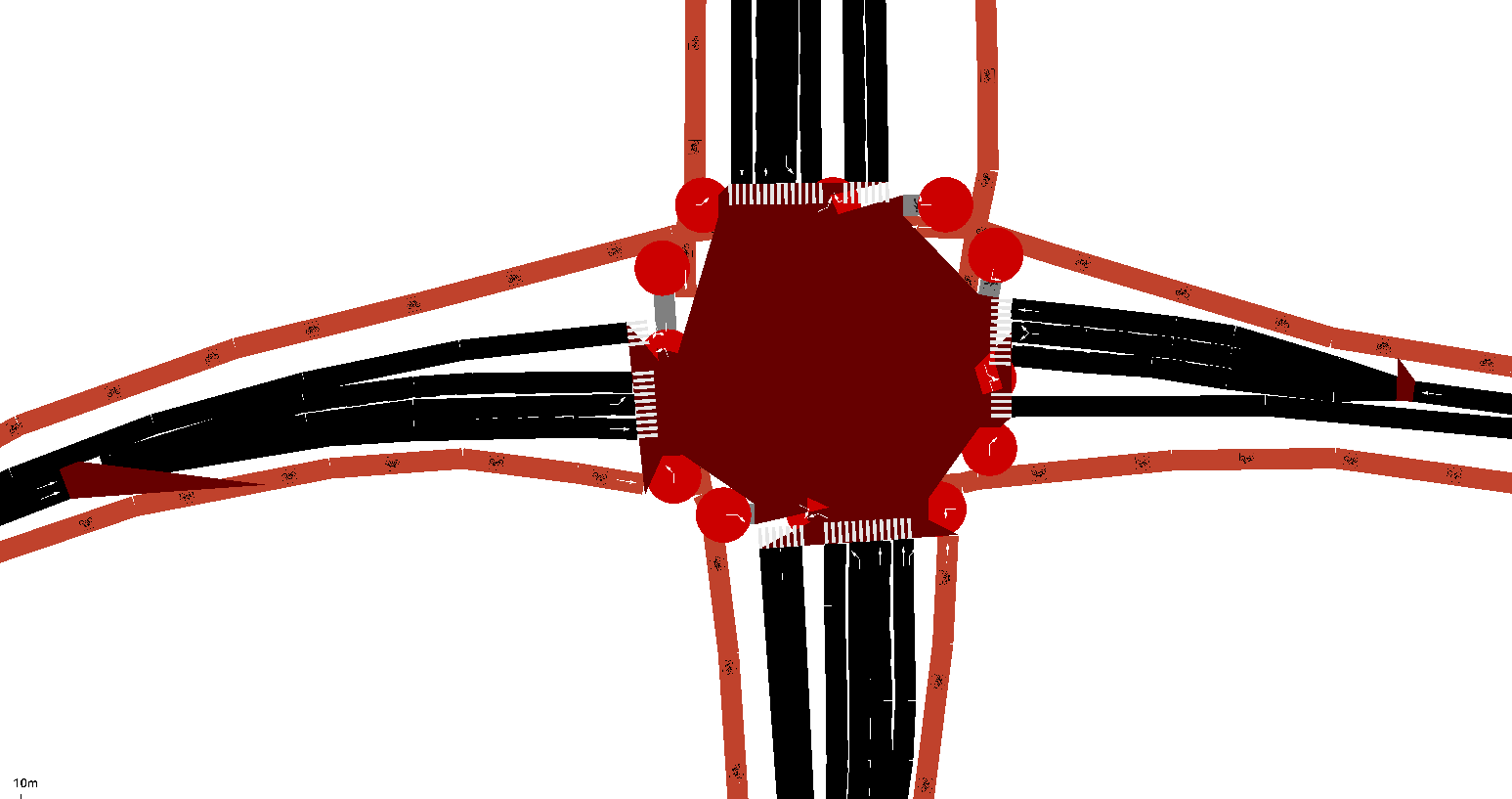

I did the changes according to your advices. That worked fine. The warnings have disappeared. But this change has a nasty side-effect. All the connections with edges that have sidewalks seems to be messed up. This is also visible in Netedit:





How can I get the connections fixed according the .con.xml without changing manually in Netedit or in the .net.xml? My goal is to make a SUMO network automatically from an an existing standard intersection topology.



I included my files again.



Kind regards,

Martin Barto
Senior Verkeerskundige
Mobiliteit



Vialis is een Koninklijke VolkerWessels onderneming.

Postbus 184, 3990 DD Houten | tel. +31648510557 mob. +31648510557

.
.

Van: sumo-user-bounces@xxxxxxxxxxx [mailto:sumo-user-bounces@xxxxxxxxxxx] Namens Jakob Erdmann
Verzonden: zondag 8 juli 2018 23:41
Aan: Sumo project User discussions <sumo-user@xxxxxxxxxxx>
Onderwerp: Re: [sumo-user] invalid pedestrian crossings



Hello,

netconvert rejects crossings that do not have a sidewalk or another crossing on each side.

Invalid crossings are not written to the .net.xml files and therefore you cannot find them.

To better understand the problem, it helps if you load the input files directly into netedit (use the same command with netedit instead of netconvert).

Netedit will color invalid crossings in red (requires pressing F5 once).

Also, the latest development version of netconvert and netedit give additional information in the warning message.



regards,

Jakob





2018-07-07 0:17 GMT+02:00 Barto, Martin <Martin.Barto@xxxxxxxxx>:

Dear SUMO-users,



I get warnings using netconvert that says:

Warning: Invalid pedestrian topology: crossing ‘:KR27_c3’ has no target.

Warning: Invalid pedestrian topology: crossing ‘:KR27_c5’ has no target.



In .net.xml the edges don’t exist.



The strange thing is that all the other pedestrian crossings are converted into .net.xml correctly. The input-files seems logical, so I don’t know what I’m doing wrong here.



Does anyone have suggestions?



I added all the files. The call is:

netconvert --node-files=Output/KR27.nod.xml --edge-files=Output/KR27.edg.xml --connection-files=Output/KR27.con.xml --type-files=Output/all.typ.xml --tllogic-files=Output/KR27.tll.xml --output-file=Output/KR27.net.xml



Met vriendelijke groet,

Martin Barto
Senior Verkeerskundige
Mobiliteit



Vialis is een Koninklijke VolkerWessels onderneming.

Postbus 184, 3990 DD Houten | tel. +31648510557 mob. +31648510557

.
.

---
