Re: [sumo-user] Grid Deadlock
I enabled teleporting and got the following for a small amount of vehicles (10)

Warning: Teleporting vehicle 'flow0.3'; waited too long (wrong lane), lane='C1toB1_2', time=3091.00.
Warning: Vehicle 'flow0.3' ends teleporting on edge 'B1toB0', time 3091.00.

What should be a good number for teleporting? I had set it on 1000. And in 1 or 10 is teleporting everything.

Best regards,
José

On Tue, 19 Jun 2018 at 13:54, Jose Monreal Bailey <jmonreal@xxxxxxxxx> wrote:
I have ran the simulation a few times, and its the same 2 vehicles that stop there flow0.7 and flow0.9 from a total of 100 vehicles(before 20).

On Tue, 19 Jun 2018 at 13:47, Jose Monreal Bailey <jmonreal@xxxxxxxxx> wrote:
Jakob,

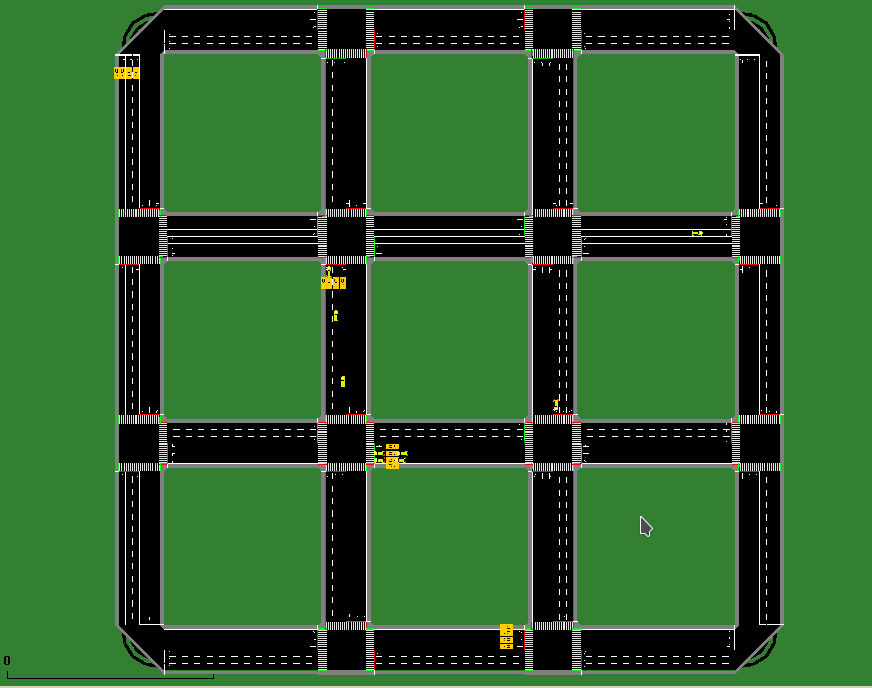

This is another execution and there are four at the moment in deadlock,





On Tue, 19 Jun 2018 at 13:10, Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

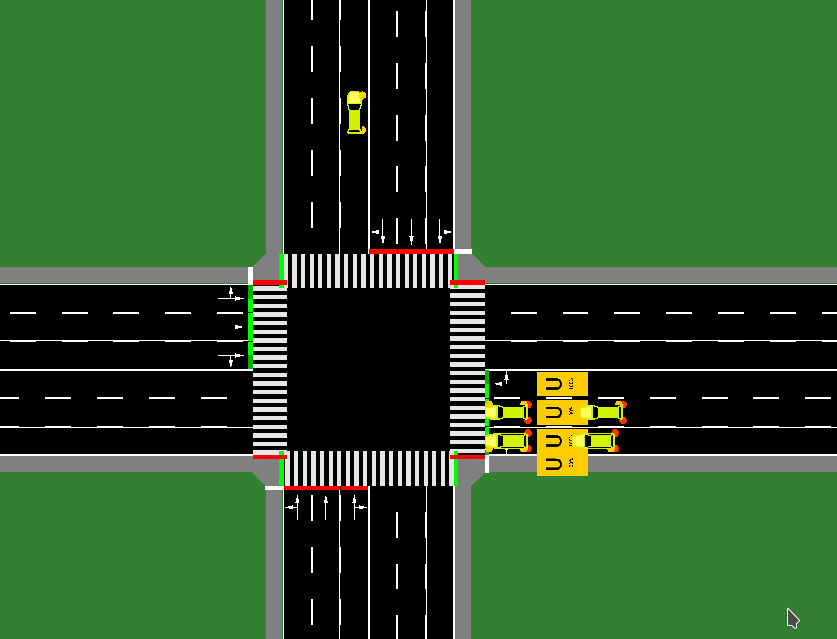

If the deadlock consists only of the vehicles show in the first screenshot, please paste another screenshot that shows a closeup of the vehicles in front of the intersection.

2018-06-19 13:33 GMT+02:00 Jose Monreal Bailey <jmonreal@xxxxxxxxx>:
I added that to my flow, but I get the same error.

This is my rou.xml definition


<routes xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/routes_file.xsd">
  <!-- Vehicles Types -->
  <vType color="211,242,0" guiShape="passenger/wagon" id="schumacher" maxSpeed="22.22" speedFactor="normc(1,0.1,0.2,2)" vClass="private" />

  <!-- flows -->
  <flow id="flow0" begin="0" number="20" type="schumacher" from="B0toB1" to="C1toB1" via="C2toC1" departLane="best"/>
</routes>

and my additional file

<additionals>
    <rerouter id="rerouter0" edges="B1toB2">
        <interval end="1e9">
            <destProbReroute id="C1toB1" />
            <destProbReroute id="A2toA3" />
        </interval>
    </rerouter>
    <rerouter id="rerouter1" edges="C1toB1">
        <interval end="1e9">
            <destProbReroute id="B1toB2" />
            <destProbReroute id="B0toC0" />
        </interval>
    </rerouter>
    <rerouter id="rerouter0" edges="A2toA3">
        <interval end="1e9">
            <destProbReroute id="B1toB2" />
        </interval>
    </rerouter>
    <rerouter id="rerouter1" edges="B0toC0">
        <interval end="1e9">
            <destProbReroute id="B1toB2" />
        </interval>
    </rerouter>
</additionals>
Its a grid of 4 by 4.

After a few seconds the deadlock starts.
Is there any improvement I could do to my configurations?
I am adding 100 vehicles to the network from time 0 to 6000.

Best regards,
Jose

On Tue, 19 Jun 2018 at 12:19, Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

2018-06-19 13:09 GMT+02:00 Jose Monreal Bailey <jmonreal@xxxxxxxxx>:
Hey everyone,

Has anyone experienced Deadlocks in their simulations?
I have been trying to figure out why is this happening without luck.

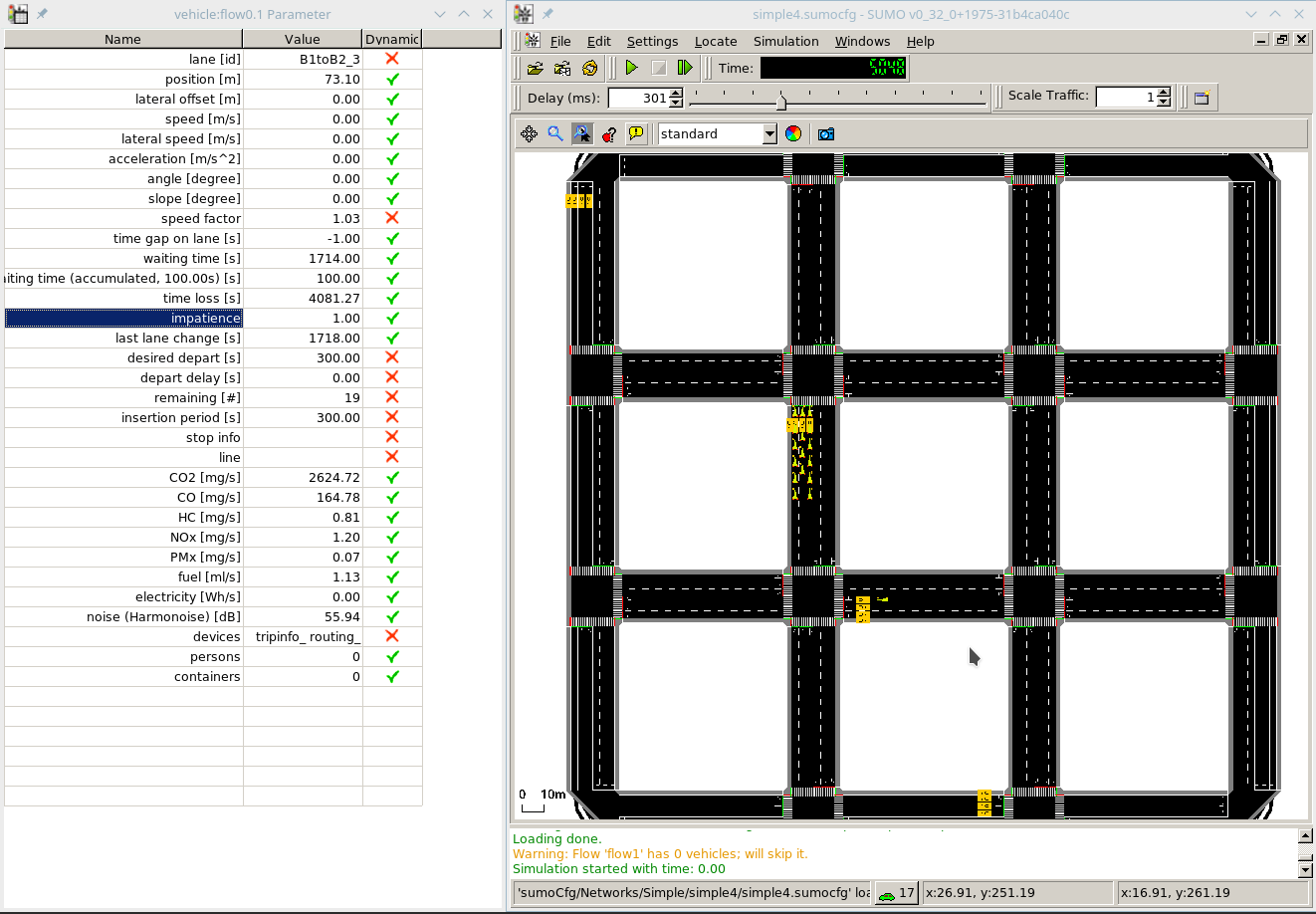

Here is a Screenshot,


If anyone has any hint, I will thank you.

Best regards,
José
