Hi, I would
like to load a configuration with sumo and debug it while
working in this mode using Visual Studio. I set the file
named “bus.sumocfg” as argument doing the following:
Projectàsumo PropertiesàConfiguration PropertiesàDebuggingàCommand Arguments and there I write
bus.sumocfg that I put in the bin folder where the
sumoD.exe is. When I debug though I get the following error:
'sumoD.exe'
(Win32): Loaded
'C:\Users\stefa\SUMOproject\sumo-master\bin\sumoD.exe'.
Symbols loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\ntdll.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\kernel32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\KernelBase.dll'.
Symbols loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\ws2_32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\rpcrt4.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\msvcp140d.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\vcruntime140d.dll'.
Symbols loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Program Files
(x86)\DLR\Sumo\bin\proj.dll'. Cannot find or open the PDB
file.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\ucrtbased.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\ucrtbased.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Unloaded 'C:\Windows\System32\ucrtbased.dll'
'sumoD.exe'
(Win32): Loaded
'C:\libraries\xerces-c-3.2.0_64\bin\xerces-c_3_2D.dll'.
Symbols loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Program Files
(x86)\DLR\Sumo\bin\FOXDLL-1.6.dll'. Module was built without
symbols.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\msvcr120.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\user32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\win32u.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\gdi32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\gdi32full.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\msvcp_win.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\ucrtbase.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\advapi32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Program Files
(x86)\DLR\Sumo\bin\libpng16.dll'. Cannot find or open the
PDB file.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\msvcrt.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\sechost.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\opengl32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\glu32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\wsock32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\winspool.drv'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\combase.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\bcryptprimitives.dll'.
Symbols loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\kernel.appcore.dll'.
Symbols loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\propsys.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\IPHLPAPI.DLL'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\oleaut32.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\SHCore.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\bcrypt.dll'. Symbols
loaded.
'sumoD.exe'
(Win32): Loaded 'C:\Windows\System32\imm32.dll'. Symbols
loaded.
Exception
thrown at 0x00007FFE3867F218 in sumoD.exe: Microsoft C++
exception: xercesc_3_2::RuntimeException at memory location
0x000000643998DDF0.
Exception
thrown at 0x00007FFE3867F218 in sumoD.exe: Microsoft C++
exception: ProcessError at memory location
0x000000643998E740.
The
thread 0x57a8 has exited with code 1 (0x1).
The
thread 0x3bdc has exited with code 1 (0x1).
The
thread 0x763c has exited with code 1 (0x1).
The
thread 0x524 has exited with code 1 (0x1).
The
program '[19812] sumoD.exe' has exited with code 1 (0x1).
Was my
procedure right? What should I do?
Thank you in advance for the answer
Best Regards
Stefano
Niero
For
solving the problem with the debug mode, you need to select
a different project as BUILD ALL as „startup project” (For
example sumo-gui, netedit, etc.) Check it, and tell me if
works.
Thank you, I
think that that is the same folder I downloaded. It works
but I have the same problems mentioned in the mail before
once I start the debug mode with visual.
Now
I know wo is the error: You need to download the source
code directly from GitHUB (https://github.com/eclipse/sumo/archive/master.zip)
instead from windows build page in der Wiki. Try to compile
this version.
I was using
the sumo-git that was available in the windowsbuild page in
the wiki. I have to tell you though that in order to be sure
that my folder containing the code was not spoiled I looked
for a redownload that I found on this page:
https://github.com/eclipse/sumo
The folder
here is called sumo-master instead of sumo-git and it is
slightly bigger that the former. The CMake gave me no
problem and after the configuring, by clicking “generate”
the only message appeared in the log is “generating done”. I
opened the project with visual and built it: no errors
appeared and the processes this time are 80 instead of the
64 that were before. Now, I suppose this time everything
worked fine and in the bin folder, the D version of the
.exe file was generated with a dimension bigger than the
regular one (eg. sumo-guiD.exe is 27MB instead of the 5MB of
sumo-gui.exe), because of the debugging information I
suppose. If I open the D file it opens the program that
seems to work fine but if I go to the debug option in Visual
it opens a window saying:

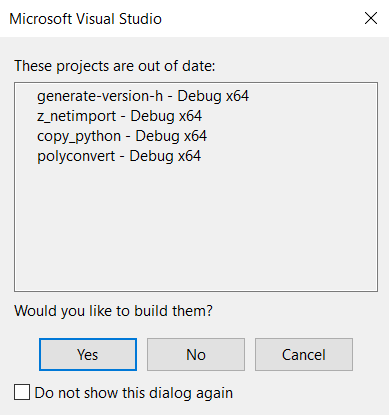

(in case you
don’t see the picture it says:
These
projects are out of date:
generate-version-h
– Debug x64
z_netimport
– Debug x64
copy_python
– Debug x64
polyconvert
– Debug x64
Would you
like to build them?)
Whatever I
say it builds or not the files and then opens this window:

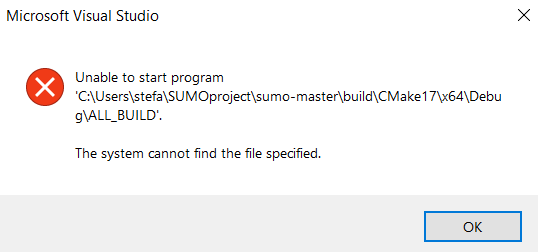

Unable to
start program
‘C:\Users\stefa\SUMOproject\sumo-master\build\CMake17\x64\Debug\ALL_BUILD’.
The system cannot find the file specified
And it
doesn’t let me proceed.
Was this new
folder right? What does this error mean? Does the debugging
of sumo works in a different way because of its complexity?
Thank you
for the attention
Stefano
Reunzipped?
Are you using a Zip version of code, or are you doing a
check out of repository using GIT?
Regards
Sorry
for the series of mails but I tried to reperform the CMake
in a new sumo-git folder (reunzipped somewhere else) so to
restart and the first reconfigurations says this:
The C
compiler identification is MSVC 19.14.26429.4
The CXX
compiler identification is MSVC 19.14.26429.4
Check
for working C compiler: C:/Program Files (x86)/Microsoft
Visual
Studio/2017/Community/VC/Tools/MSVC/14.14.26428/bin/Hostx86/x64/cl.exe
Check
for working C compiler: C:/Program Files (x86)/Microsoft
Visual
Studio/2017/Community/VC/Tools/MSVC/14.14.26428/bin/Hostx86/x64/cl.exe
-- works
Detecting
C compiler ABI info
Detecting
C compiler ABI info - done
Check
for working CXX compiler: C:/Program Files (x86)/Microsoft
Visual
Studio/2017/Community/VC/Tools/MSVC/14.14.26428/bin/Hostx86/x64/cl.exe
Check
for working CXX compiler: C:/Program Files (x86)/Microsoft
Visual
Studio/2017/Community/VC/Tools/MSVC/14.14.26428/bin/Hostx86/x64/cl.exe
-- works
Detecting
CXX compiler ABI info
Detecting
CXX compiler ABI info - done
Detecting
CXX compile features
Detecting
CXX compile features - done
CMAKE_BUILD_TYPE:
Release
CMAKE_BINARY_DIR:
C:/Users/stefa/SUMOproject/sumo-git/build/CMVisual17
CMAKE_SOURCE_DIR:
C:/Users/stefa/SUMOproject/sumo-git
Platform:
Host:
Windows10.0.17134AMD64
CMake:
3.11.2
CMake
generator: Visual Studio 15 2017 Win64
CMake
build tool: C:/Program Files (x86)/Microsoft Visual
Studio/2017/Community/MSBuild/15.0/Bin/MSBuild.exe
MSVC:
1914
Using 64
bit libraries from SUMO_LIBRARIES placed in C:/libraries
Found
PythonInterp: C:/Python27/python.exe (found version
"2.7.15")
Looking
for pthread.h
Looking
for pthread.h - not found
Found
Threads: TRUE
Found
XercesC:
optimized;C:/libraries/xerces-c-3.2.0_64/lib/xerces-c_3.lib;debug;C:/libraries/xerces-c-3.2.0_64/lib/xerces-c_3D.lib
(found version "3.2.0")
Found
Proj: C:/libraries/proj_gdal-1911_64/lib/proj_i.lib
Found
GDAL: C:/libraries/proj_gdal-1911_64/lib/gdal_i.lib
Found
osgGA: C:/libraries/OSG-3.4.0_64/lib/osgGA.lib
Found
osgViewer: C:/libraries/OSG-3.4.0_64/lib/osgViewer.lib
Found
osgUtil: C:/libraries/OSG-3.4.0_64/lib/osgUtil.lib
Found
osgDB: C:/libraries/OSG-3.4.0_64/lib/osgDB.lib
Found
osgText: C:/libraries/OSG-3.4.0_64/lib/osgText.lib
Found
osg: C:/libraries/OSG-3.4.0_64/lib/osg.lib
Found
OpenThreads: C:/libraries/OSG-3.4.0_64/lib/OpenThreads.lib
Found
OpenSceneGraph:
optimized;C:/libraries/OSG-3.4.0_64/lib/osgGA.lib;debug;C:/libraries/OSG-3.4.0_64/lib/osgGAd.lib;optimized;C:/libraries/OSG-3.4.0_64/lib/osgViewer.lib;debug;C:/libraries/OSG-3.4.0_64/lib/osgViewerd.lib;optimized;C:/libraries/OSG-3.4.0_64/lib/osgUtil.lib;debug;C:/libraries/OSG-3.4.0_64/lib/osgUtild.lib;optimized;C:/libraries/OSG-3.4.0_64/lib/osgDB.lib;debug;C:/libraries/OSG-3.4.0_64/lib/osgDBd.lib;optimized;C:/libraries/OSG-3.4.0_64/lib/osgText.lib;debug;C:/libraries/OSG-3.4.0_64/lib/osgTextd.lib;optimized;C:/libraries/OSG-3.4.0_64/lib/osg.lib;debug;C:/libraries/OSG-3.4.0_64/lib/osgd.lib;optimized;C:/libraries/OSG-3.4.0_64/lib/OpenThreads.lib;debug;C:/libraries/OSG-3.4.0_64/lib/OpenThreadsd.lib
(found suitable version "3.4.0", minimum required is
"3.4.0")
Found
GL2PS: C:/libraries/gl2ps-1.4.0_64/Release/gl2ps.lib
Found
SWIG: C:/libraries/swigwin-3.0.12/swig.exe (found version
"3.0.12")
Could
NOT find PkgConfig (missing: PKG_CONFIG_EXECUTABLE)
C:/libraries/grpc-1.10.0_64/Debug/grpc++.lib
C:/libraries/grpc-1.10.0_64/include
Found
GRPC: C:/libraries/grpc-1.10.0_64/Debug/grpc++.lib
Found
Protobuf:
;C:/libraries/gl2ps-1.4.0_64/Release;C:/libraries/grpc-1.10.0_64/Debug;C:/libraries/grpc-1.10.0_64/Release;C:/libraries/protobuf-3.5.1_64/cmake/Release/libprotobuf.lib
(found version "3.5.1")
Found
PythonLibs: C:/Python27/libs/python27.lib (found version
"2.7.15")
Could
NOT find Java (missing: Java_JAR_EXECUTABLE
Java_JAVAC_EXECUTABLE Java_JAVAH_EXECUTABLE
Java_JAVADOC_EXECUTABLE) (found version "1.8.0_171")
Could
NOT find JNI (missing: JAVA_AWT_LIBRARY JAVA_JVM_LIBRARY
JAVA_INCLUDE_PATH JAVA_INCLUDE_PATH2 JAVA_AWT_INCLUDE_PATH)
Enabled
features: Windows-10.0.17134 Proj GUI GDAL FFmpeg OSG GL2PS
SWIG GRPC
Configuring
done
While
again the generation message is the following:
CMake
Error in src/libsumo/CMakeLists.txt:
Cannot find source file:
C:/Users/stefa/SUMOproject/sumo-git/src/libsumo/libsumo.i
Tried extensions .c .C .c++ .cc .cpp .cxx .cu .m .M .mm .h
.hh .h++ .hm
.hpp .hxx .in .txx
CMake Error at
src/microsim/pedestrians/CMakeLists.txt:26 (add_library):
Cannot find source file:
MSPModel_Remote.cpp
Tried extensions .c .C .c++ .cc .cpp .cxx .cu .m .M .mm .h
.hh .h++ .hm
.hpp .hxx .in .txx
CMake Error at
unittest/src/utils/common/CMakeLists.txt:1 (add_executable):
Cannot find source file:
FileHelpersTest.cpp
Tried extensions .c .C .c++ .cc .cpp .cxx .cu .m .M .mm .h
.hh .h++ .hm
.hpp .hxx .in .txx
CMake Error at
src/microsim/pedestrians/CMakeLists.txt:26 (add_library):
No SOURCES given to target: microsim_pedestrians
CMake Error at
unittest/src/utils/common/CMakeLists.txt:1 (add_executable):
No SOURCES given to target: testcommon
And
again, unchecking that box it becomes:
CMake
Error at unittest/src/utils/common/CMakeLists.txt:1
(add_executable):
Cannot find source file:
FileHelpersTest.cpp
Tried extensions .c .C .c++ .cc .cpp .cxx .cu .m .M .mm .h
.hh .h++ .hm
.hpp .hxx .in .txx
CMake Error at
unittest/src/utils/common/CMakeLists.txt:1 (add_executable):
No SOURCES given to target: testcommon
Hi
Stefano
Do
you checked the option „CHECK_OPTIONAL_LIBS“ in CMake-GUI?
About
the JAVA Warnings, you can ignore it (Are related with the
JDK)
Regards
Thank you very much, I wait for a
response then. One thing I noticed that is different from
the log you sent me is this line:
Could
NOT find Java (missing: Java_JAR_EXECUTABLE
Java_JAVAC_EXECUTABLE Java_JAVAH_EXECUTABLE
Java_JAVADOC_EXECUTABLE) (found version "1.8.0_171")
I don’t
understand what it’s asking, is there anything I didn’t do?
Thanks again
Best regards
Stefano
Niero
Hi
Stefano,
Thanks
for the Information, I’m going to check and fix it.
Regards
If I
specify the whole sumofolder as it is shown in the picture
you showed me, as the folder containing the source I get
this when I configure:
CMAKE_BUILD_TYPE:
Release
CMAKE_BINARY_DIR:
C:/Users/stefa/CodeblocksProjects/sumo-git/build/CMake-build17
CMAKE_SOURCE_DIR:
C:/Users/stefa/CodeblocksProjects/sumo-git
Platform:
Host:
Windows10.0.17134AMD64
CMake:
3.11.2
CMake
generator: Visual Studio 15 2017 Win64
CMake
build tool: C:/Program Files (x86)/Microsoft Visual
Studio/2017/Community/MSBuild/15.0/Bin/MSBuild.exe
MSVC:
1914
Using 64
bit libraries from SUMO_LIBRARIES placed in C:/libraries
Found
Proj: C:/libraries/proj_gdal-1911_64/lib/proj_i.lib
Could
NOT find PkgConfig (missing: PKG_CONFIG_EXECUTABLE)
C:/libraries/grpc-1.10.0_64/Debug/grpc++.lib
C:/libraries/grpc-1.10.0_64/include
Could
NOT find Java (missing: Java_JAR_EXECUTABLE
Java_JAVAC_EXECUTABLE Java_JAVAH_EXECUTABLE
Java_JAVADOC_EXECUTABLE) (found version "1.8.0_171")
Could
NOT find JNI (missing: JAVA_AWT_LIBRARY JAVA_JVM_LIBRARY
JAVA_INCLUDE_PATH JAVA_INCLUDE_PATH2 JAVA_AWT_INCLUDE_PATH)
Enabled
features: Windows-10.0.17134 Proj GUI GDAL FFmpeg OSG GL2PS
SWIG GRPC
Configuring
done
But when I go on generating it
tells me “Error in generation process, the project files may
be invalid” adding the following code to the previous one:
CMake Error in
src/libsumo/CMakeLists.txt:
Cannot find source file:
C:/Users/stefa/CodeblocksProjects/sumo-git/src/libsumo/libsumo.i
Tried extensions .c .C .c++ .cc .cpp .cxx .cu .m .M .mm .h
.hh .h++ .hm
.hpp .hxx .in .txx
CMake Error at
src/microsim/pedestrians/CMakeLists.txt:26 (add_library):
Cannot find source file:
MSPModel_Remote.cpp
Tried extensions .c .C .c++ .cc .cpp .cxx .cu .m .M .mm .h
.hh .h++ .hm
.hpp .hxx .in .txx
CMake Error at
unittest/src/utils/common/CMakeLists.txt:1 (add_executable):
Cannot find source file:
FileHelpersTest.cpp
Tried extensions .c .C .c++ .cc .cpp .cxx .cu .m .M .mm .h
.hh .h++ .hm
.hpp .hxx .in .txx
CMake Error at
src/microsim/pedestrians/CMakeLists.txt:26 (add_library):
No SOURCES given to target: microsim_pedestrians
CMake Error at
unittest/src/utils/common/CMakeLists.txt:1 (add_executable):
No SOURCES given to target: testcommon
While I did not come across this problem if I specified
sumo/src folder as the folder containing the source code.
Hi
@Mirko
thanks for the extended explanation.
@Stefano
Can you send me the log obtained from cmake-gui after
generating the Visual Studio solution? (see cmake.png)
Regards
Thank you very much, I followed
these instructions but tells me several times the following
error this time:
|
Severity
|
Code
|
Description
|
Project
|
File
|
Line
|
Suppression
State
|
|
Error
|
C1083
|
Cannot
open include file: 'config.h': No such file or
directory
|
z_microsim_output
|
c:\program
files (x86)\microsoft visual
studio\2017\community\vc\tools\msvc\14.14.26428\include\windows_config.h
|
52
|
|
Preceeded
once by this one:
|
Severity
|
Code
|
Description
|
Project
|
File
|
Line
|
Suppression
State
|
|
Error
|
MSB6006
|
"cmd.exe"
exited with code 3.
|
generate-version-h
|
C:\Program
Files (x86)\Microsoft Visual
Studio\2017\Community\Common7\IDE\VC\VCTargets\Microsoft.CppCommon.targets
|
171
|
|
Although a
config.h file is actually present in the src folder (that is
the folder I told CMake to contain the source code). Even
though I copy config.h in the path that contains
windows_config.h, the the errors are that it can’t find
several other files. It’s like it is using a directory that
is different from the src one. Am I missing anything?
Thank you very much for the attention.
Stefano
Niero
Hi,
Pablo just explained the advised way to generate a MSVC
solution because DLR plans to scrap the preconfigured one in
the near future. Some other hints for you because I also had
some very uncomfortable time getting linker paths right some
months ago:
-
Be sure the librarie directories are listed in the Windows
"PATH" environment variable. If the directory mentioned
there is outdated, edit it and apply again.
-
Have a look at the MSVC macros (those with the Dollar sign).
The SUMO libraries should show up there with the correct
path.
-
open some project property sheet of the solution
(Solution Explorer > RMC on project > Properties)
-
go to Linker > General section and edit "Additional
Dependencies", view all macros by clicking the button
-
e.g. look for $(XERCES) value
Regards
Mirko
Am 28.05.2018 um 17:37 schrieb Stefano
Niero:
Hi,
Thank you for the answer. I am sorry but
I am not getting how I am supposed to use CMake for
compiling SUMO. I found in the source folder I downloaded,
the project file already done for visual studio in the
folder I mentioned, isn’t that correct? As far as I can
remember that was written in the instructions in the page
(although it did not mention the msvc17 folder) but I might
be wrong. May I ask you if it is possible to agree a call on
skype or a session through teamviewer, if that makes things
quicker?
Thank you very much
Stefano Niero
Hi
Sorry
for the problem with the Wiki, it’s not work due a Problem
with the GDPR. About your Problem with the SUMO Build:
- You need to use CMake for
compiling SUMO. It can generate a Solution for Visual
Studio 2017 quickly.
- About the problem with the
libraries, you can find all in this Project:
https://github.com/DLR-TS/SUMOLibraries
- For link all
libraries correctly, clone the SUMOLibraries project in
c:\ libraries, define the environment variable
SUMO_LIBRARIES with “c:\libraries”, and generate a VS
2017 solution using CMake-gui (If you need more help
with this step, I can help you)
- You need to put all
.dlls in the PATH for executing sumo, but this step can
be automatically done using the Script setPATH64.bat (in
your case, DON’T use setPATH32.bat).
- After defining the
environment variable SUMO_LIBRARIES, execute two times
the bat file setPATH64.bat of c:\libraries
All of this information
is in the SUMO Wiki, but while it don’t work, I can help
you thought Email.
Regards.
Hello,
I have been trying to build SUMO on my pc
which is a DELL 64bit with Windows 10 installed in order to
study it in debug mode. I had many problems in building the
program. I want to build the 64bit version using Microsoft
Visual Studio 2017. I used the prj file contained in
build\msvc17 then. At first I had problems in finding the
files contained in the fox/include library, I solved this
problem by copying them in the src folder. Secondly the
program kept on giving me Link errors because it would not
find the library: xerces-c-3.2.0-win64\lib\xerces-c_3D.lib.
I did not provide in the config.props any value for the
32bit libraries but in one of the several attempts I made,
this link problem disappeared when I introduced also the
value of the 32bit libraries, in this case the program is
built without error (although with 250 warnings) but once I
launch or debug the application the error that appears is
the following:
The
program '[8428] duarouterD.exe' has exited with code
-1073741701 (0xc000007b).
Whose code suggests architecture
incompatibility. What should I do?
Moreover SUMO wiki server is not working
so I cannot access it.
Thank you very much for the attention
Stefano Niero
_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user
