>As it
is, without an ARM-specific launch delegate, you probably selected the "EDC
Create Process (Windows)" launcher. That says to use Windows as the
>debug
target. So this is failing because Win32 can't run ELF. (Or, ARM
code, for that matter. ;)
>Again,
this kind of support is imminently possible, but not on our schedule right
now. If you're interested and want to work on it, we can
help!
Hi Ed,
Thanks for the
reply
.
But I have tried this with an
exe build with cygwin/Mingw .

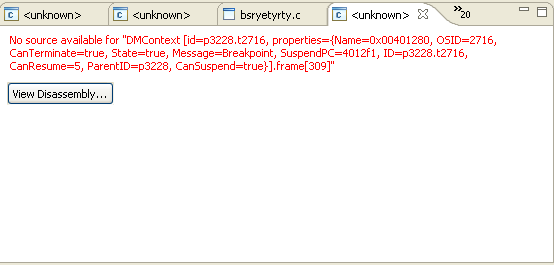

Thus I got the following
display on editor:
No source is available while
stepping. Can anyone tell me what is happening ?
From:
cdt-dev-bounces@xxxxxxxxxxx [mailto:cdt-dev-bounces@xxxxxxxxxxx] On Behalf
Of Ed.Swartz@xxxxxxxxx
Sent: Friday, March 12, 2010 7:37
PM
To: cdt-dev@xxxxxxxxxxx
Subject: RE: [cdt-dev]
Debugging with EDC
Hi
Bhavana,
>
Can anyone tell me whether remote debugging is supported using
EDC?
>
We want to debug the code running in ARM target using
gdbServer.
>
Can anyone tell me how this is possible using EDC?
>
Any help will be appreciated.
This
case is theoretically supported, since EDC is built on TCF and inherently
supports remote debugging. And, we have ARM support and gdbserver
support.
But as
of yet, we've only tested ARM on Symbian using the TRK protocol and
gdbserver on a Linux/x86 local system. We haven't yet done the gdbserver
ARM targeting pieces or tested a gdbserver/ARM
combination. And the gdbserver support has only been tested on the local
system so far and is bundled as a JAR.
To get
this working, we'd need to handle, e.g., copying/mapping files to the remote
system, launching the gdbserver agent remotely (and maybe changing it from a
JAR file to a C/C++ agent), wiring up the gdbserver agent with the ARM
targeting pieces, etc.
> I have imported a sample
elf program( build for ARM ,using arm-none-eabi-gcc) through
Import-àC/C++ Executable option
in Eclipse 3.6M5.
> Then I tried to debug it
using EDC create process Launcher, selected Win32 Debug Agent(TCP
10.1.11.75:1534(local running)) as TCF peer.
> But I got the following
error :
As it
is, without an ARM-specific launch delegate, you probably selected the "EDC
Create Process (Windows)" launcher. That says to use Windows as the debug
target. So this is failing because Win32 can't run ELF. (Or, ARM
code, for that matter. ;)
Again,
this kind of support is imminently possible, but not on our schedule right
now. If you're interested and want to work on it, we can
help!
--
Ed
From: Bhavana Babu
[mailto:bhavana.babu@xxxxxxxxxxxxx]
Sent: Friday, March 12, 2010
4:08 AM
To: cdt-dev@xxxxxxxxxxx
Subject: [cdt-dev]
Debugging with EDC
Hi all,
I have imported a sample elf
program( build for ARM ,using arm-none-eabi-gcc) through Import-àC/C++ Executable option in Eclipse
3.6M5.
Then I tried to debug it using
EDC create process Launcher, selected Win32 Debug Agent(TCP
10.1.11.75:1534(local running)) as TCF peer.
But I got the following error
:
Error in final launch
sequence.
org.eclipse.core.runtime.CoreException:
TCF error report:
Command: Processes start
"", "C:\\Simple.elf", ["C:\\Simple.elf"],
["USERPROFILE=...
Time: 2010-03-12
14:58:55.415
Error text: Unknown
error
Error code:
1
Alt code:
193
Alt org:
POSIX
Can anyone help
me
Thanks in
advance ,
Bhavana
