Hi Team,



I recently switched from Vanilla Postgres to Postgres + TimescaleDB (V2.15) using Volttron’s SQLHistorian Agent  for my 5 second resolution data. I have queries in Grafana that aggregate this 5 second data to various resolutions (1m, 5m, or 15m) depending on how long of a period you are viewing. These aggregations are pretty slow, so I would like to move to the next step of using TimescaleDB’s continuous aggregation feature to improve performance when querying this aggregated data. I know Andrew Rogers has success using this, so im hoping for a little direction on how to proceed.

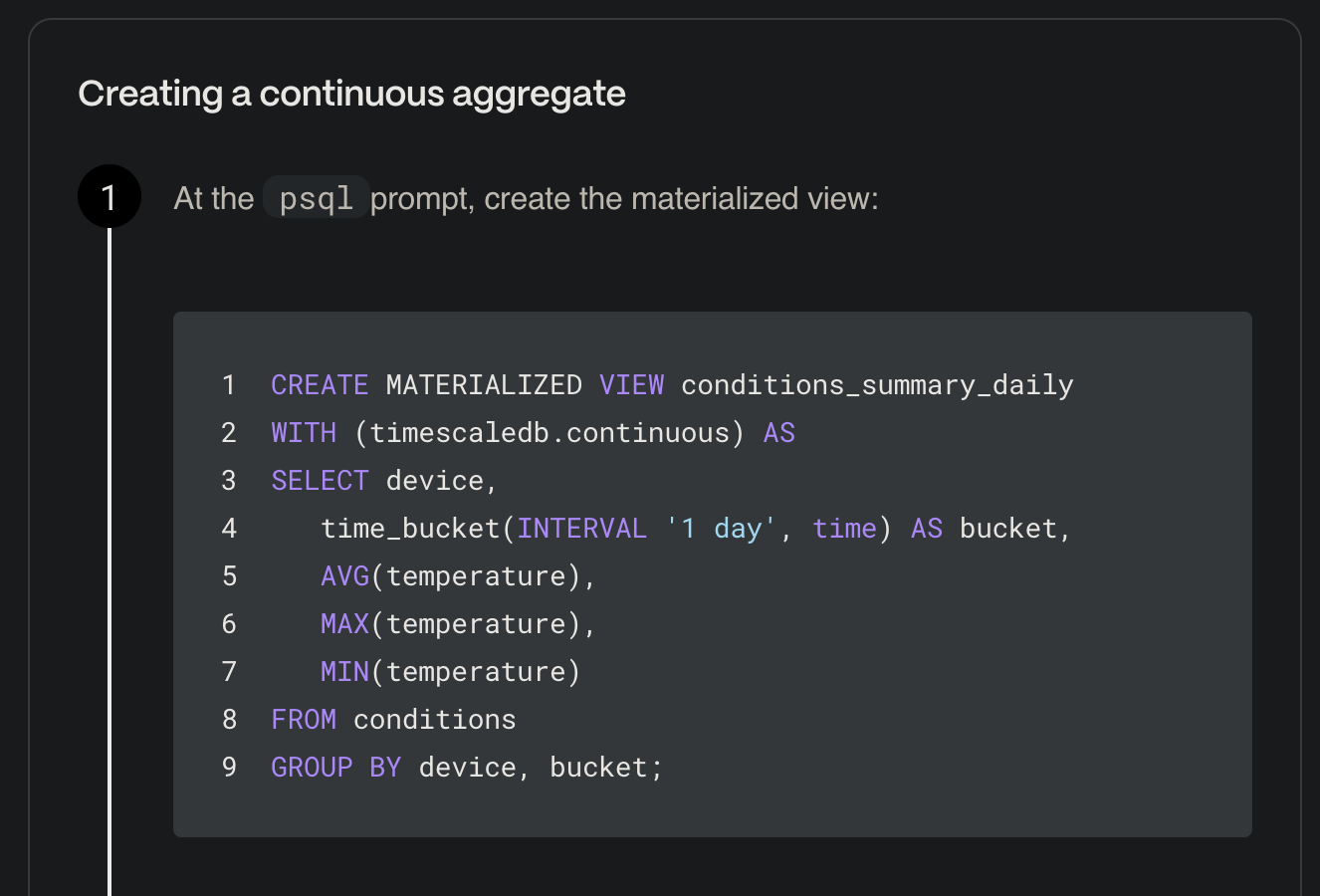

Looking at the Timescale documentation (below) it seems like it should be pretty straight forward to create one of these continuous aggregations but, given the default structure of the “data” hypertable created by Volttron in my database, I am hung up on how to structure the query to create the continuous aggregation.





For example, my hypertable has the structure of the default Volttron Postgres schema (e.g. ts, topic_id, value_string):



enervenue_stac_bison=# SELECT * FROM timescaledb_information.hypertables;

 hypertable_schema | hypertable_name |   owner        | num_dimensions | num_chunks | compression_enabled | tablespaces

-------------------            +-----------------         +----------      +----------------          +------------        +---------------------            +-------------

 public                              | data                             | ener_volt.  |              1                     |         13                | f                                             |





enervenue_stac_bison=# SELECT * FROM data ORDER BY ts DESC LIMIT 200;

             ts                                              |  topic_id | value_string

----------------------------                +----------+--------------

 2024-09-19 21:30:40.543855 |       46 | 64.6

 2024-09-19 21:30:40.543855 |       47 | 64.8

 2024-09-19 21:30:40.543855 |       48 | 64.7

 2024-09-19 21:30:40.543855 |       49 | 503.3

 2024-09-19 21:30:40.543855 |       50 | 504.0

 2024-09-19 21:30:40.543855 |       51 | 503.8

 2024-09-19 21:30:40.543855 |       52 | 290.7

 2024-09-19 21:30:40.543855 |       53 | 290.7

 2024-09-19 21:30:40.543855 |       54 | 291.1

 2024-09-19 21:30:40.543855 |       55 | 56200

 2024-09-19 21:30:40.543855 |       56 | 60.0

 2024-09-19 21:30:40.543855 |       57 | 56200

 2024-09-19 21:30:40.543855 |       58 | -2200

 2024-09-19 21:30:40.543855 |       59 | 1.0

 2024-09-19 21:30:40.543855 |       60 | 174935245400

 2024-09-19 21:30:40.543855 |       61 | 76.6

 2024-09-19 21:30:40.543855 |       62 | 744.3

 2024-09-19 21:30:40.543855 |       63 | 57000

 2024-09-19 21:30:40.543855 |       64 | 58.92

 2024-09-19 21:30:40.543855 |       65 | 64.79

 2024-09-19 21:30:40.543855 |       66 | 9

 2024-09-19 21:30:40.543855 |       67 | 11

 2024-09-19 21:30:40.543855 |       68 | 786432

 2024-09-19 21:30:40.543855 |       69 | 4294967295

 2024-09-19 21:30:40.543855 |       70 | 0

 2024-09-19 21:30:40.543855 |       71 | 0

 2024-09-19 21:30:40.543855 |       72 | 0

 2024-09-19 21:30:40.543855 |       73 | 0

 2024-09-19 21:30:40.543855 |       74 | 124700

 2024-09-19 21:30:40.543855 |       75 | 995.0

 2024-09-19 21:30:40.543855 |       76 | 700.0

 2024-09-19 21:30:40.543855 |       77 | 124700

 2024-09-19 21:30:40.543855 |       78 | 124700

 2024-09-19 21:30:40.543855 |       79 | 0

 2024-09-19 21:30:40.543855 |       80 | 449

 2024-09-19 21:30:40.543855 |       81 | 1.0

 2024-09-19 21:30:40.543855 |       82 | 0

 2024-09-19 21:30:40.543855 |       83 | 0

 2024-09-19 21:30:40.543855 |       84 | 124700

 2024-09-19 21:30:40.543855 |       85 | 100

 2024-09-19 21:30:40.543855 |       86 | 117

 2024-09-19 21:30:40.543855 |       87 | 0

 2024-09-19 21:30:40.543855 |       88 | 0

 2024-09-19 21:30:40.543855 |       89 | 0

 2024-09-19 21:30:40.543855 |       90 | 175.0

 2024-09-19 21:30:40.543855 |       91 | 175.0

 2024-09-19 21:30:40.543855 |       92 | 3

 2024-09-19 21:30:40.543855 |       93 | 950.0

 2024-09-19 21:30:40.543855 |       94 | 16423

 2024-09-19 21:30:40.218954 |      141 | 124.4

 2024-09-19 21:30:40.218954 |      142 | 124.7

 2024-09-19 21:30:40.218954 |      143 | 9.1

 2024-09-19 21:30:40.218954 |      144 | 86.1

 2024-09-19 21:30:40.218954 |      145 | 215.6

 2024-09-19 21:30:40.218954 |      146 | 123.5

 2024-09-19 21:30:40.218954 |      147 | 117.6

 2024-09-19 21:30:40.218954 |      148 | 15.2

 2024-09-19 21:30:40.218954 |      149 | 5.3

 2024-09-19 21:30:40.218954 |      150 | 4.9

 2024-09-19 21:30:40.218954 |      151 | 0

 2024-09-19 21:30:40.218954 |      152 | 3.4

 2024-09-19 21:30:40.218954 |      153 | 89.5

 2024-09-19 21:30:40.218954 |      154 | 100.0

 2024-09-19 21:30:40.218954 |      155 | 60.0

 2024-09-19 21:30:40.218954 |      156 | -0.6

 2024-09-19 21:30:40.218954 |      157 | 0

 2024-09-19 21:30:40.218954 |      158 | 0

 2024-09-19 21:30:40.218954 |      159 | -0.1

 2024-09-19 21:30:40.218954 |      160 | -0.3

 2024-09-19 21:30:40.218954 |      161 | -0.6

 2024-09-19 21:30:40.218954 |      162 | 0

 2024-09-19 21:30:40.218954 |      163 | -0.1

 2024-09-19 21:30:40.218954 |      164 | 0.7

 2024-09-19 21:30:40.218954 |      165 | 0.6

 2024-09-19 21:30:40.218954 |      166 | 0

 2024-09-19 21:30:40.218954 |      167 | 1.1

 2024-09-19 21:30:40.218954 |      168 | -86.3

 2024-09-19 21:30:40.218954 |      169 | 6.0

 2024-09-19 21:30:40.218954 |      170 | 100.0



It’s not clear to me how I need to adjust the continuous aggregation creation query from the documentation to create the continuous aggregation from my hypertable.



Can someone please share their experience with setting this up? To put all my questions in one place:

  • Is it possible to apply continuous aggregations directly to this Volttron created “data” table or do I need to have a more custom structure to this data to leverage continuous aggregations?
  • Technically, aren’t all the “value_string” values strings? Does this cause trouble with the continuous aggregations?
  • I would really like to create these continuous aggregations across all 186 topics in my database, not just for select columns like the documentation example seems to do. Is this possible?



Thank you!



Joe Thompson

Technical Leader

Electric Power Research Institute

Energy Storage and Distributed Generation

(912) 663-3407
