Re: [sumo-user] Acceleration lanes and weaving sections
Good evening,

Thank you very much for the simulations you sent. The weaving behavior shown is exactly what I want to reproduce.

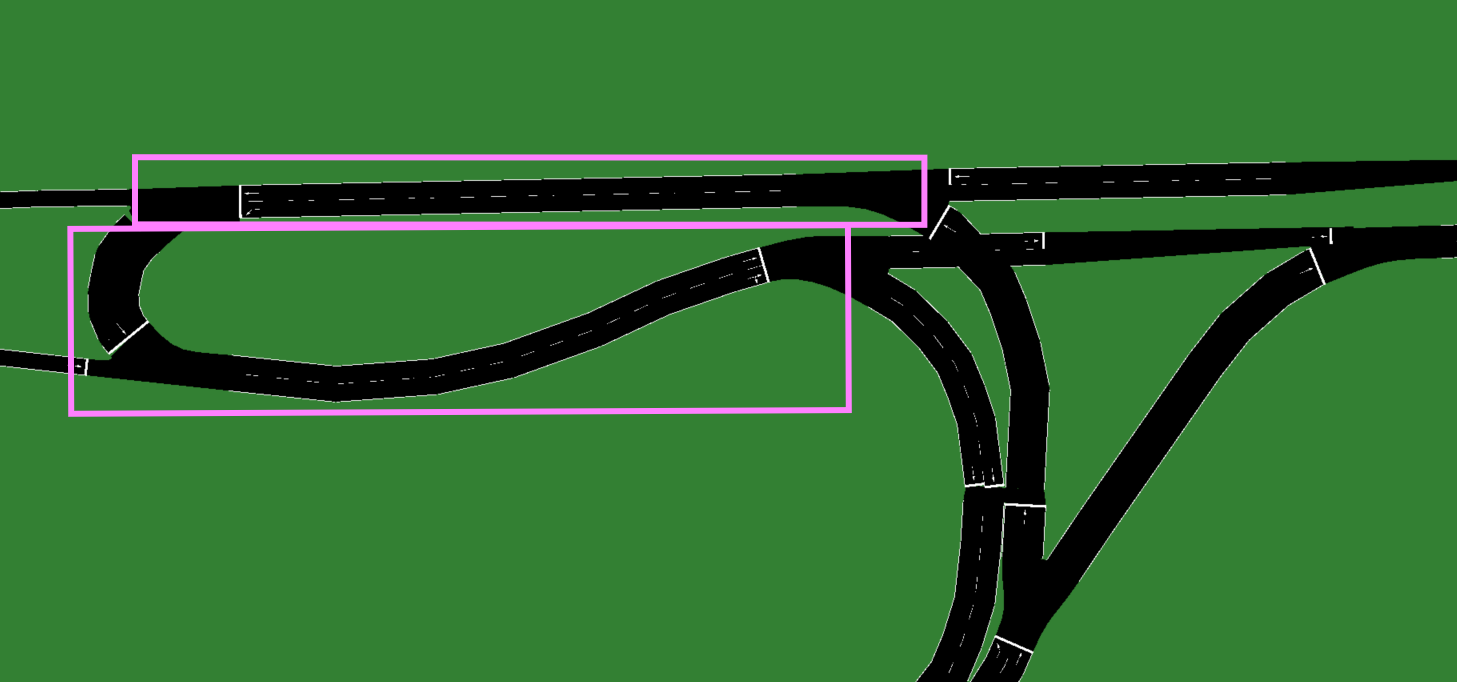

In the attached simulations, there are two weaving sections.
Drivers on the main road are yielding the right-of-way to vehicles attempting to weave. I would like to prevent this; instead, I want them to stop—if necessary—and wait for a gap.
I have other simulations where similar situations occur, such as in acceleration lanes.

Sds,

Pedro Oliveira


Não contém vírus.www.avast.com

Em ter., 18 de ago. de 2026 às 03:18, Jakob Erdmann <namdre.sumo@xxxxxxxxx> escreveu:
- examples for merging can be found at
- multiple test cases for weaving can be found at https://sumo.dlr.de/extractTest.php?path=sumo/lc_model/ramps/onoff_ramp
Generally speaking, it may help to exaggerate the length of the acceleration lane to increase realism in terms of merging without stopping.
Feel free to supply a modified test case to show the problem you are facing.

You can define lane-specific speeds via xml inputs and netedit:

regards,
Jakob

Am Fr., 31. Juli 2026 um 23:08 Uhr schrieb Pedro Oliveira via sumo-user <sumo-user@xxxxxxxxxxx>:
Good afternoon,

Some time ago, I sent an email asking about lane-changing models for intersections that feature acceleration lanes or weaving sections.
In general, I find it difficult to model weaving sections and acceleration lanes using SUMO.
The approach I’ve been using involves creating an extra lane and a junction connecting to the highway; however, this forces the vehicle to travel all the way to the end of the acceleration lane.
I would like to know if there is a way for the vehicle to travel along the lane and change lanes earlier if possible, or stop at the end.
While I'm at it, I’d also like to know if it is possible to set different speeds for specific lanes within the same edge.
I found this link (https://sumo.dlr.de/docs/Simulation/VehicleSpeed.html#edgelane_speed_and_speedfactor), but I didn't quite understand how to apply it or if that is the correct approach.

Thank you very much,

Have a great weekend.

Não contém vírus.www.avast.com
_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To unsubscribe from this list, visit https://www.eclipse.org/mailman/listinfo/sumo-user

Attachment: Weaving.rar
Description: application/compressed
