Re: [sumo-user] local line expansion

[Pedro Oliveira <pedro.engenhariae@xxxxxxxxx>]

Good morning! To align to the left, you can use the move icon and enable the option: "force geometry points". This way, you can align to the left.

Sds,

Pedro Oliveira

Em qui, 2 de abr de 2026 07:51, Saiki Kusuo via sumo-user <sumo-user@xxxxxxxxxxx> escreveu:

Hi there, I am a student and I am contracting a road with local line expansion

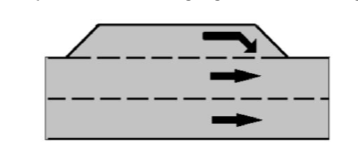

It means that I have 2 lines -> 3 lines -> 2 lines contractions

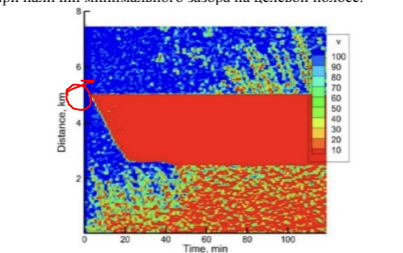

in real life this type of road creates huge traffic

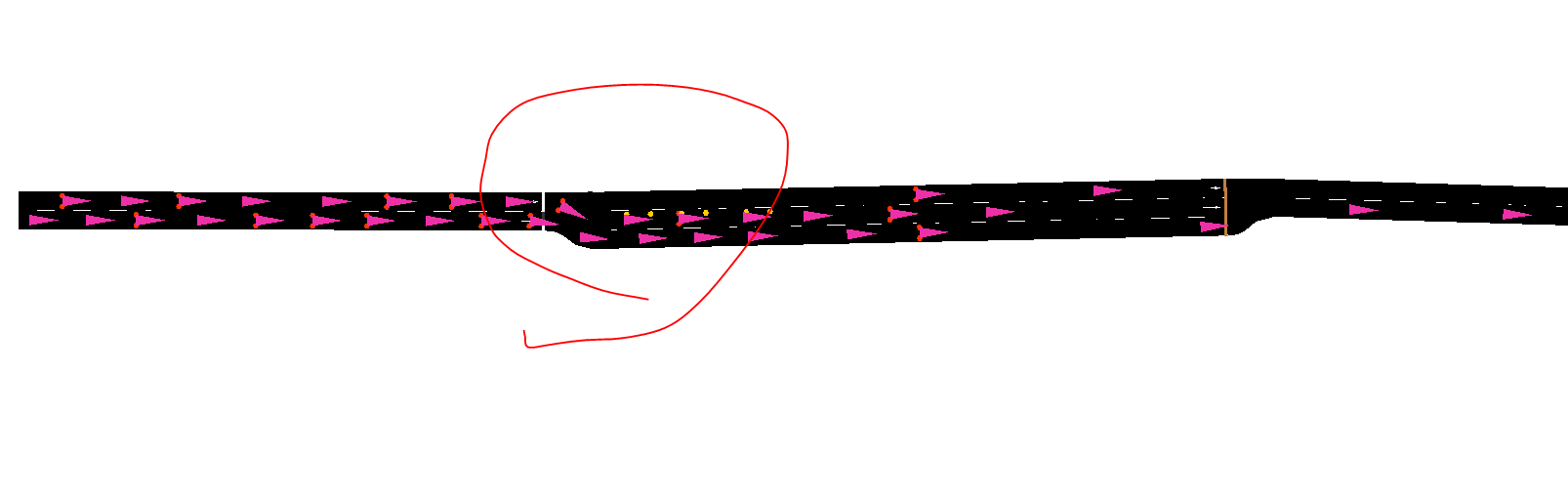

i pointed a spot where road goes from 2 lines back to two

so i am constructing this scenario in sumo
i already have added zipper
but i get a reversed result
the traffic adds on the left side
but it should on the right side

i tried to make a left line longer but it doesnt help and changing density doesnt help either
