Re: [sumo-user] desire lines

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

No. But you can convert your O-format matrix to trips and trips to tazRel with route2OD.py.

Am Fr., 26. Sept. 2025 um 19:24 Uhr schrieb Morgi Diva <nergaku.pop@xxxxxxxxx>:

Dear friend, your solution was great, thank you very much, just one question, instead of using tazrel in the netedit code, would it be possible to use The O-format (VISUM/VISSIM)

Em qua., 24 de set. de 2025 às 10:12, Jakob Erdmann <namdre.sumo@xxxxxxxxx> escreveu:

You can draw desire lines in netedit by converting your OD matrix to tazRelation format (https://sumo.dlr.de/docs/Demand/Importing_O/D_Matrices.html#tazrelation_format)

For a quick demo:

netgenerate --rand --rand.grid

tools/randomTrips.py -n net.net.xml -e 2:0:0 -r routes.rou.xml

tools/district/gridDistricts.py -n net.net.xml -o taz.xml -w 400

tools/route/route2OD.py -a taz.xml -r routes.rou.xml -o tazrel.xml

netedit -s net.net.xml -a taz.xml -d tazrel.xml

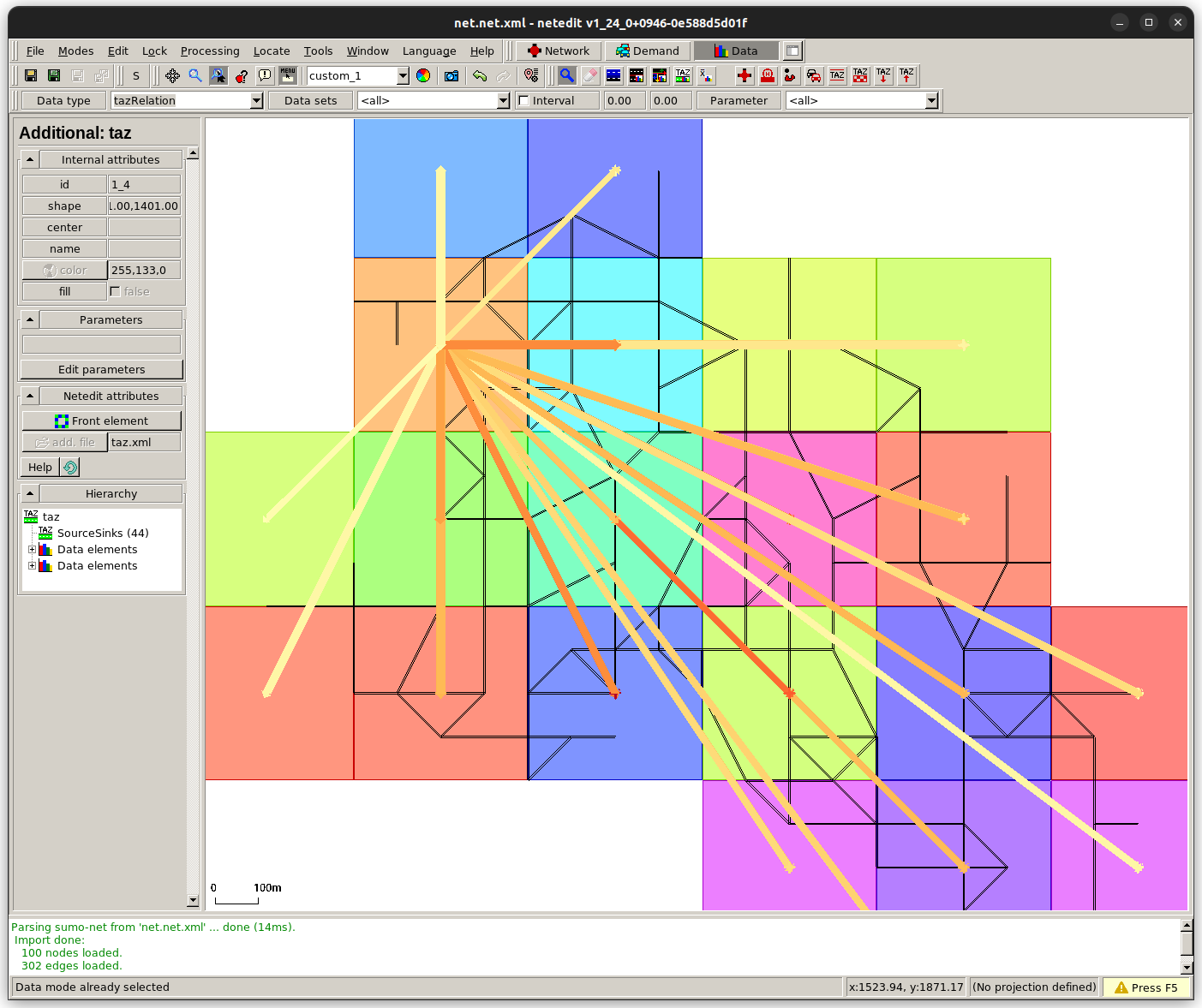

In netedit:

- use data mode (F4)

- configure data coloring by attribute 'count' (F9)

- click on a TAZ to have lines on only for that one

regards,

Jakob

Am Mi., 24. Sept. 2025 um 13:47 Uhr schrieb Morgi Diva via sumo-user <sumo-user@xxxxxxxxxxx>:

Hello Sumo friends,

My name is Morgana Roosevelt and I need help with a project. I simulated a road network here in the region using the Origin-Destination matrix and needed to obtain the desired lines.

Can anyone help me?
Does Sumo have this emulation function?

If so, where can I find it?

Thank you very much in advance.
