Re: [sumo-user] Unterminated comment error when using the route file generated by duarouter

Dear Dr. Jakob Erdmann,


Okay, I will also check the log out.


I am writing to contribute and share an experience related to this issue.

I found something suspicious about this and I found the (tentative) solution to this.

The (tentative) reason was that I have run multiple SUMO simulations in parallel with the SAME PATH for the route file.

To be specific, say I generated the route file by using `duarouter` and saved it on that single path for multiple simulations.

The point is that a single specified path for generating a route file via `duarouter` is used by multiple simulations.


After I fixed this issue, such errors no longer appeared (so far.)

Appreciate for giving us active responses and involving all discussions related to SUMO.


Best regards,
Bon


On Mon, Jan 13, 2025 at 3:23 PM Jakob Erdmann via sumo-user <sumo-user@xxxxxxxxxxx> wrote:
I can confirm that the file has no unterminated comments and I have no issue with fully loading it into a simulation.
My recommendation is to run sumo with option --log log.txt and then provide the log file.


Am Mo., 13. Jan. 2025 um 01:38 Uhr schrieb Bon Choe via sumo-user <sumo-user@xxxxxxxxxxx>:
Hi all,


I ran several simulations with the route file generated by duarouter but I have encountered the error intermittently as a following terminal message:

```
200.00 vehicles loaded.
0.00 vehicles discarded.
200.00 vehicles written.
Success.
Success.up to time step: 200.02
OV routes are randomly generated with weighted od matrix
Error: unterminated comment
 In file '/home/bon/LaneRPM/Trip/ODTrip/OVODroute_crowded.rou.xml'
 At line/column 21/1.
Traceback (most recent call last):
  File "/home/bon/LaneRPM/DQN/LaneRPM_RouteDQN_train.py", line 489, in <module>
    state, info = env.reset() # dict state
  File "/home/bon/LaneRPM/LaneRPM/rl/maskedRouteEnv.py", line 276, in reset
    traci.start(TRACI_CMD,label=self._env_config['label'])
  File "/home/bon/LaneRPM/.venv/lib/python3.10/site-packages/traci/main.py", line 147, in start
    result = init(sumoPort, numRetries, "localhost", label, sumoProcess, doSwitch, traceFile, traceGetters)
  File "/home/bon/LaneRPM/.venv/lib/python3.10/site-packages/traci/main.py", line 119, in init
    return con.getVersion()
  File "/home/bon/LaneRPM/.venv/lib/python3.10/site-packages/traci/connection.py", line 382, in getVersion
    result = self._sendCmd(command, None, None)
  File "/home/bon/LaneRPM/.venv/lib/python3.10/site-packages/traci/connection.py", line 232, in _sendCmd
    return self._sendExact()
  File "/home/bon/LaneRPM/.venv/lib/python3.10/site-packages/traci/connection.py", line 137, in _sendExact
    raise FatalTraCIError("Connection closed by SUMO.")
traci.exceptions.FatalTraCIError: Connection closed by SUMO.
Quitting (on error).
```

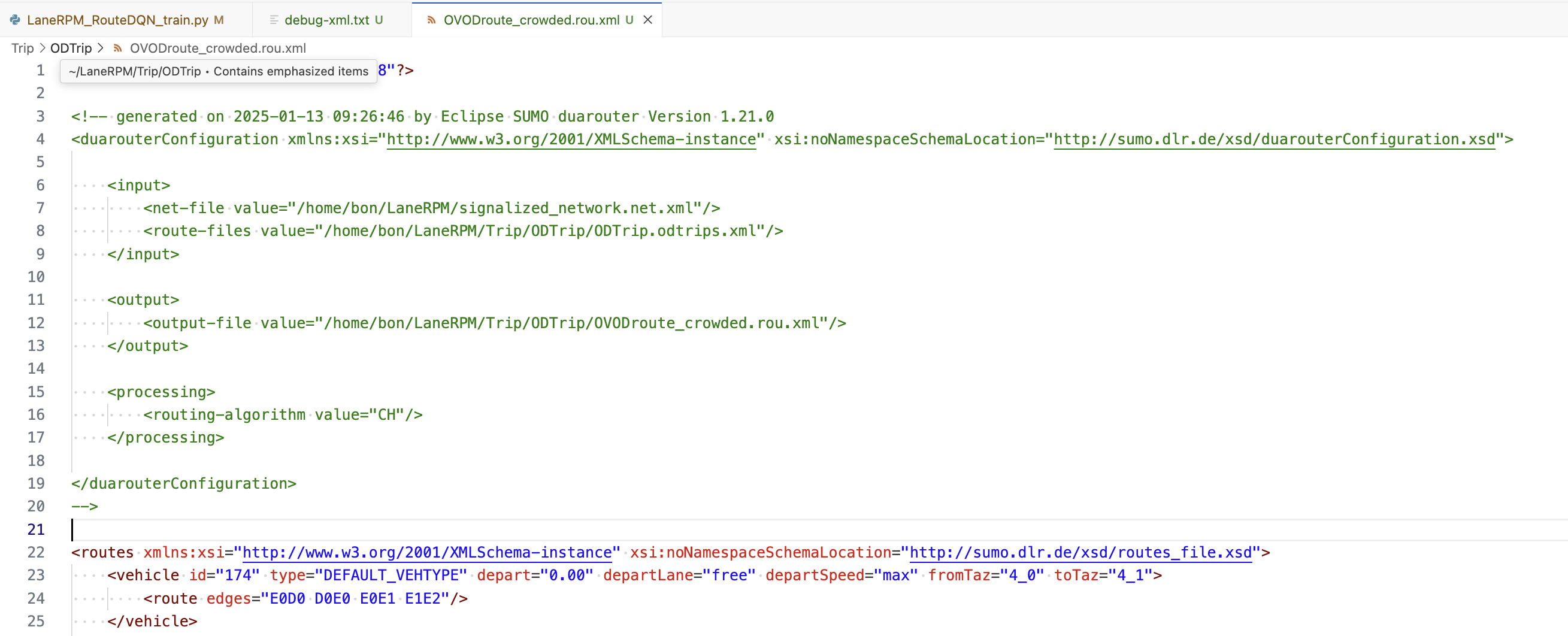

First of all, line 21, column 1 in the `.xml` route file generated by duarouter seems to have no trouble in terms of comment rule. (See the cursor position on below capture. This `.xml` file is also attached in this mail.) This is why I get trouble in debugging.

Though I thought the very immediate cause of my error was the `duarouter` that generated the `.xml` file, I will attach the method that I used for generating the route file for your information.
```
def OVRoute_crowded(
    n=500,
    pois = {
        '1_3': 0.3,
        '3_1': 0.3,
    },
    crowdedTo=True, # pois are destination if True, origin otherwise
):
    now = datetime.datetime.now()

    # Check p1 and p2 are properly set
    assert (isinstance(pois,dict)),\
        "Input argument `pois` should be a form of dict"
    assert (p >= 0 for p in pois.values()), \
        "All given probabilities should be non-negative"
    assert (sum(pois.values()) < 1), \
        "Given probabilities p1 or p2 is too high. They should be low such that p1 + p2 > 1"

    tazs = []
    for i in range(5):
        for j in range(5):
            tazs.append(f'{i}_{j}')

    tazWeights = {taz: \
        (pois[taz] if taz in pois.keys() \
         else (1 - sum(pois.values())) / (len(tazs) - len(pois))) \
        for taz in tazs}

    ods = {od: 0 for od in product(tazs, repeat=2)}

    for i in range(n):
        taz1 = random.choice(tazs)
        taz2 = random.choices(list(tazWeights.keys()),
                             weights=tazWeights.values())[0]
        while taz1 == taz2:
            taz1 = random.choice(tazs)
        if crowdedTo == True: # treat taz2 as destination
            ods[(taz1, taz2)] += 1
        else: # treat taz1 as destination
            ods[(taz2, taz1)] += 1

    with open(OD_CROWDED_FILE, 'w') as f:
            f.write(f'''<?xml version="1.0" encoding="UTF-8"?>

        <!-- generated on {now.strftime('%Y-%m-%d %H:%M:%S')} by OVRoute_crowded() from LaneRPM/utils.py -->

        <data xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/datamode_file.xsd">
        ''')
            f.write('    <interval id="DEFAULT_VEHTYPE" begin="0" end="1">\n')
            for od, value in ods.items():
                f.write(f'        <tazRelation from="{od[0]}" to="{od[1]}" count="{value}"/>\n')
            f.write(f'''    </interval>
        </data>''')

    cmds = [
        f'od2trips -v --taz-files {TAZ_FILE} --tazrelation-files {OD_CROWDED_FILE} -o {ODTRIP_FILE}',
        f'duarouter --net-file {NET_FILE} --route-files {ODTRIP_FILE} --routing-algorithm "CH" --output-file {OV_ODROUTE_CROWDED_FILE}',
    ]

    for cmd in cmds:
        subprocess.run(cmd,shell=True)
    custom_print('OV routes are randomly generated with weighted od matrix')

    return OV_ODROUTE_CROWDED_FILE
```

I am eager to resolve this error that kept disrupting my simulation.


Thank you for reading this lengthy mail.

Looking forward to hearing from you soon.


Best regards,
Bon
