Re: [sumo-user] View Traffic value on the link

It even works without running the simulation: https://sumo.dlr.de/docs/Tools/Routes.html#countedgeusagepy

Am Mo., 25. Nov. 2024 um 18:32 Uhr schrieb Mirko Barthauer via sumo-user <sumo-user@xxxxxxxxxxx>:

Hi,



you can colour the edges by several kinds of measures and display the corresponding numerical value using the visualisation settings of sumo-gui. First configure edgeData recording and then choose to colour the edges by (live) edgeData (select "left" as measure). Keep in mind that the value is related to the period you choose (not necessarily per hour)!



Best regards,

Mirko









-----Original-Nachricht-----

Betreff: [sumo-user] View Traffic value on the link

Datum: 2024-11-25T15:10:41+0100

Von: "Pedro Oliveira via sumo-user" <sumo-user@xxxxxxxxxxx>

An: "Sumo project User discussions" <sumo-user@xxxxxxxxxxx>







Good morning!

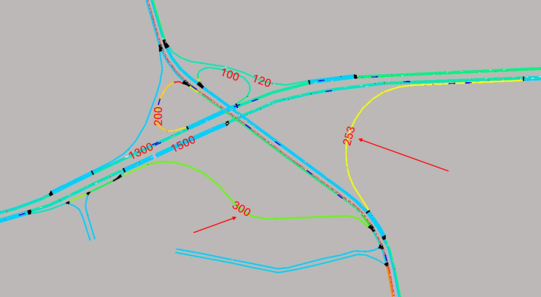

I would like to know if it is possible to print the simulation with the value of the traffic volume, it would be something like this.


Thank you very much for your attention.

Best regards,

Pedro Oliveira
