[sumo-user] dfrouter doesn't generate vehicle definitions

[Rehab Shahin <rehab.shahin@xxxxxxxxxx>]

Hi,

I have readings form observation points and I want to use dfrouter to generate the routes and vehicles.

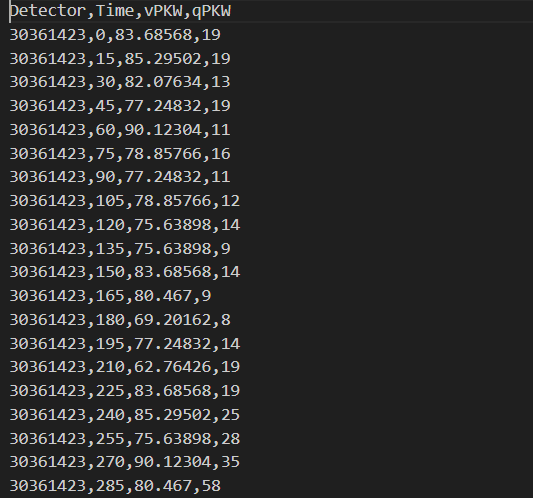

I have nine detectors, I created a detector file (a screenshot is attached), then I got the readings in the csv, adjusted the format so that it includes the detector id, time in minutes, avg. speed, and traffic volume. all detectors reading are combined in a single csv file. A sample is attached in a screenshot.
I ran the following command:

>dfrouter -n osm.net.xml -d add_detectors.add.xml -f  aggregated_meas.csv -o detector_routes.rou.xml --detectors-output det_out.xml --emitters-output  det_rou_veh.rou.xml

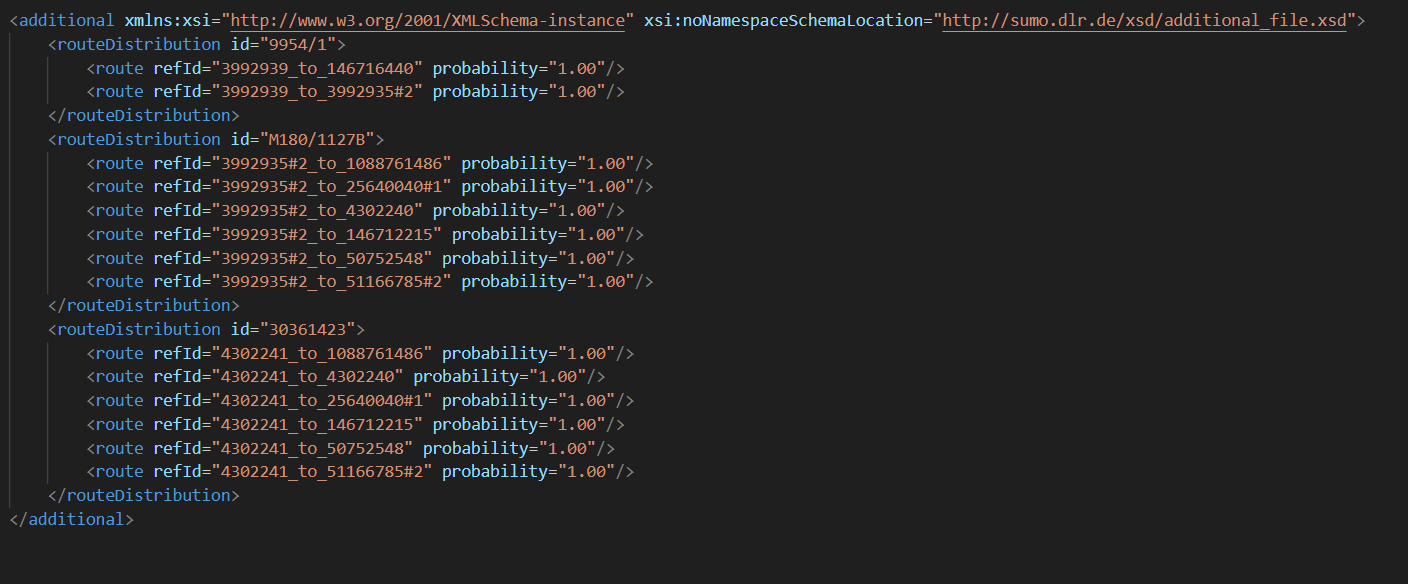

However the generated files include just routes and route distribution without vehicle definitions, a screenshot is attached. The generated detector file seems ok for me.

Can you help me with this?

thanks,

Rehab

Rehab Shahin

Research Engineer ‑ Transport Modelling and Simulation

rehab.shahin@xxxxxxxxxx

+44(0) 20 3514 1170

|

+1 (929) 265‑5193

Recipient of this year's ​King's Awards for Enterprise Innovation

This e-mail is to be treated as confidential and the information in it may not be used or disclosed except for the purpose for which it has been sent. If you have received it by mistake please let us know and delete it from your system. ​​​​E-mails are not secure and cannot be guaranteed to be error-free as they can be intercepted, amended, lost or destroyed, or contain viruses.
Hadean Supercomputing Ltd, is registered in England with number 09808169 and has its registered office 9 Appold St, London EC2A 2AP, UK

Attachment: Screenshot 2024-10-03 184806.png
Description: PNG image

Attachment: Screenshot 2024-10-03 185107.png
Description: PNG image

Attachment: Screenshot 2024-10-03 185521.png
Description: PNG image
