| Re: [sumo-user] [sumo-dev] 4 way stop intersection and traffic flow rule |
Dear Pallavi,
please look into points of interest in sumo-gui. You can load arbitrary raster images into the simulation.
Best regards
Mirko
-----Original-Nachricht-----
Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule
Datum: 2024-02-06T15:18:14+0100
Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>
An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>
Thank you for the clarification.
Thanks,Pallavi Zambare
On Mon, Feb 5, 2024 at 2:27 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:Hi Pallavi,

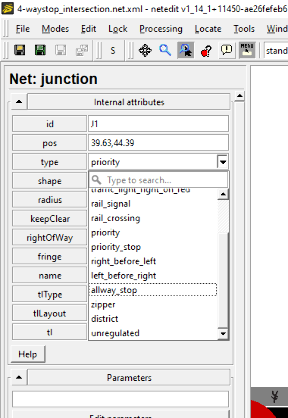

your intersection is still set to priority type. Please change the type as in the screenshot attached (and explained before). Regarding your other question:
You can define electric vehicles using the battery device. It is up to you which vehicle type settings you consider manual driving or automated...
Best regards
Mirko
-----Original-Nachricht-----
Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule
Datum: 2024-02-03T08:00:16+0100
Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>
An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>
I have attached my scenario.I have another question how to define different kinds of vehicles like Autonomous vehicles ,electrical vehicles and manual vehicles.PFA.
On Fri, Feb 2, 2024 at 1:14 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:Hi Pallavi,
can you send me your scenario? I think otherwise I won't be able to find the reason.
Best regards
Mirko
-----Original-Nachricht-----
Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule
Datum: 2024-02-01T16:52:09+0100
Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>
An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>
Hi MirkoI have created a scenario with 4 stop intersections and created 4 traffic flow routes (R1, R2, R3, R4).
In the simulation, all vehicles from r1 flow first. The other side vehicles are waiting for all vehicles to pass the vehicle from r1. it does not follow the 4-way stop rule, the first car to arrive at the intersection receives the right of way. It doesn’t matter where the vehicle is located or what direction it is traveling, this rule will always apply when someone has clearly arrived at the stop sign first.
Please let me know if I am doing anything wrong.
Thanks,
Pallavi
On Thu, Feb 1, 2024 at 3:20 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:Hi Pallavi,
I just tested an intersection with 4 way stop rule and several vehicles and to me it looked fine. What happens on your side? Can you describe better what exactly is wrong?
Best regards
Mirko
-----Original-Nachricht-----
Betreff: Re: [sumo-dev] 4 way stop intersection and traffic flow rule
Datum: 2024-02-01T08:21:54+0100
Von: "Pallavi zambare" <pzambare3@xxxxxxxxx>
An: "Mirko Barthauer" <m.barthauer@xxxxxxxxxxx>
Thanks for your reply.
I have created scenario that works with 4 vehicles but when I increase the traffic flow it doesn't work. it does not work as per the 4 way stop intersection rule.can you tell me how to write rules for that.Thanks and regardsPallavi
On Wed, Jan 31, 2024 at 2:22 AM Mirko Barthauer <m.barthauer@xxxxxxxxxxx> wrote:Hi,
we have this type of traffic rules among our intersection types. You can select the intersection in netedit inspect mode and set the "type" attribute to "allway_stop".
Best regards
Mirko
-----Original-Nachricht-----
Betreff: [sumo-dev] 4 way stop intersection and traffic flow rule
Datum: 2024-01-31T07:59:02+0100
Von: "Pallavi zambare via sumo-dev" <sumo-dev@xxxxxxxxxxx>
An: "sumo-dev@xxxxxxxxxxx" <sumo-dev@xxxxxxxxxxx>
Hi.
I am new with SUMO. I would like to simulate a non-signalised 4 way stop intersection .how to write rules for traffic.Help me in this regard!Thanks.
