Re: [sumo-user] Automatically add second sidewalk to one-way edges

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

In the latest development version (where https://github.com/eclipse/sumo/issues/13209 is fixed) you can do the following:

1. select all edges (assuming all your edges have a sidewalk)

2. right-click on a one-directional edge and select "add reverse direction"

3. invert the selection (this selects all the added edges)

4 use inspect mode to set numLanes for all selected edges to 1 (which keeps only the sidewalk)

regards,

Jakob

Am Mo., 8. Mai 2023 um 11:18 Uhr schrieb Alejandro Rodríguez Sánchez <alrodr25@xxxxxx>:

Hello,

Is there any way to add a second sidewalk at the left side of every one-way road in the network?

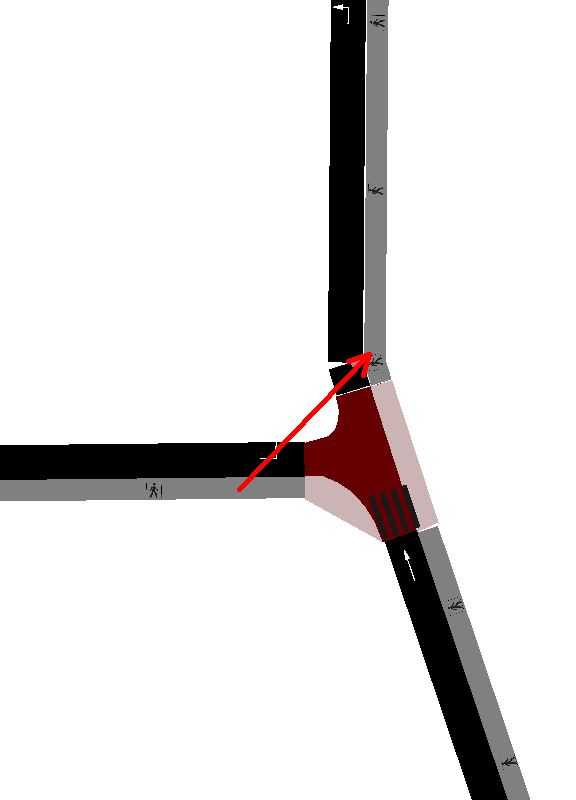

I am having troubles with pedestrian simulations in junctions like this one I show. The problem is the lack of sidewalks at the left sides of both edges, which are present in reality. And as my network has lots of edges, I would find useful a tool that creates those sidewalks automatically, instead of creating them one by one with netedit.

Kind regards,

Alejandro

--

Alejandro Rodríguez Sánchez

PhD student
CIEMAT // Universidad Complutense de Madrid
28040 Madrid
email: alrodr25@xxxxxx

Website: https://alexrsanchez.github.io/en/
